Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

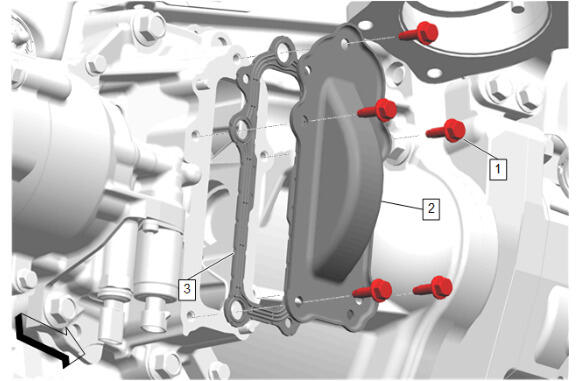

Power Take-Off Drive Link Cover Gasket (3) - Install
- Power Take-Off Drive Link Cover (2) - Install
- Power Take-Off Drive Link Cover Bolt (1) - Install And Tighten [5X] - Fastener Specifications
Transmission Heat Shield (2) - Install
- Transmission Heat Shield Bolt (1) - Install And Tighten [3X] - Fastener Specifications
- Remove The Support And Lower The Vehicle.
CAUTION:
Refer To Fastener Caution .
