Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

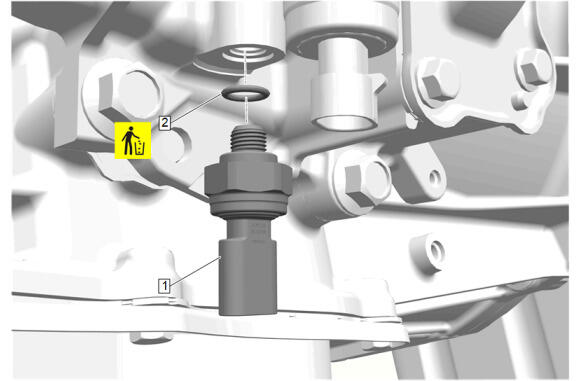

Automatic Transmission Fluid Pressure Sensor Seal (2) - Install New
- Automatic Transmission Fluid Pressure Sensor (1) - Install And Tighten - Fastener Specifications
- Connect The Automatic Transmission Fluid Pressure Sensor Electrical Connector.

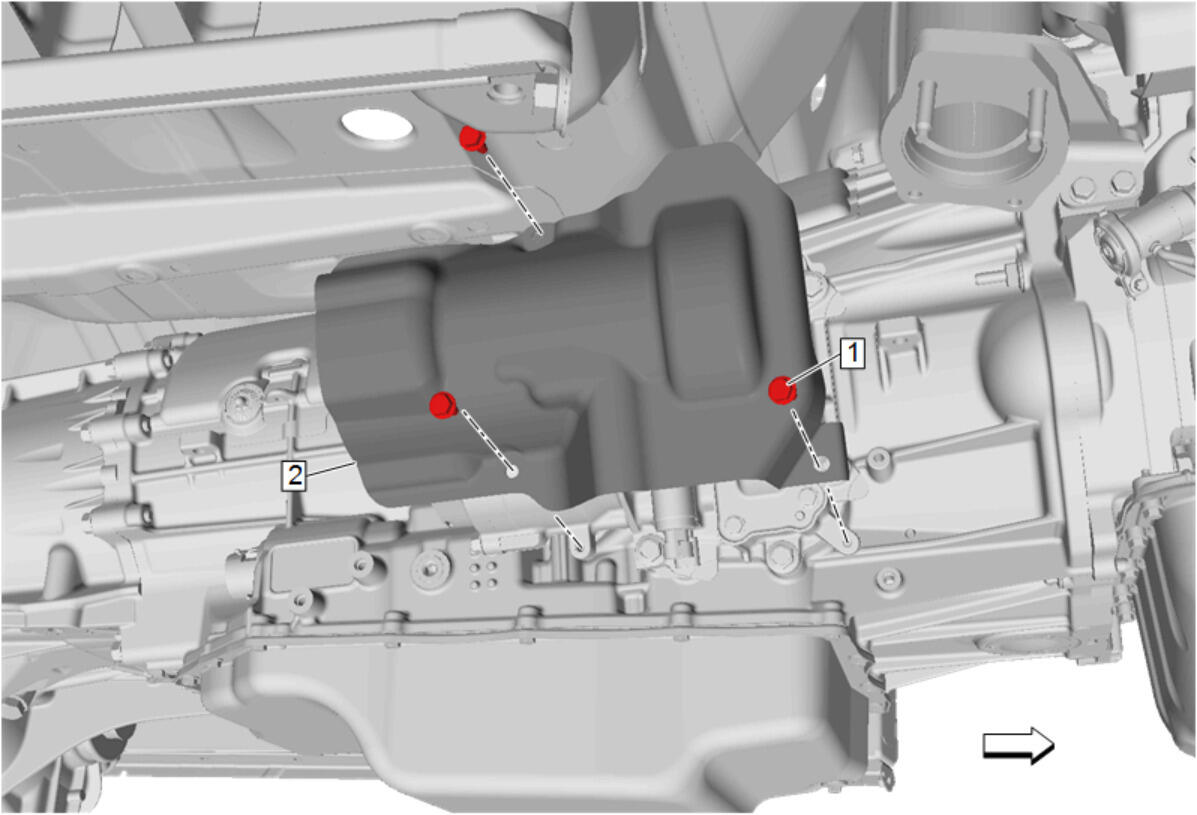

Transmission Heat Shield (2) - Install
- Transmission Heat Shield Bolt (1) - Install And Tighten [3X] - Fastener Specifications
- Remove The Support And Lower The Vehicle.
CAUTION:
Refer To Component Fastener Tightening Caution .
CAUTION:
Refer To Fastener Caution .
