Installation Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

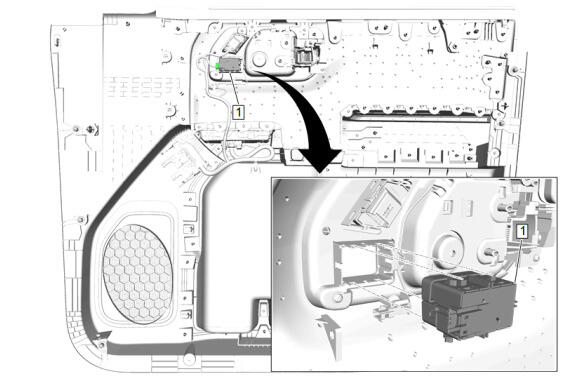

  1. GM5640048Courtesy of GENERAL MOTORS COMPANY

    Front Seat Adjuster Memory Switch (1) - Install

  2. Connect the electrical connector.

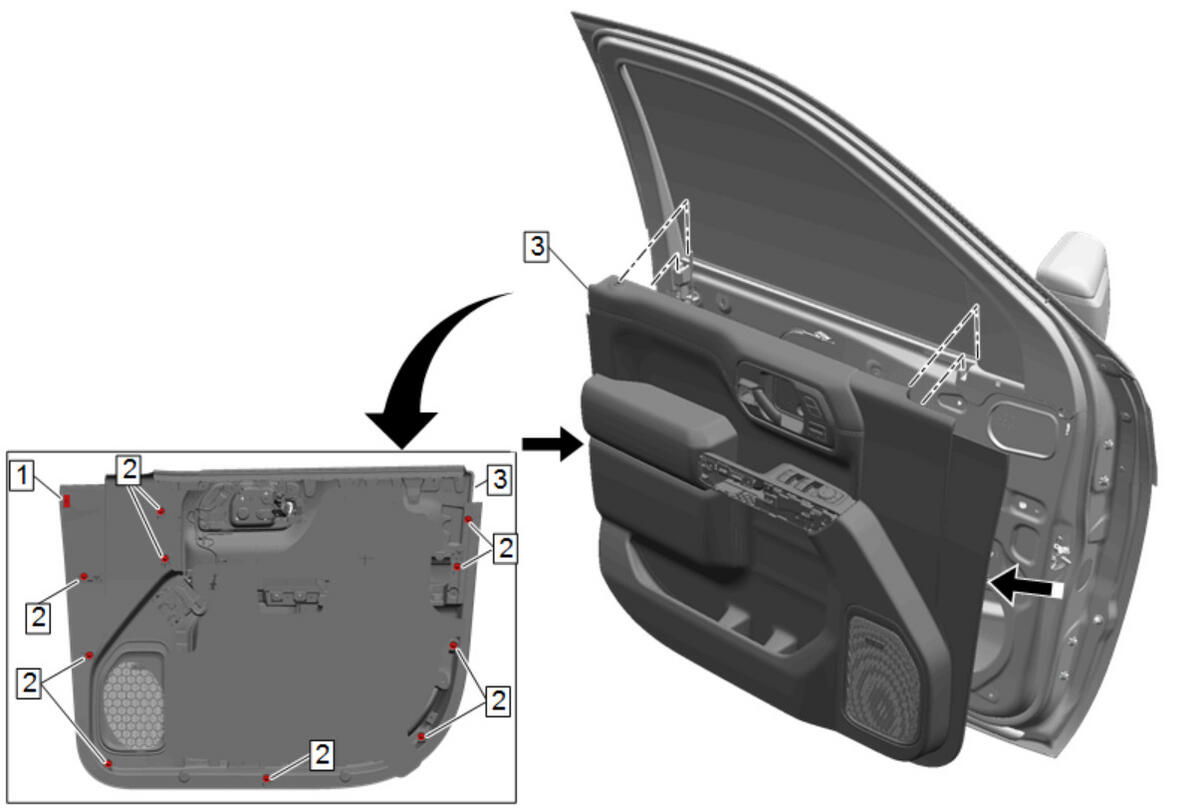

  3. GM5245450Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Trim (3) - Install - Front Side Door Trim Removal and Installation (Power) , or Front Side Door Trim Removal and Installation (Manual)
