Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts in the following chart represent components shown in graphic above.
Front Wheel Drive Shaft Bolt
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Wheel Drive Shaft Bolt [8x] | - | Yes | 100 N.m (74 lb ft) | Front Wheel Drive Half Shaft Replacement - Left Side (SRW) |
| Front Wheel Drive Half Shaft Replacement - Right Side (SRW) |
NOTE:

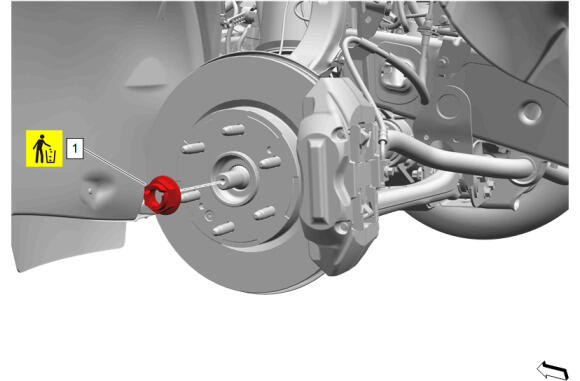

Callouts in the following chart represent components shown in graphic above.
Front Wheel Drive Shaft Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Wheel Drive Shaft Nut | Yes | - | First Pass: 330 N.m (244 lb ft) Second Pass: Loosen 45 degrees Final Pass: 270 N.m (199 lb ft) |
Front Wheel Drive Half Shaft Replacement - Left Side (SRW) |
| Front Wheel Drive Half Shaft Replacement - Right Side (SRW) |
