Trailer Tire Pressure Indicator Module Replacement: Removal

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. License Plate - Remove

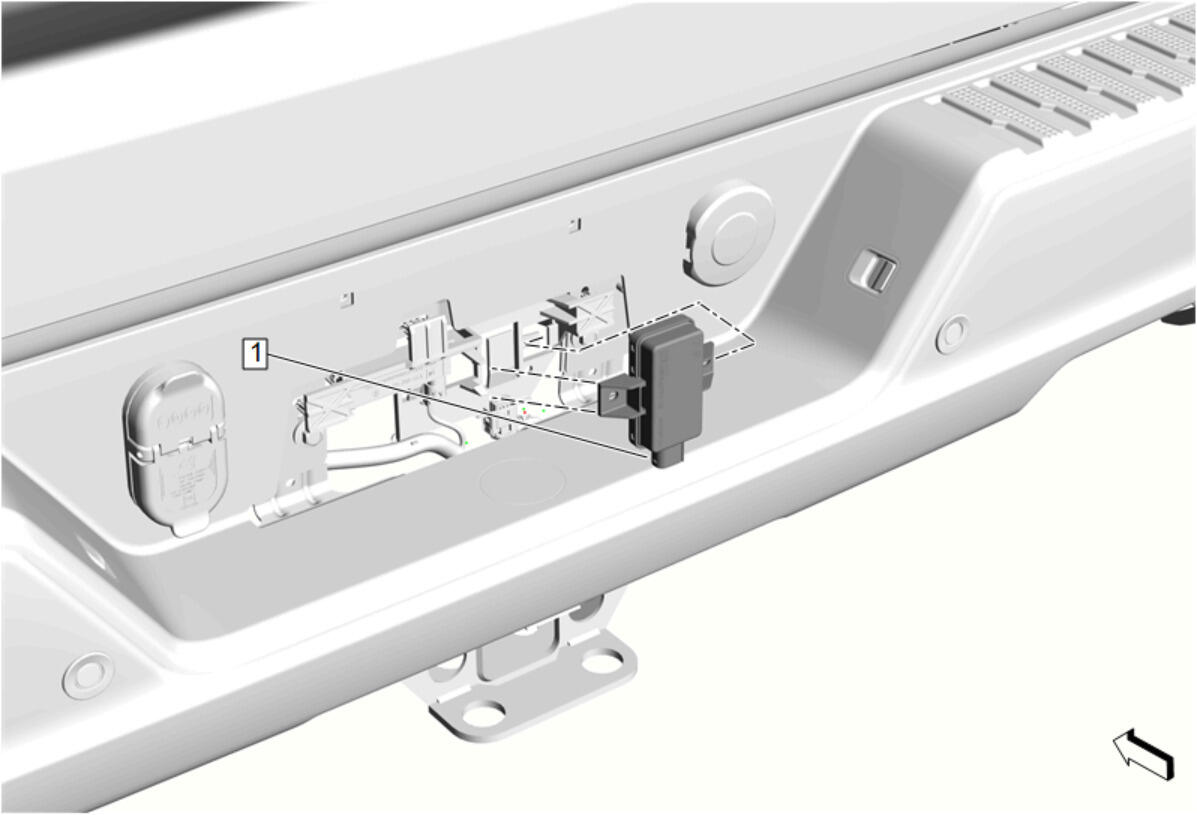

  2. GM4993643Courtesy of GENERAL MOTORS COMPANY

    Spread the retaining tabs and pivot the trailer tire pressure indicator module (1) from the low frequency rear bumper antenna bracket.

  3. Trailer Tire Pressure Indicator Module (1) - Remove
  4. Disconnect the electrical connector.
