Removal Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5002228Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  2. Instrument Panel Trim Plate (1) - Remove
  3. GM5001115Courtesy of GENERAL MOTORS COMPANY

    Move the front seat to access the retainers.

  4. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Remove
  5. Front Floor Console Extension Bolt (2) - Remove

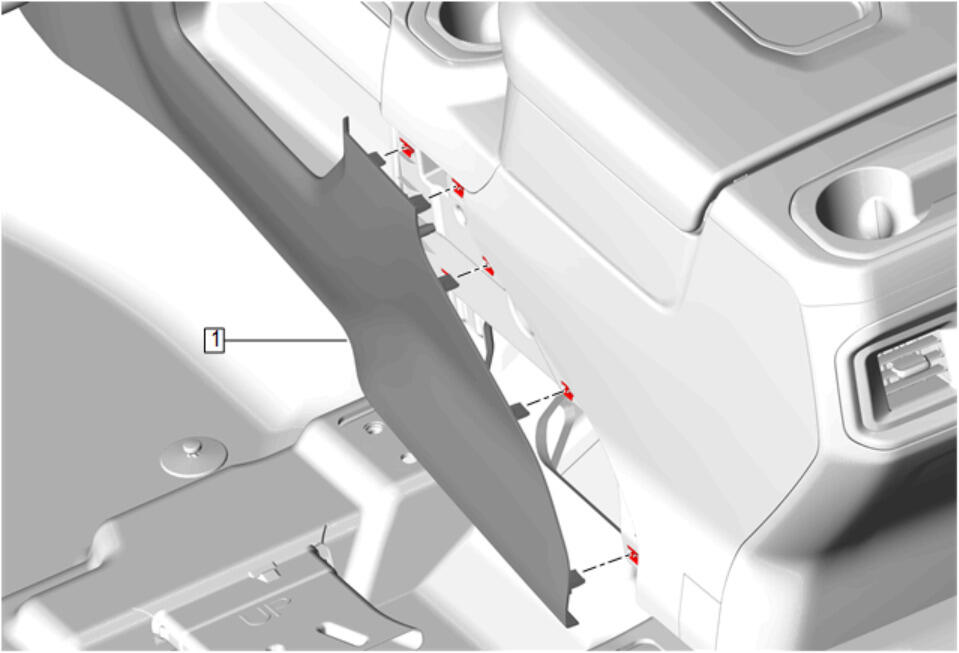

  6. GM5001117Courtesy of GENERAL MOTORS COMPANY

    Starting from the rear, use a flat bladed plastic trim tool to aid in the removal of the front floor console extension panel - left side (1) from the front floor console.

  7. GM5001118Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Remove

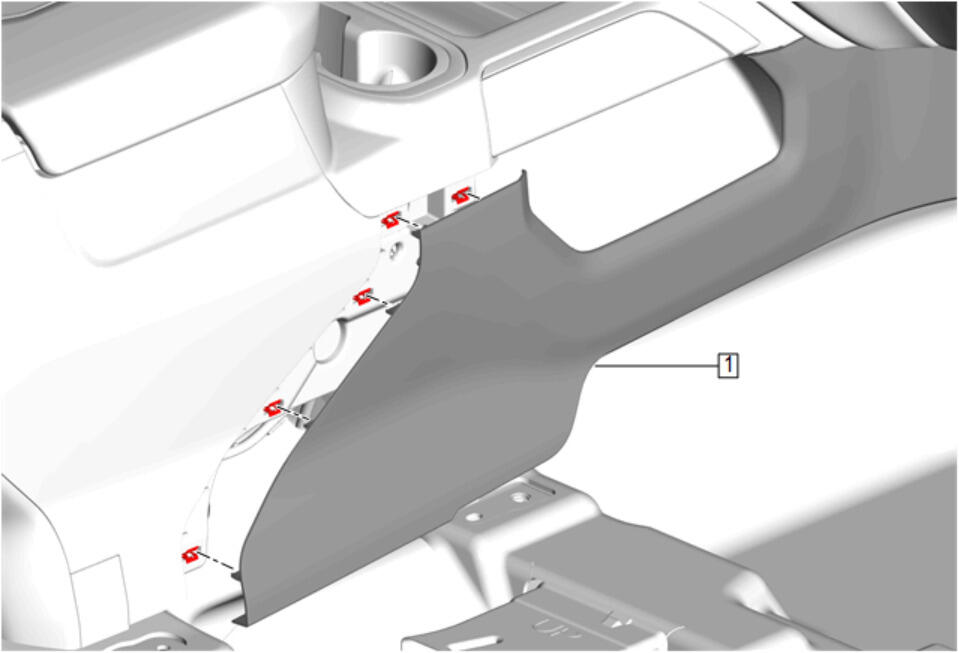

  8. GM5001351Courtesy of GENERAL MOTORS COMPANY

    Starting from the rear, use a flat bladed plastic trim tool to aid in the removal of the front floor console extension panel - right side (1) from the front floor console.

  9. GM5001353Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Remove

  10. GM5001420Courtesy of GENERAL MOTORS COMPANY

    Starting from the rear, use a plastic trim tool to release the retainer securing the front floor console cup holder trim plate (1) to the front floor console.

  11. Pull the front floor console cup holder trim plate (1) rearward to clear the instrument panel lower trim panel.
  12. Disconnect all electrical connectors.
  13. Front Floor Console Cup Holder Trim Plate (1) - Remove
  14. GM5001638Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  15. Instrument Panel Lower Trim Panel (1) - Remove
  16. GM5020720Courtesy of GENERAL MOTORS COMPANY

    Radio Control Bolt (1) - Remove [6x]

  17. Disconnect the electrical connectors.
  18. Radio Control (2) - Remove
  19. GM5023291Courtesy of GENERAL MOTORS COMPANY

    Hazard Warning Switch Housing Bolt (1) - Remove [4x]

  20. Hazard Warning Switch Housing (2) - Remove
  21. GM5023302Courtesy of GENERAL MOTORS COMPANY

    Release the retaining tabs.

  22. Vehicle Stability Control System Switch (1) - Remove
