Fastener Specifications

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

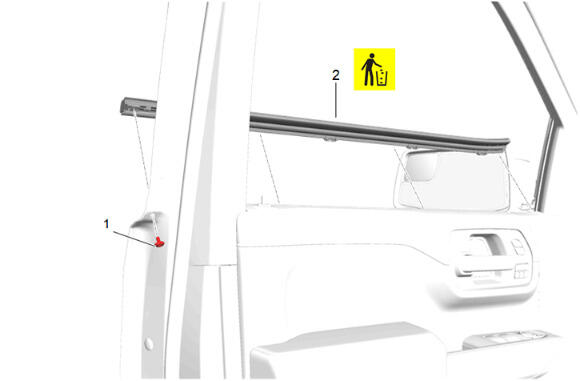

GM5661509Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Belt Reveal Molding Bolt - - 1.5 N.m (13 lb in) Front Side Door Window Belt Reveal Molding Replacement
2 Front Side Door Window Belt Reveal Molding Yes - - Front Side Door Window Belt Reveal Molding Replacement
GM5523603Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Side Door Window Channel Front Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Front Retainer Bolt [2x] - - 11 N.m (97 lb in) Front Side Door Window Channel Front Retainer Replacement
GM5523505Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Side Door Window Channel Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Retainer Bolt [2x] - Yes 11 N.m (97 lb in) Front Side Door Window Channel Retainer Replacement
GM5587493Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Side Door Window Frame Front Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Frame Front Applique Bolt [2x] - - 1.5 N.m (13 lb in) Front Side Door Window Frame Front Applique Replacement
GM5582534Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Side Door Window Frame Rear Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Frame Rear Applique Bolt - - 1.5 N.m (13 lb in) Front Side Door Window Frame Rear Applique Replacement
GM5527123Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Nut [5x] - - 11 N.m (97 lb in) Front Side Door Window Regulator Replacement (Power)Front Side Door Window Regulator Replacement (Manual)
GM5527163Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Motor Bolt [3x] - - 11 N.m (97 lb in) Front Side Door Window Regulator Motor Replacement
GM5587460Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Side Door Window Upper Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Upper Reveal Molding Rivet [2x] Yes - - Front Side Door Window Upper Reveal Molding Replacement

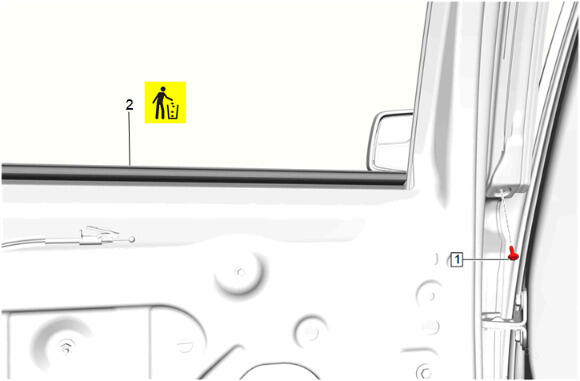

GM5639566Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Belt Reveal Molding Bolt - - 1.5 N.m (13 lb in) Rear Side Door Window Belt Reveal Molding Replacement
2 Rear Side Door Window Belt Reveal Molding Yes - - Rear Side Door Window Belt Reveal Molding Replacement
GM5583116Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Side Door Window Channel Front Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Channel Front Retainer Bolt [2x] - - 11 N.m (97 lb in) Rear Side Door Window Channel Front Retainer Replacement
GM5661798Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Side Door Window Frame Front Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Frame Front Applique Bolt - - 1.5 N.m (13 lb in) Rear Side Door Window Frame Front Applique Replacement

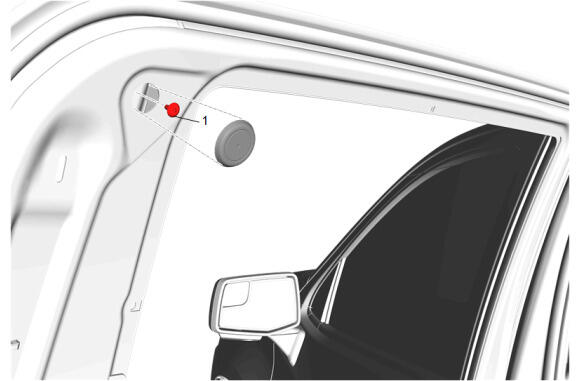

GM5661808Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Side Door Window Frame Rear Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Frame Rear Applique Bolt - - 1.5 N.m (13 lb in) Rear Side Door Window Frame Rear Applique Replacement
GM5642783Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Nut [4x] - - 11 N.m (97 lb in) Rear Side Door Window Regulator Replacement
GM6003501Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Side Door Window Rear Channel Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Rear Channel Bolt [2x] - Yes 11 N.m (97 lb in) Rear Side Door Window Replacement
GM5582598Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Motor Bolt [3x] - - 11 N.m (97 lb in) Rear Side Door Window Regulator Motor Replacement

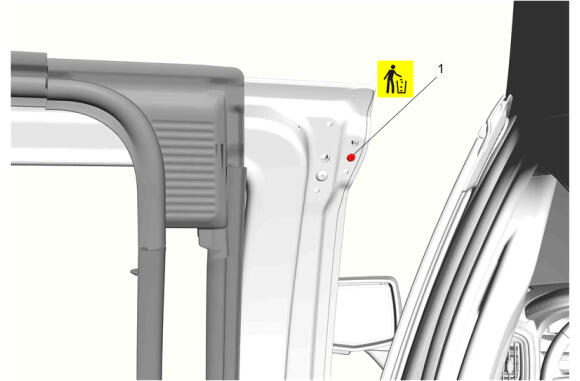

GM5645726Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Side Door Window Upper Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Upper Reveal Molding Rivet Yes - - Rear Side Door Window Upper Reveal Molding Replacement

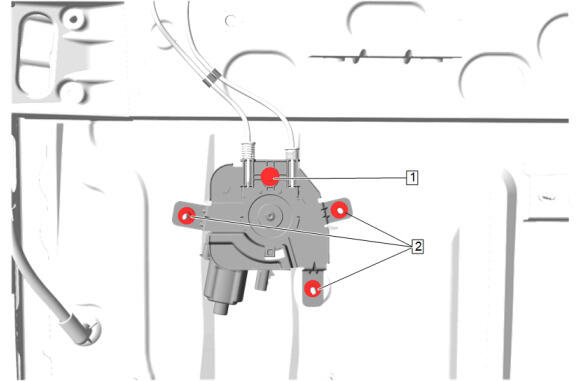

GM5662089Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Sliding Window Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Sliding Window Control Module Bolt - - 9 N.m (80 lb in) Rear Sliding Window Module Replacement
2 Rear Sliding Window Control Module Nut [3x] - - 9 N.m (80 lb in) Rear Sliding Window Module Replacement

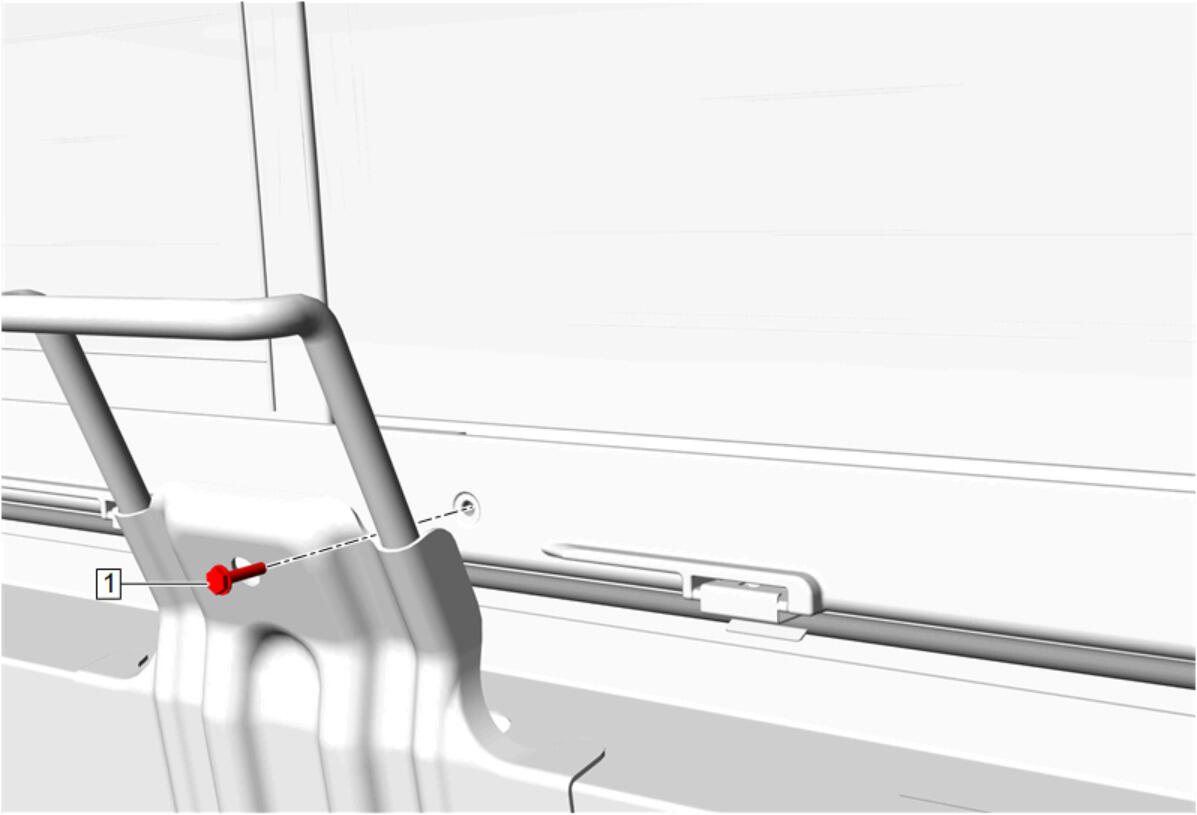

GM5043801Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Sliding Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Sliding Window Block Bolt - - 1.1 N.m (10 lb in) Rear Sliding Window Regulator Replacement
