Exhaust System Alignment

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.

WARNING:

Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

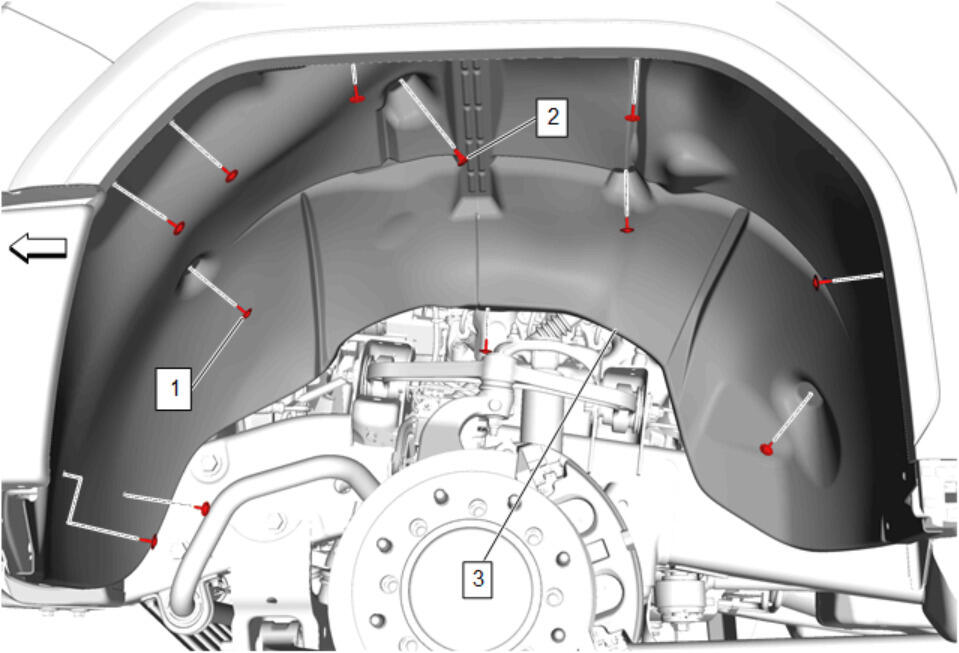

Front Wheelhouse Liner-Right Side (3) - Remove - Front Wheelhouse Liner Replacement
Courtesy of GENERAL MOTORS COMPANY

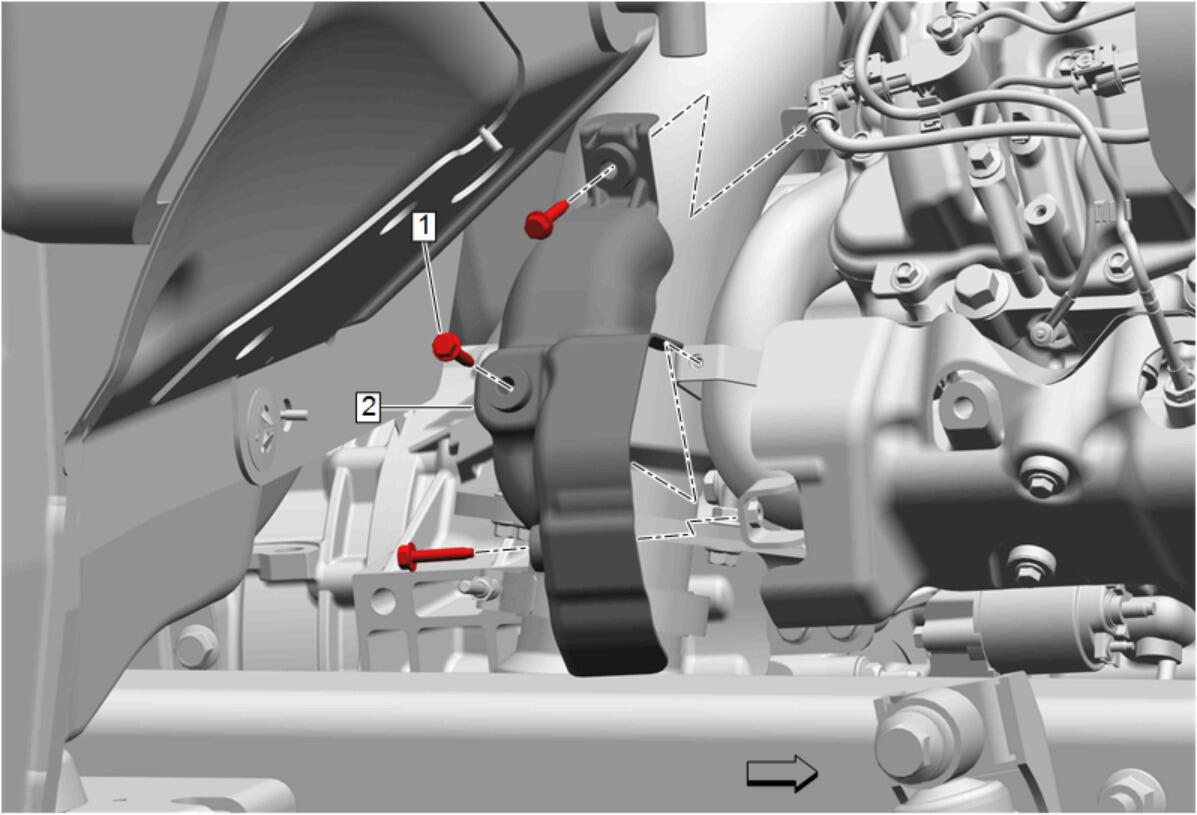

Catalytic Converter Heat Shield Bolt (1) - Remove [3x]
Exhaust Pipe Heat Shield-Right Side (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

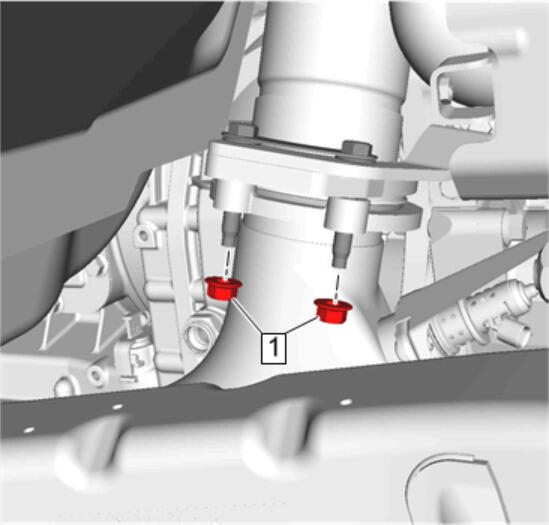

Exhaust Front Pipe Nut (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

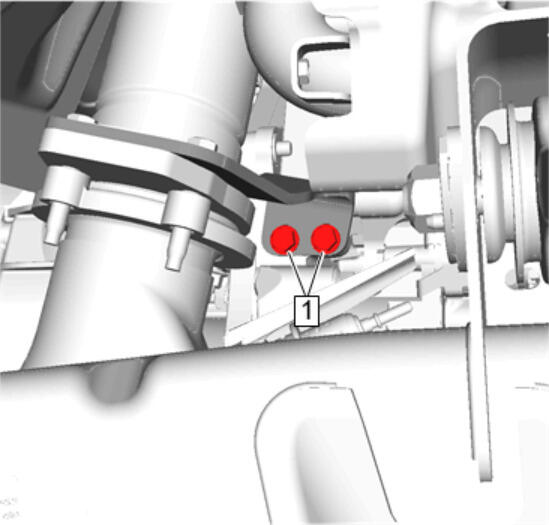

Loosen the 2 catalytic converter brace bracket bolts (1) at the lower exhaust front bracket 1/4 turn each.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
If the stud plate assembly cannot be removed, further loosen the lower exhaust front bracket to flywheel housing bolts, remove the stud plate assembly, then hand tighten the bolts and reverse 1/4 turn.

Exhaust Front Pipe Stud Plate Assembly (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

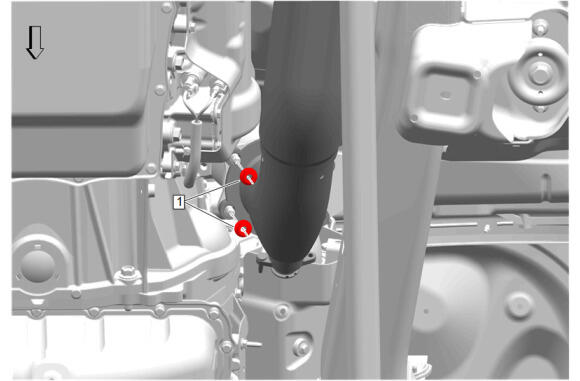

Exhaust Front Pipe Nut (1) - Loosen
Courtesy of GENERAL MOTORS COMPANY

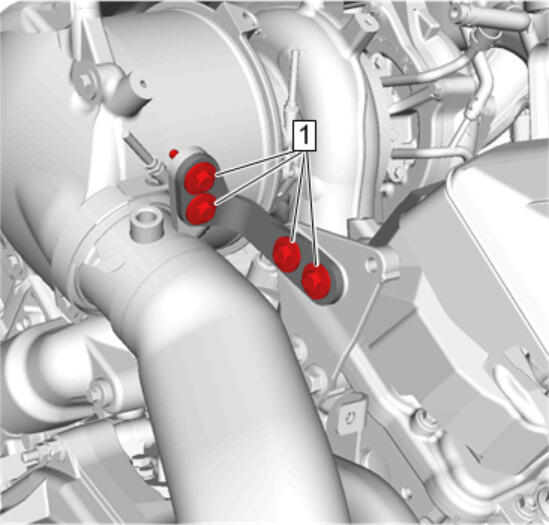

Catalytic Converter Brace Bracket Bolt (1) @Exhaust Front Bracket- Upper - Loosen [4x]
Courtesy of GENERAL MOTORS COMPANY

Loosen the exhaust pipe clamp (1) approximately 3.5 turns or just enough to allow the exhaust front pipe to rotate.
Courtesy of GENERAL MOTORS COMPANY

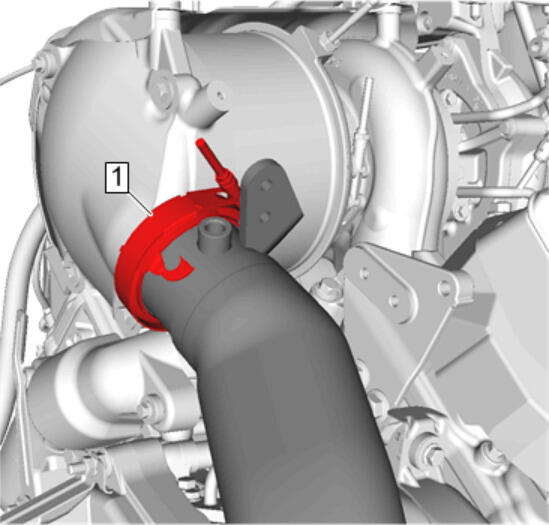

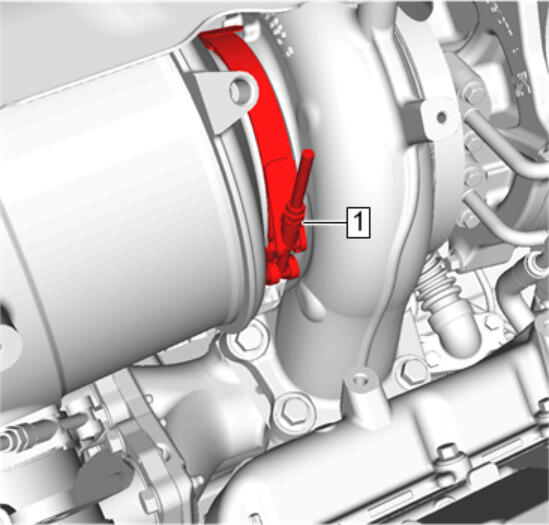

Loosen the catalytic converter clamp (1) approximately 3.5 turns or just enough to allow the oxidation catalytic converter to rotate.
Courtesy of GENERAL MOTORS COMPANY

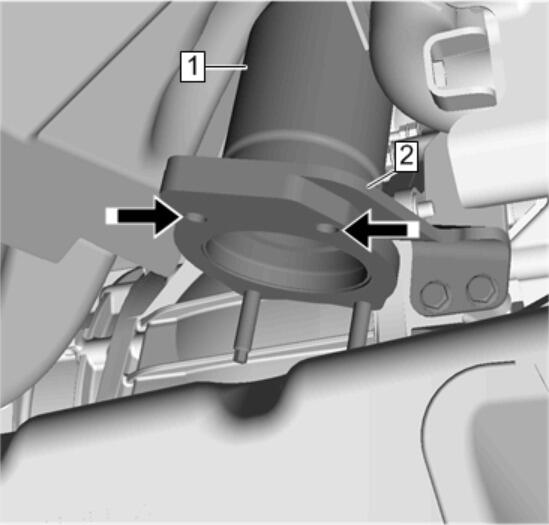

Adjust the alignment of the exhaust front pipe (1) to oxidation catalytic converter by rotating, raising or lowering the pipe until the holes of the lower flange align with the lower exhaust front bracket (2).
Use vise grips to clamp the lower exhaust front bracket to the exhaust front pipe flange.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

Catalytic Converter Clamp (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Catalytic Converter Clamp (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Catalytic Converter Brace Bracket Bolt (1) - Tighten [2x] - Fastener Specifications
Remove the vise grips.
Courtesy of GENERAL MOTORS COMPANY

Exhaust Front Pipe Nut (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

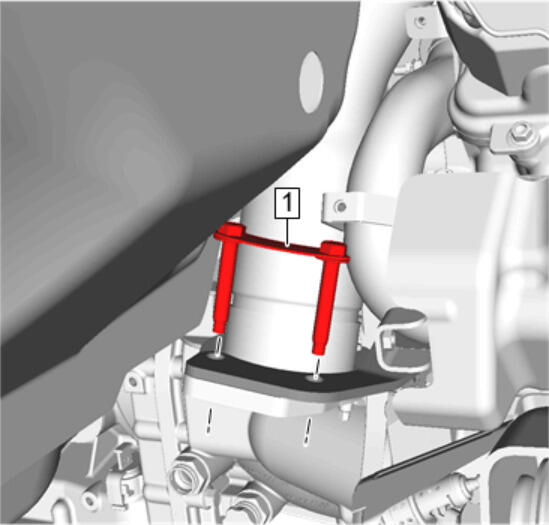

Install the exhaust front pipe stud plate assembly (1) through the lower exhaust front bracket and exhaust front pipe flange holes.
Courtesy of GENERAL MOTORS COMPANY

Catalytic Converter Brace Bracket Bolt (1) @Exhaust Front Bracket- Upper - Tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Exhaust Front Pipe Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Exhaust Pipe Heat Shield (2) - Install
Catalytic Converter Heat Shield Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner-Right Side (3) - Install - Front Wheelhouse Liner Replacement
