Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

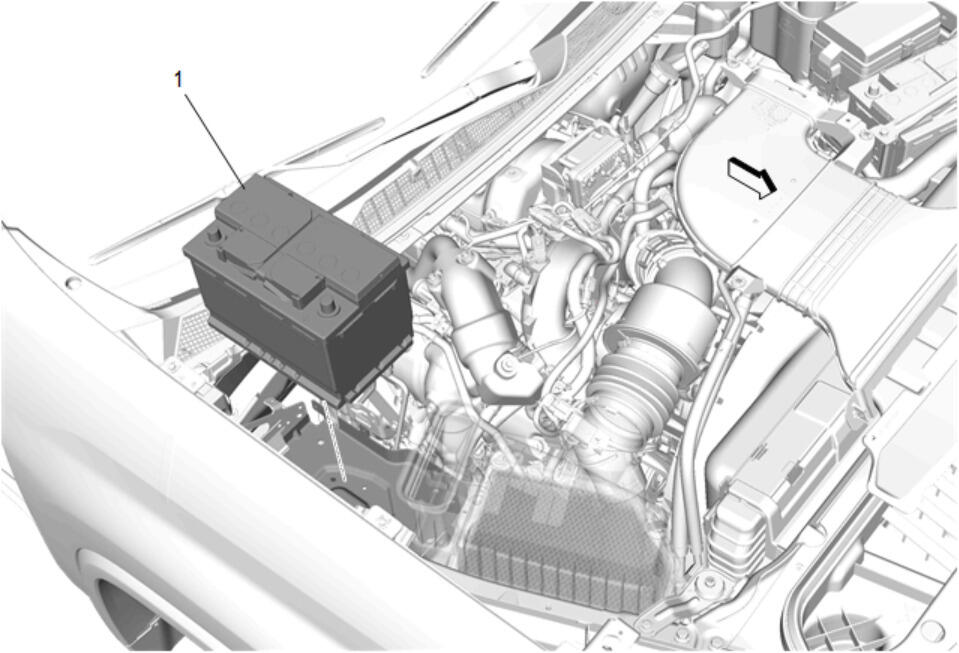

Battery (1) - Install

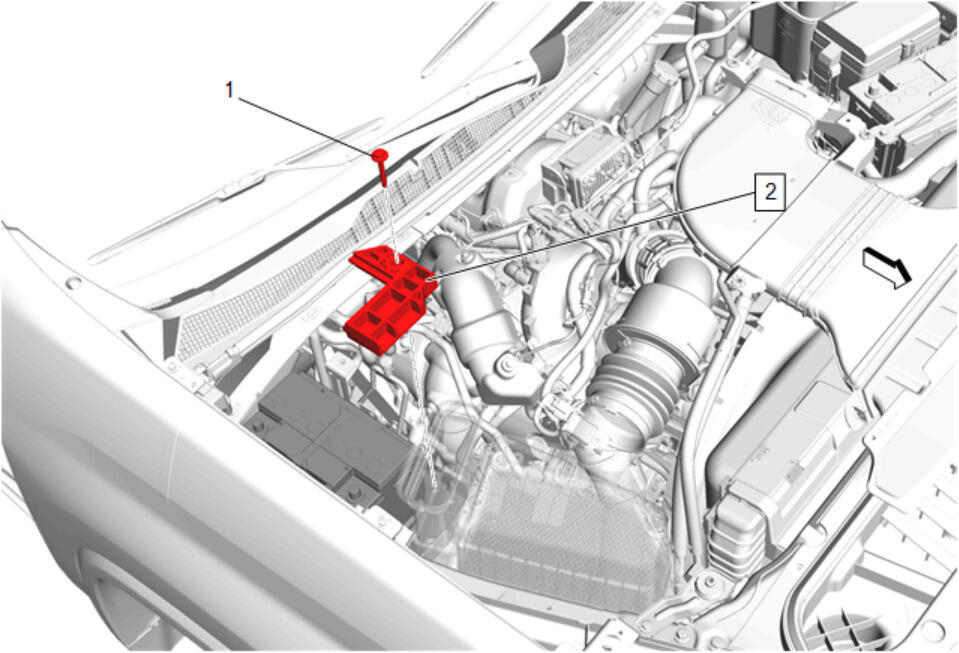

Battery Hold Down Retainer (2) - Install
- Battery Hold Down Retainer Bolt (1) - Install and tighten - Fastener Specifications
Battery Hold Down Strap (2) - Install
- Battery Hold Down Strap Bolt (1) - Install and tighten [2x] - Fastener Specifications

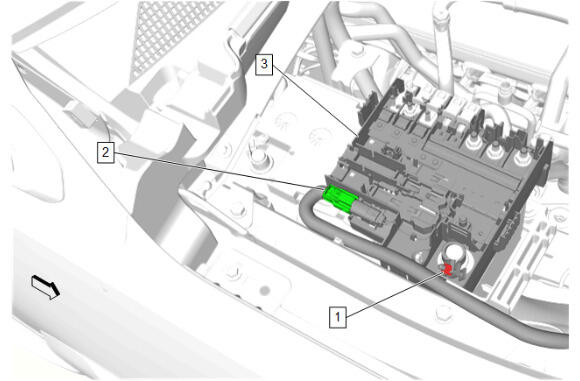

Battery Distribution Engine Compartment Fuse Block (3) - Install
- Battery Positive Post Clamp Nut (1) - Tighten - Fastener Specifications
- Electrical Connector (2) - Connect
Front Compartment Fuse Block Cover (2) - Install
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (without K4B) , or Battery Negative Cable Disconnection and Connection (with K4B)
CAUTION:
Refer to Fastener Caution
