Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts in the following chart represent components shown in graphic above.

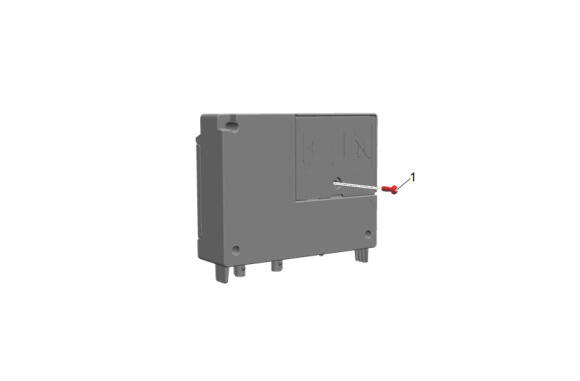

Communication Interface Module Battery
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Communication Interface Module Battery Bolt | - | - | 2.5 N.m (22 lb in) | Communication Interface Module Battery Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

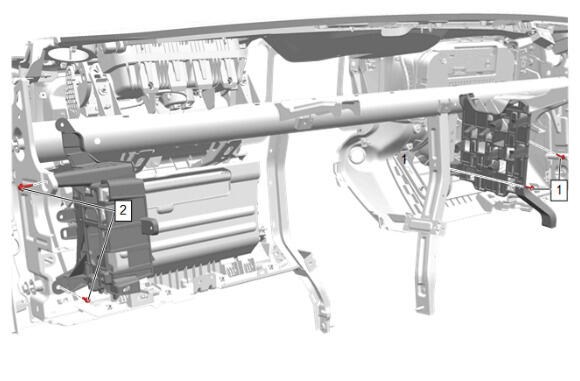

Communication Interface Module Bracket & Radio Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Communication Interface Module Bracket Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Communication Interface Module Bracket Replacement (with UV6)Communication Interface Module Bracket Replacement (without UV6) |
| 2 | Radio Bracket Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Radio Bracket Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

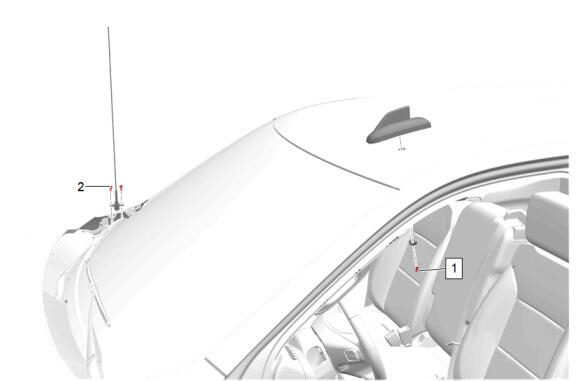

High Frequency Antenna & Radio Antenna Base
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | High Frequency Antenna Bolt | - | - | 9 N.m (80 lb in) | High Frequency Antenna Replacement |
| 2 | Radio Antenna Base Bolt | - | - | 9 N.m (80 lb in) | Radio Antenna Base Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Radio Antenna Ground Base
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Radio Antenna Base Ground Bolt | - | - | 9 N.m (80 lb in) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

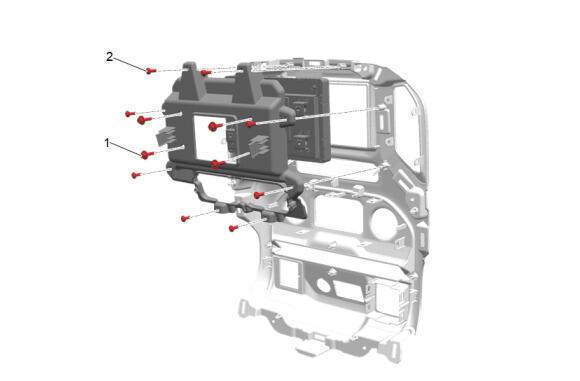

Radio Control Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Radio Control Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Radio Control Bracket Replacement (without Front Floor Console)Radio Control Bracket Replacement (with Front Floor Console) |
| 2 | Radio Control Bracket Bolt [8x] | - | - | 2.5 N.m (22 lb in) | Radio Control Bracket Replacement (without Front Floor Console)Radio Control Bracket Replacement (with Front Floor Console) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

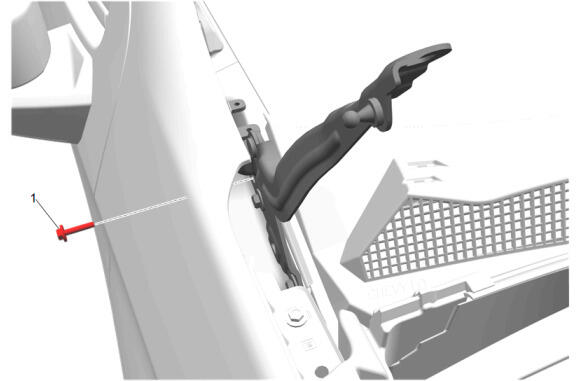

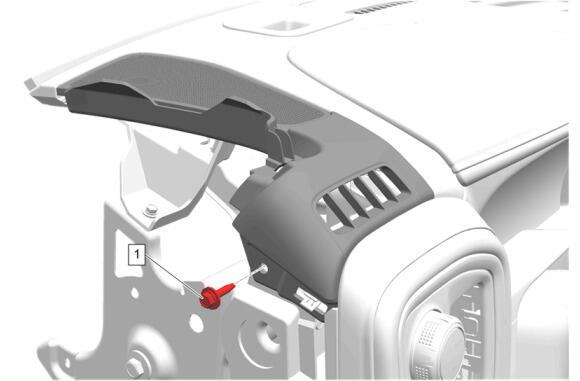

Radio Front Speaker Grille
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Radio Front Speaker Grille Bolt | - | - | 2.5 N.m (22 lb in) | Radio Front Speaker Grille Replacement - Left Side |
| Radio Front Speaker Grille Replacement - Right Side (without Front Floor Console)Radio Front Speaker Grille Replacement - Right Side (with Front Floor Console) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

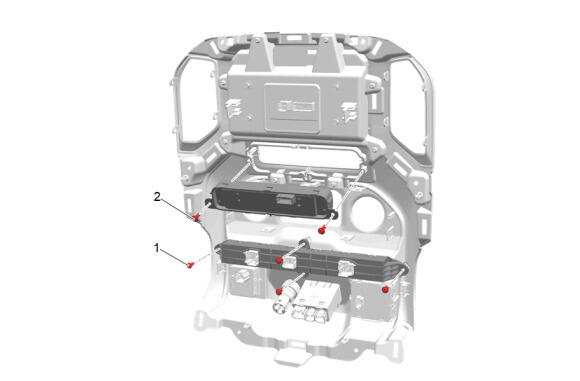

Radio Function Switch & Hazard Warning Switch Housing
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Hazard Warning Switch Housing Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Center Accessory Function Switch Replacement (without Front Floor Console)Instrument Panel Center Accessory Function Switch Replacement (with Front Floor Console) |
| 2 | Radio Control Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Radio Function Switch Replacement (without Front Floor Console)Radio Function Switch Replacement (with Front Floor Console) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

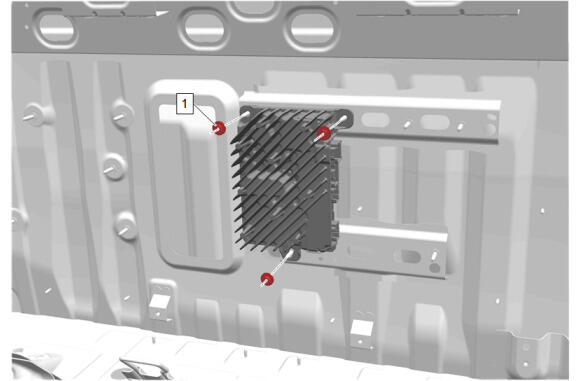

Radio Speaker Amplifier
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Radio Speaker Amplifier Nut [3x] | - | - | 9 N.m (80 lb in) | Radio Speaker Amplifier Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

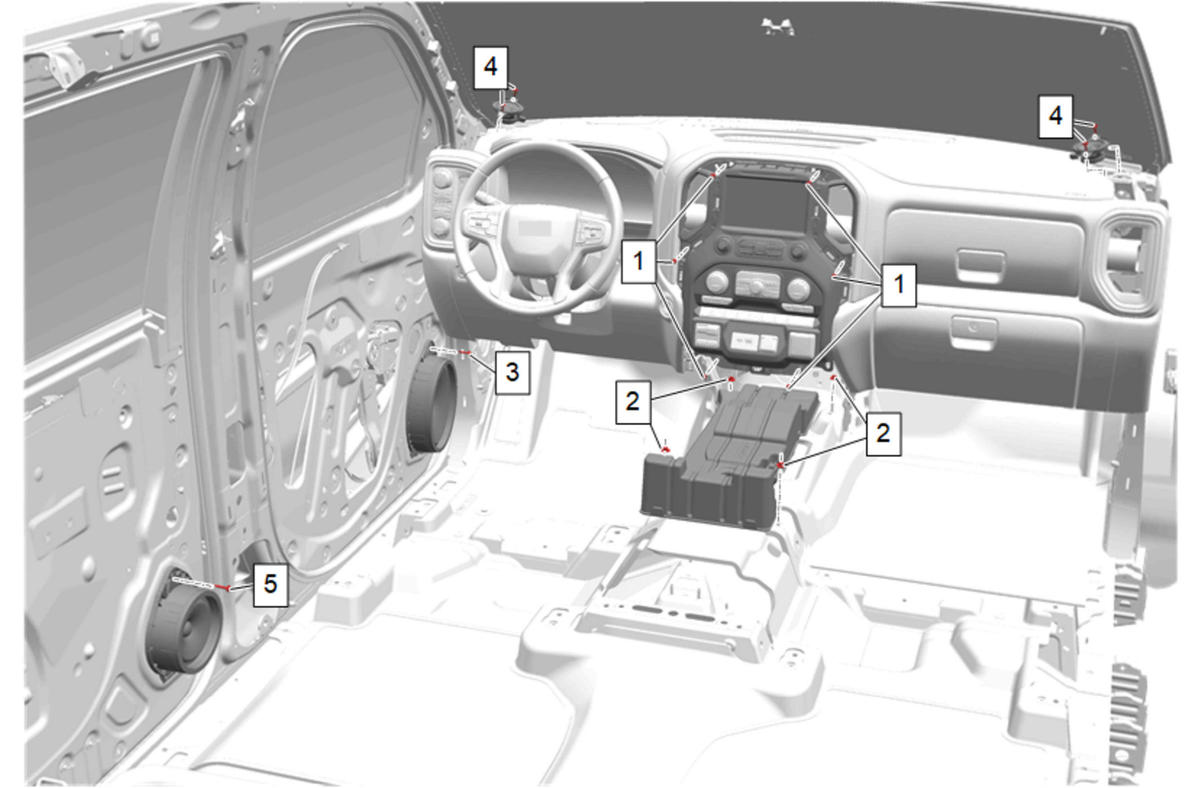

Radio Speakers & Radio Control
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Radio Control Bolt [6x] | - | - | 2.5 N.m (22 lb in) | Radio Control Assembly Replacement (wIthout Front Floor Console)Radio Control Assembly Replacement (with Front Floor Console) |
| 2 | Radio Front Floor Speaker Nut [4x] | - | - | 6 N.m (53 lb in) | Front Floor Speaker Replacement |
| 3 | Radio Front Side Door Speaker Bolt | - | - | 2.5 N.m (22 lb in) | Radio Front Side Door Speaker Replacement |
| 4 | Radio Front Speaker Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Radio Front Speaker Replacement - Left Side |
| Radio Front Speaker Replacement - Right Side (without Front Floor Console)Radio Front Speaker Replacement - Right Side (with Front Floor Console) | |||||
| 5 | Radio Rear Side Door Speaker Bolt | - | - | 2.5 N.m (22 lb in) | Radio Rear Side Door Speaker Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

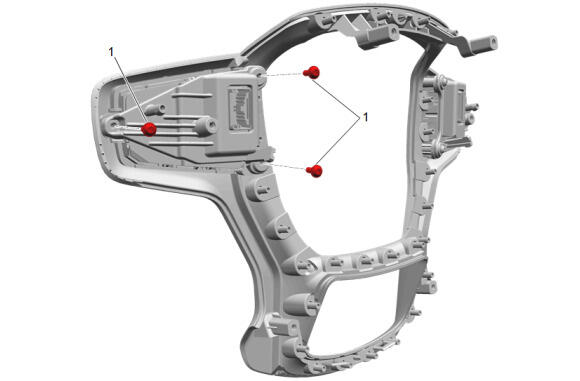

Steering Wheel
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Wheel Bolt [3x] | - | - | 1.1 N.m (10 lb in) | Radio Control Switch Replacement - Steering Wheel |
