Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

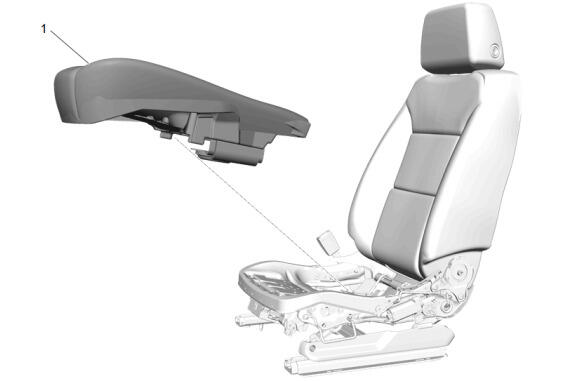

{If equipped} Front Seat Cushion Pad Front Support (1) - Install
Airbag Front Passenger Presence Module (2) - Install
- Airbag Front Passenger Presence Module Retainer (1) - Install [2x]
- Install the airbag front passenger presence module sensor onto the bracket.
- Connect the electrical connector.
Front Seat Cushion Cover and Pad (1) - Install - Front Seat Cushion Cover and Pad Removal and Installation (Power)Front Seat Cushion Cover and Pad Removal and Installation (Manual)
- Perform the necessary programming and setup procedure: Control Module References
NOTE:
The Regulatory Name for this component because of SAE J1930 is Restraints Occupant Classification System Module.
