Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

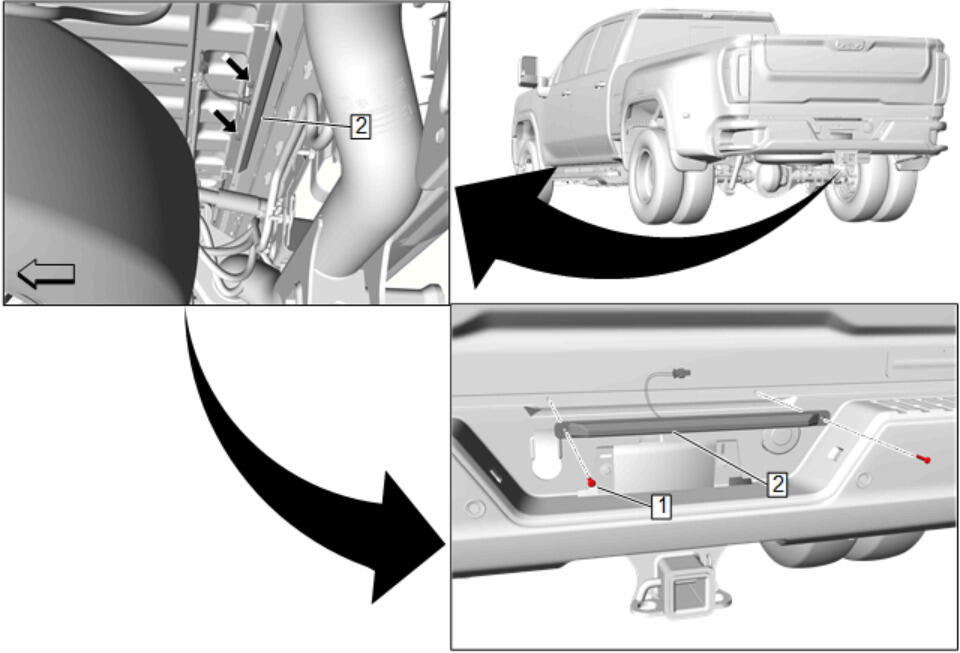

Rear Identification Lamp (2) - Install
- Rear Identification Lamp Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Secure the retaining tabs.
- Connect the electrical connector.
CAUTION:
Refer to Fastener Caution .
