Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Front Fog Lamp (2) - Install
- Front Fog Lamp Bolt (1) - Install and tighten [3x] - Fastener Specifications

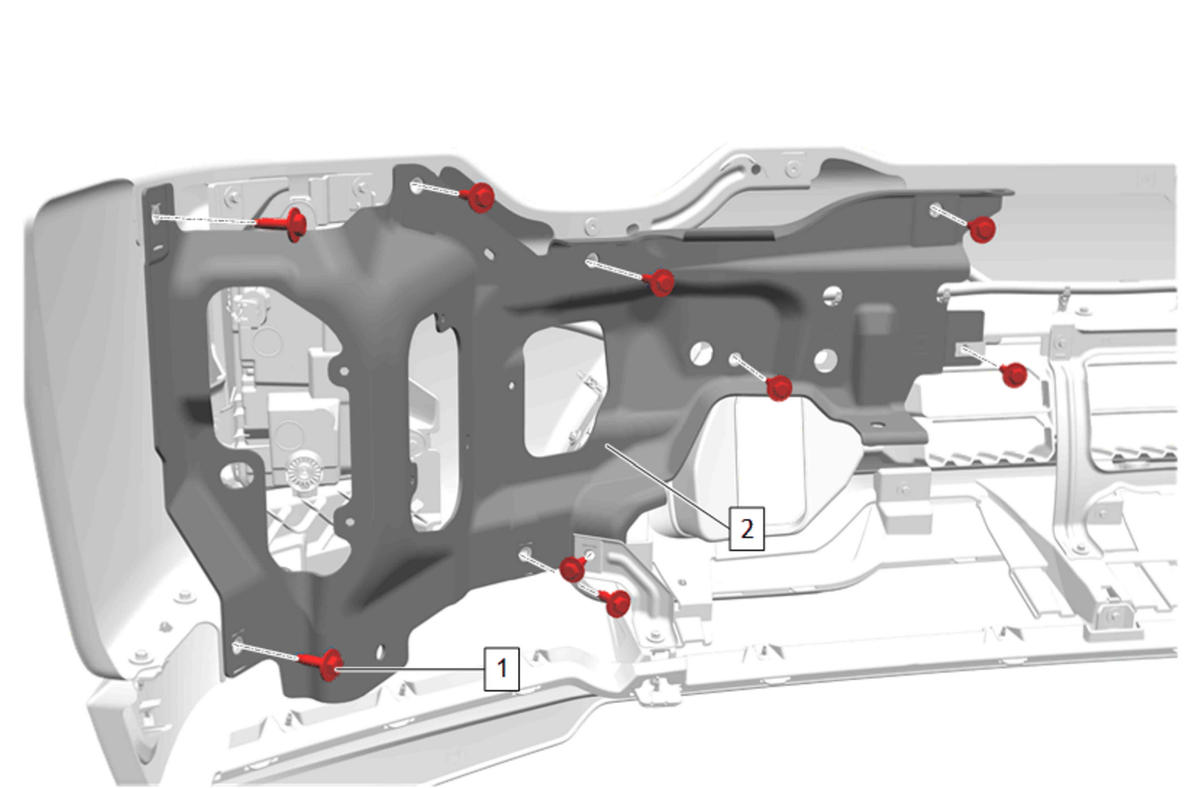

Front Bumper Impact Bar Bracket (2) - Install
- Front Bumper Impact Bar Bolt (1) - Install and tighten [9x] - Fastener Specifications
- Connect the electrical connector.
- Wiring Harness Retainer - Install
- Secure the retaining clips.

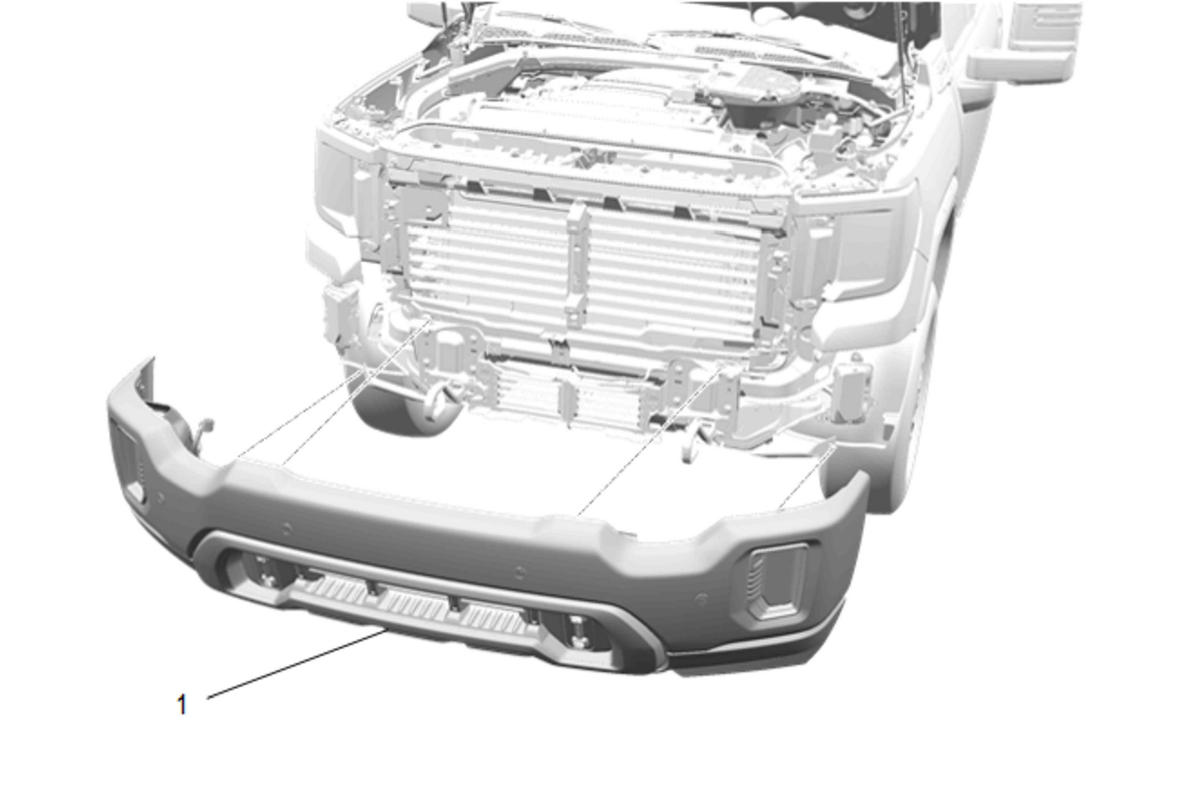

With the aid of an assistant, install the impact bar. (1) Front Bumper Impact Bar Removal and Installation
- After installation, aim the fog lamps. Front Fog Lamp Aiming
CAUTION:
Refer to Fastener Caution .
