Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

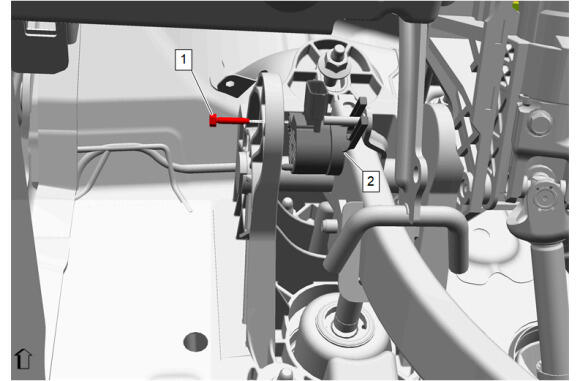

Brake Pedal Position Sensor (2) - Install
- Brake Pedal Position Sensor Bolt (1) - Install and tighten - Fastener Specifications

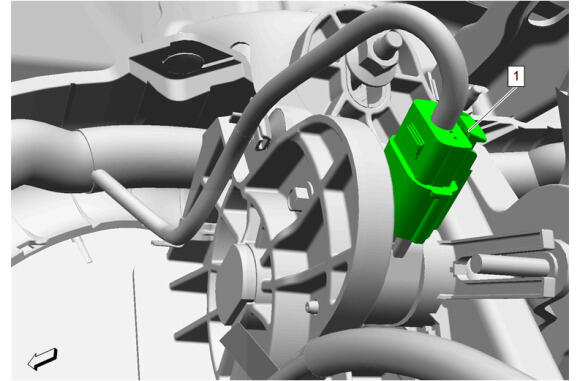

Brake Pedal Position Sensor Electrical Connector (1) - Connect
Body Control Module (1) - Install
- Secure the retaining tabs.
- Connect the electrical connectors.
- Calibrate the brake pedal position sensor. Brake Pedal Position Sensor Calibration
CAUTION:
Refer to Fastener Caution .
