Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

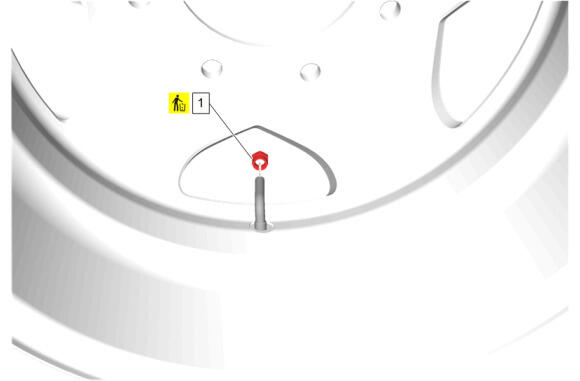

Callouts in the following chart represent components shown in graphic above.
Tire Pressure Sensor Replacement (Clamp-in Style)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Tire Pressure Indicator Sensor Nut | Yes | - | 9 N.m (80 lb in) | Tire Pressure Indicator Sensor Replacement (Clamp-in Style) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
NOTE:
A typical tire pressure sensor is depicted in graphic for illustrative purposes only and may differ in actual appearance.
Tire Pressure Sensor Replacement (Snap-in Style)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Valve Stem | Yes | - | - | Tire Pressure Indicator Sensor Replacement (Snap-in Style) |
| 2 | Tire Pressure Indicator Sensor Bolt | Yes | - | 1.4 N.m (12 lb in) | Tire Pressure Indicator Sensor Replacement (Snap-in Style) |
NOTE:

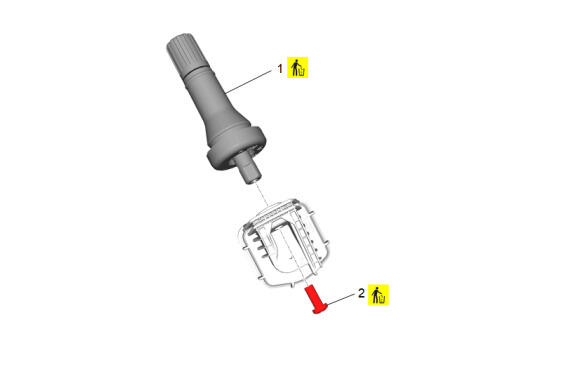

Callouts in the following chart represent components shown in graphic above.
Tire Pressure Sensor Replacement (with RS7)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Auxiliary Tire Pressure Indicator Sensor Nut | Yes | - | 11 N.m (8 lb ft) | Tire Pressure Indicator Sensor Replacement (with RS7) |
