Removal Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner (3) - Remove - Front Wheelhouse Liner Replacement
If necessary, unclip and reposition the chassis wiring harness.

NOTE:

Support the lower control arm to prevent over-articulation of the front lower control arm ball joint.

Support the front lower control arm with a suitable jack stand.
Courtesy of GENERAL MOTORS COMPANY

Front Shock Absorber Nut- Upper (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Shock Absorber Nut- Lower (1) - Remove
Front Shock Absorber Bolt (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Shock Absorber (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

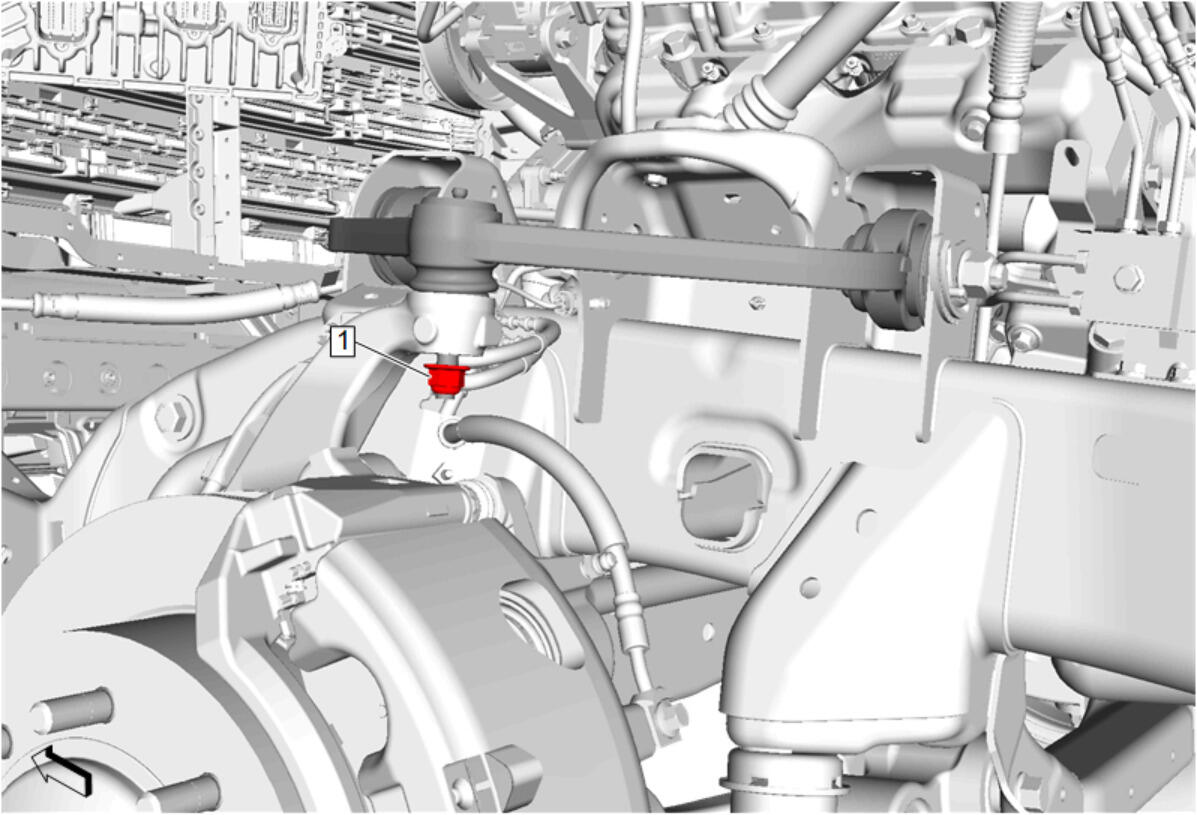

Front Upper Control Arm Ball Stud Nut (1) - Loosen
Courtesy of GENERAL MOTORS COMPANY

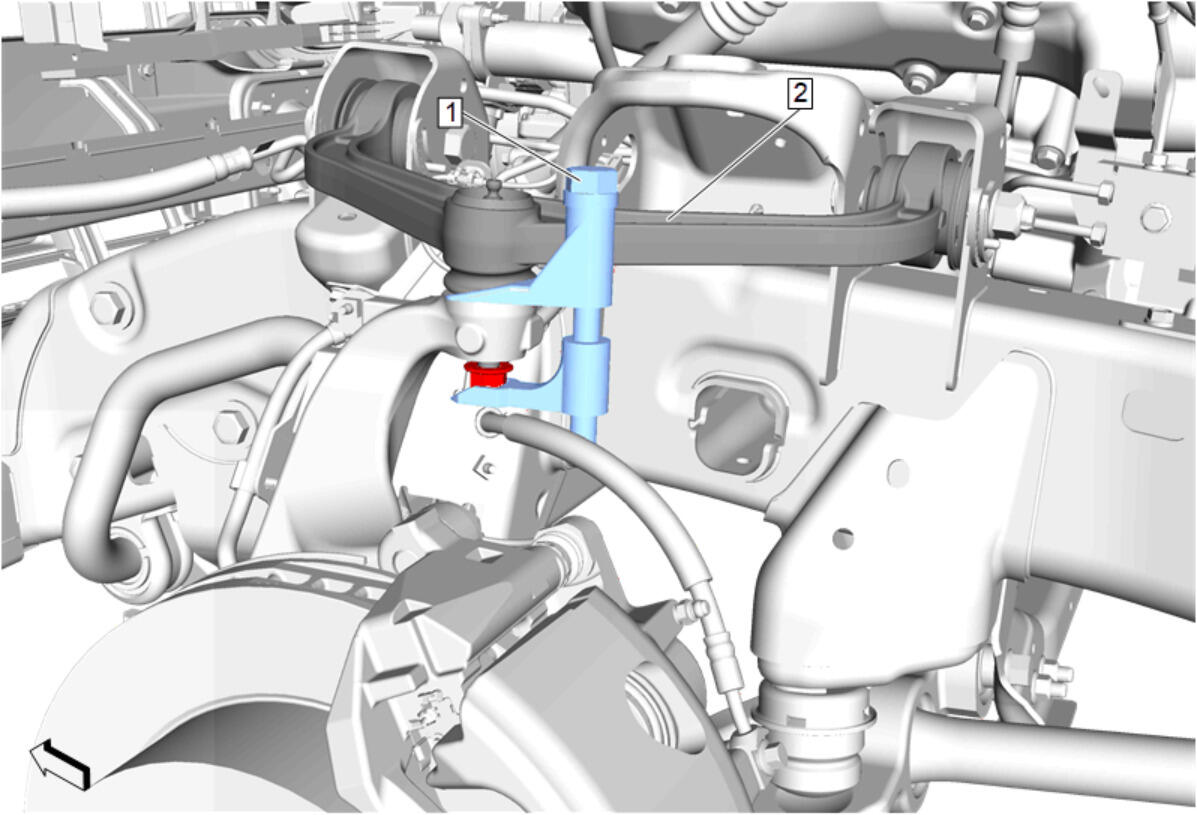

Using the CH-42188-B Ball Joint Separator (1), separate the front upper control arm (2) from the steering knuckle.
Remove the CH-42188-B Ball Joint Separator (1) from the front upper control arm (2) and the steering knuckle.
Courtesy of GENERAL MOTORS COMPANY

Front Upper Control Arm Ball Stud Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

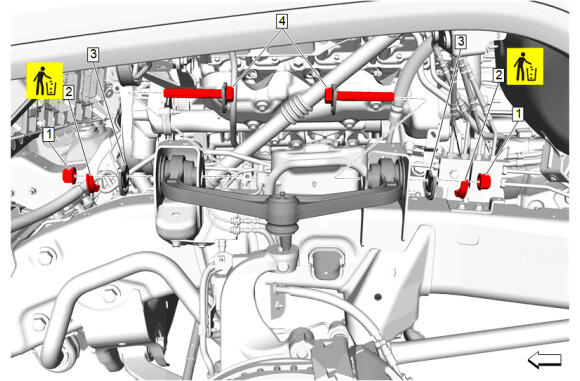

Mark the relationship of the 2 front upper control arm adjust cams (3) and the 2 front upper control arm adjust bolts (4) to the vehicle frame using a grease pencil.
Front Upper Control Arm Nut (1) - Remove [2x]

NOTE:

The 2 front upper control arm adjust cam retainers (2) are for factory alignment purposes only and should NOT be reused.

Remove and DISCARD the 2 front upper control arm adjust cam retainers (2) if equipped.
Front Upper Control Arm Adjust Cam (3) - Remove [2x]
Front Upper Control Arm Bolt (4) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Upper Control Arm (1) - Remove
