Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

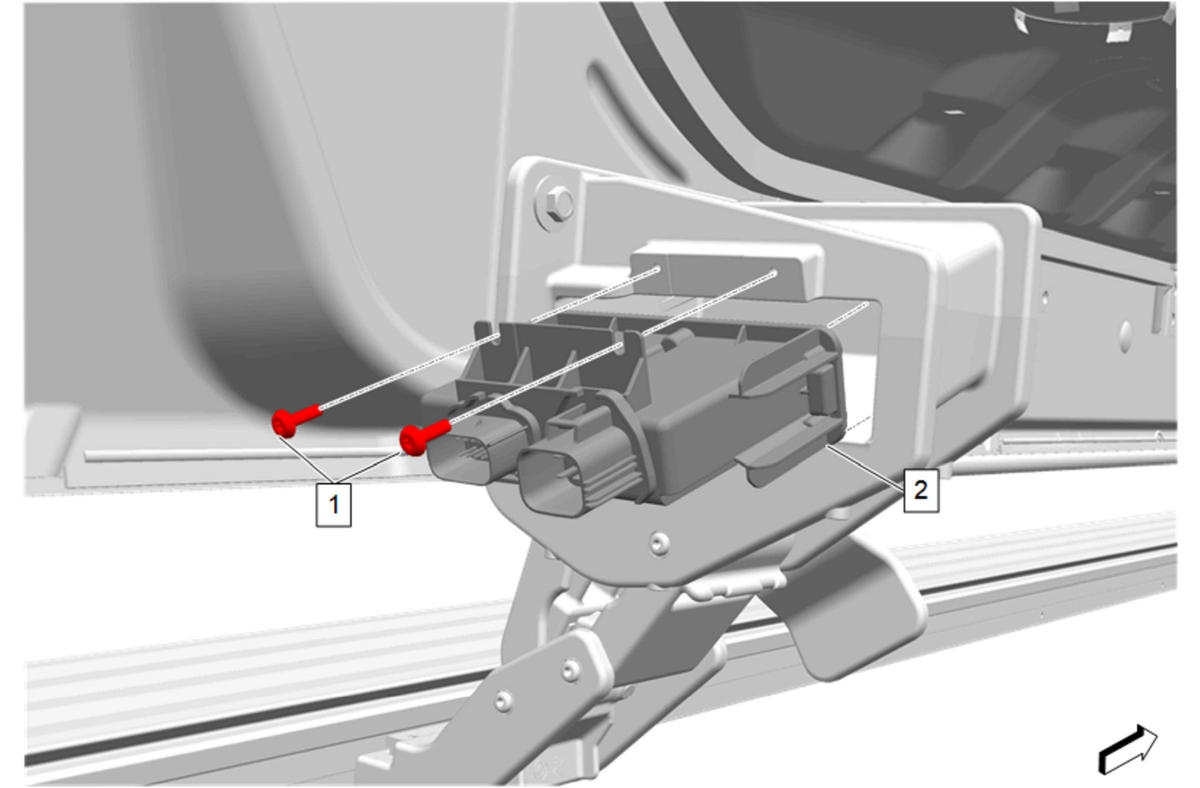

Running Board Control Module (2) - Install
- Assist Step Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Connect the 2 electrical connectors.
Engage the assist step rear bracket (1) to the assist step rod (2).

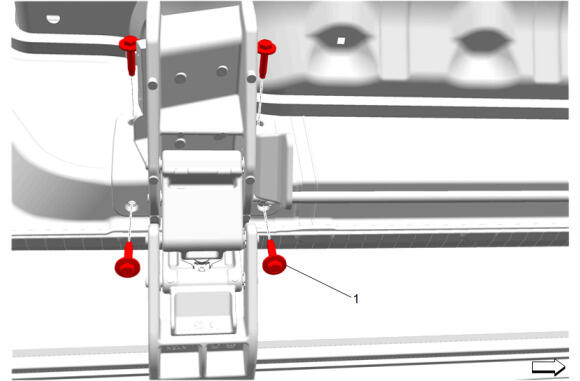

Assist Step Bolt (1) - Loosely install [4x]
Assist Step Rod Bolt (2) @Assist Step Rear Bracket (1) - Install and tighten - Fastener Specifications
- Remove the support from the assist step rod.

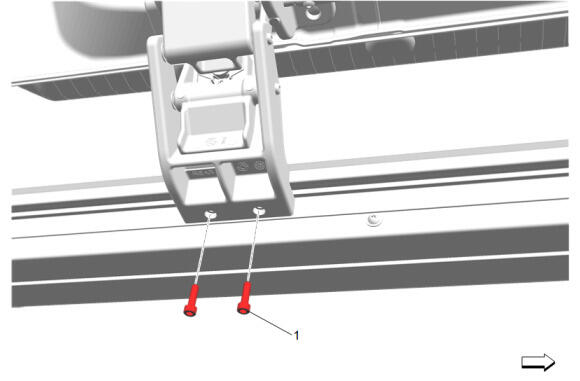

Assist Step Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
Assist Step Bolt (1) - Tighten [4x] - Fastener Specifications
- Remove the assist step support jack.

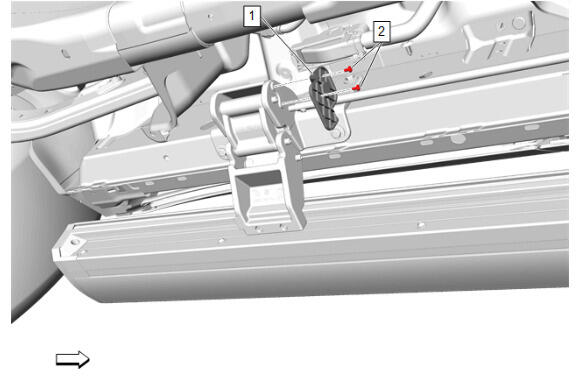

Assist Step Shield (1) - Install
- Assist Step Shield Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Remove the support and lower the vehicle.
CAUTION:
Refer to Fastener Caution .
