Installation Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

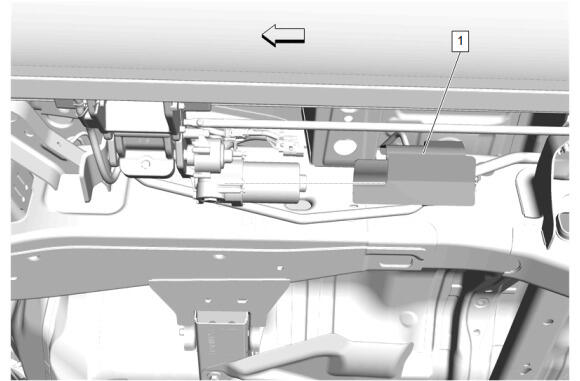

  1. GM5532155Courtesy of GENERAL MOTORS COMPANY

    Assist Step Shield (1) - Install

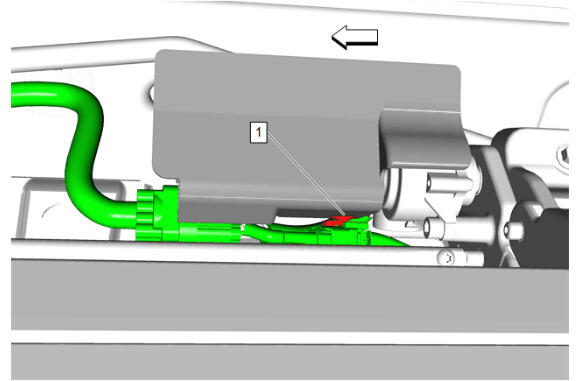

  2. GM5536363Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Engage

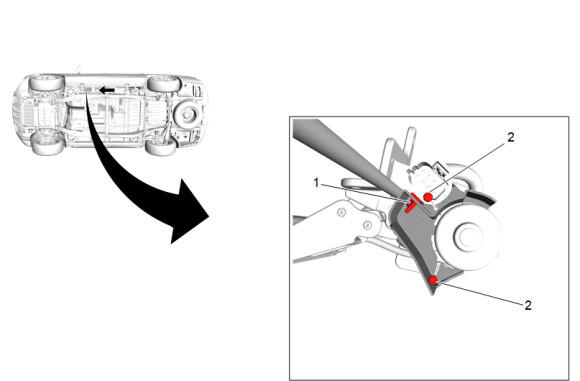

  3. GM5531682Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Assist Step Shield Bolt (2) - Install and tighten [2x] - Fastener Specifications

  4. Retainer (1) - Engage
  5. Lower the vehicle.
