Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Some components not shown for graphic clarity.

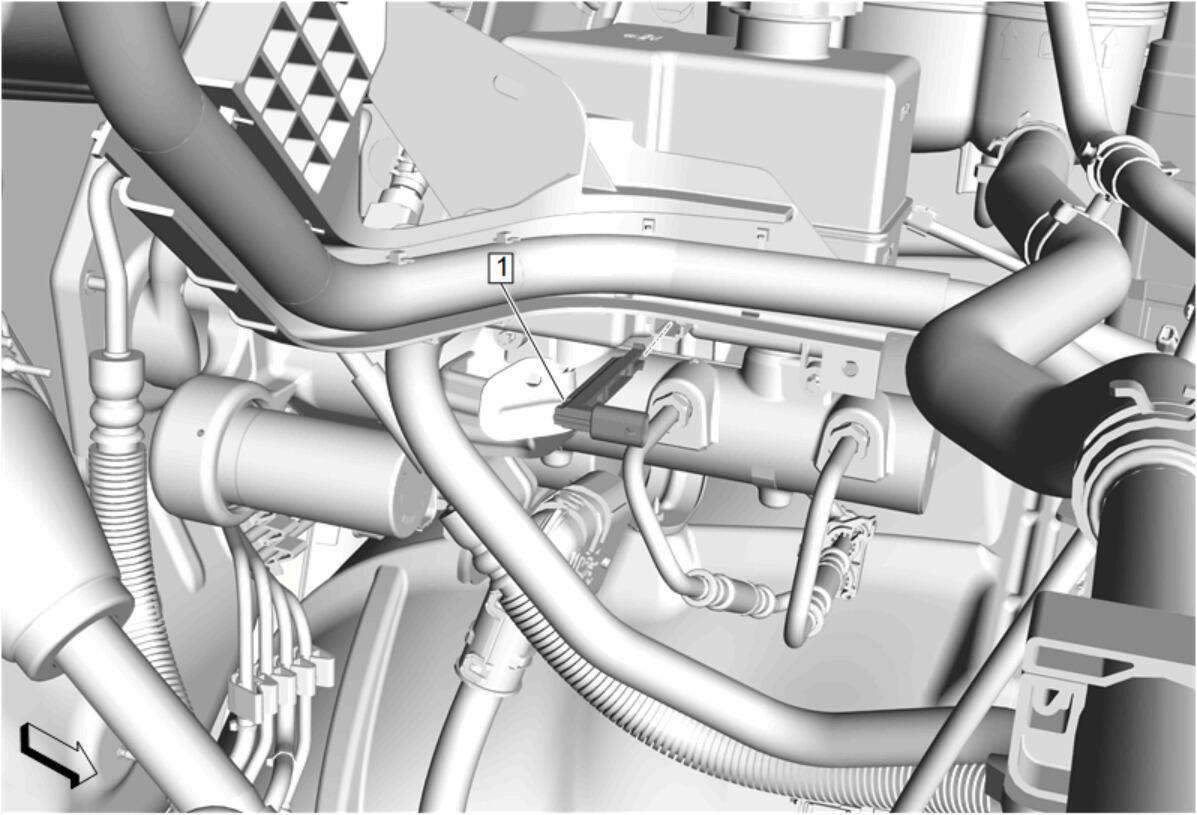

Brake Fluid Level Indicator Switch (1) - Install
- Ensure the locking tabs on the switch fully engage the master cylinder reservoir.
- Connect the brake fluid level indicator electrical connector

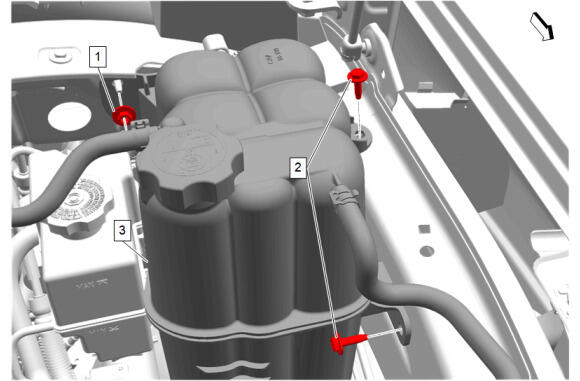

Radiator Surge Tank (3) - Install
- Radiator Surge Tank Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Radiator Surge Tank Nut (1) - Install and tighten - Fastener Specifications

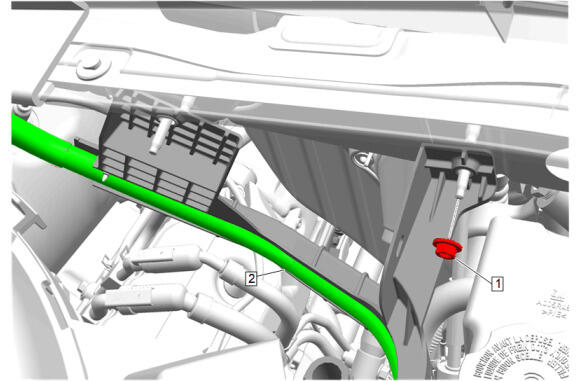

Battery Positive Cable (2) - Move into position
- Battery Positive Cable Nut (1) - Install and tighten - Fastener Specifications

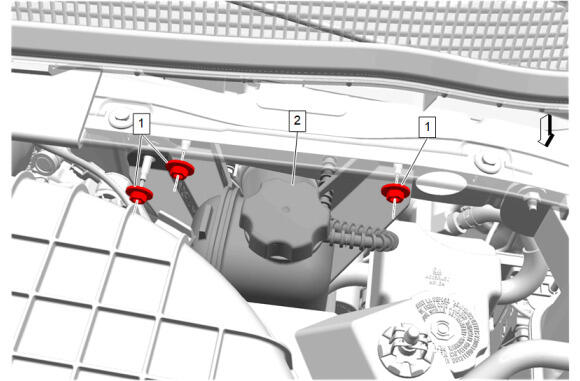

Fuel Cooler Coolant Surge Tank (2) - Install
- Radiator Surge Tank Air Separator Nut (1) - Install and tighten [3x] - Fastener Specifications
- Bleed the brake system. Hydraulic Brake System Bleeding
