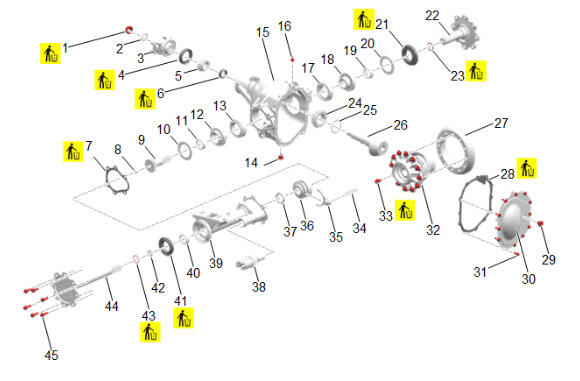

Front Drive Axle Disassembled Views
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Front Differential Drive Pinion Gear Nut |
| 2 | Front Differential Drive Pinion Gear Washer |
| 3 | Front Differential Drive Pinion Gear Yoke |
| 4 | Front Differential Drive Pinion Gear Seal |
| 5 | Front Differential Drive Pinion Gear Bearing- Outer |
| 6 | Front Differential Drive Pinion Gear Bearing Spacer |
| 7 | Front Differential Carrier Cover Gasket |
| 8 | Front Drive Axle Clutch Shaft Bearing |
| 9 | Front Drive Axle Clutch Shaft |
| 10 | Front Differential Bearing Adjuster Nut Lock |
| 11 | Front Wheel Drive Shaft Bearing |
| 12 | Front Differential Bearing Adjuster |
| 13 | Front Differential Bearing |
| 14 | Front Differential Carrier Oil Drain Plug |
| 15 | Front Differential Carrier |
| 16 | Front Differential Carrier Vent Hose Connector |
| 17 | Front Differential Bearing |
| 18 | Front Differential Bearing Adjuster |
| 19 | Front Wheel Drive Shaft Bearing |
| 20 | Front Differential Bearing Adjuster Nut Lock |
| 21 | Front Wheel Drive Shaft Seal |
| 22 | Front Wheel Drive Shaft |
| 23 | Front Wheel Drive Shaft Retaining Ring |
| 24 | Front Differential Drive Pinion Gear Bearing- InnerFront Differential |
| 25 | Front Differential Drive Pinion Gear Bearing Shim |
| 26 | Front Differential Drive Pinion Gear |
| 27 | Front Differential Ring Gear |
| 28 | Front Differential Carrier Cover Gasket |
| 29 | Front Differential Carrier Oil Filler Plug |
| 30 | Front Differential Carrier Cover |
| 31 | Front Axle Housing Cover Bolt [12x] |
| 32 | Front Differential |
| 33 | Front Differential Ring Gear Bolt [12x] |
| 34 | Front Drive Axle Clutch Fork Inner Spring |
| 35 | Front Drive Axle Clutch Fork |
| 36 | Front Drive Axle Clutch Sleeve |
| 37 | Front Drive Axle Clutch Gear Thrust Washer |
| 38 | Front Drive Axle Actuator |
| 39 | Front Drive Axle Inner Shaft Housing |
| 40 | Front Wheel Drive Shaft Bearing |
| 41 | Front Wheel Drive Shaft Seal |
| 42 | Front Drive Axle Clutch Gear Shim |
| 43 | Front Drive Axle Inner Shaft Retaining Ring |
| 44 | Front Wheel Drive Shaft |
| 45 | Front Drive Axle Inner Shaft Housing Bolt [6x] |
