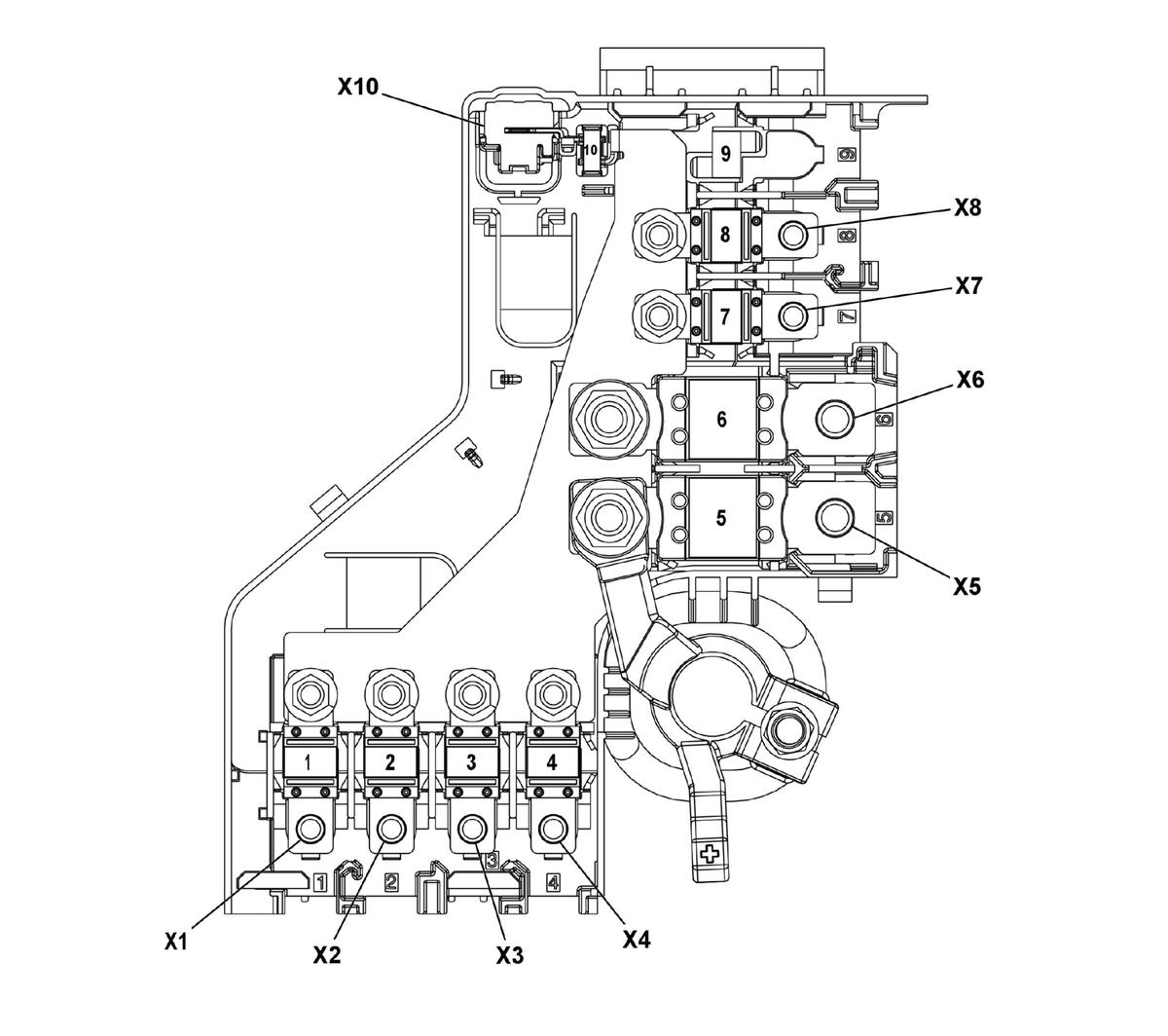

X50D Fuse Block - Battery Top View
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.
Usage Table
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| Fuses | ||||
| 1 | - | F1BA | 150A |
|
| 2 | - | F2BA | 70A (-U4G / V92) 100A (U4G / V92) |
|
| 3 | - | F3BA | 100A |
|
| 4 | - | F4BA | 70A |
|
| 5 | - | F5BA | 250A |
|
| 6 | - | F6BA | 350A |
|
| 7 | - | F7BA | 200A |
|
| 8 | - | F8BA | 150A |
|
| 9 | - | F9BA | 100A |
|
| 10 | - | F10BA | 5A |
|
