Parking Assist Control Module Replacement
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

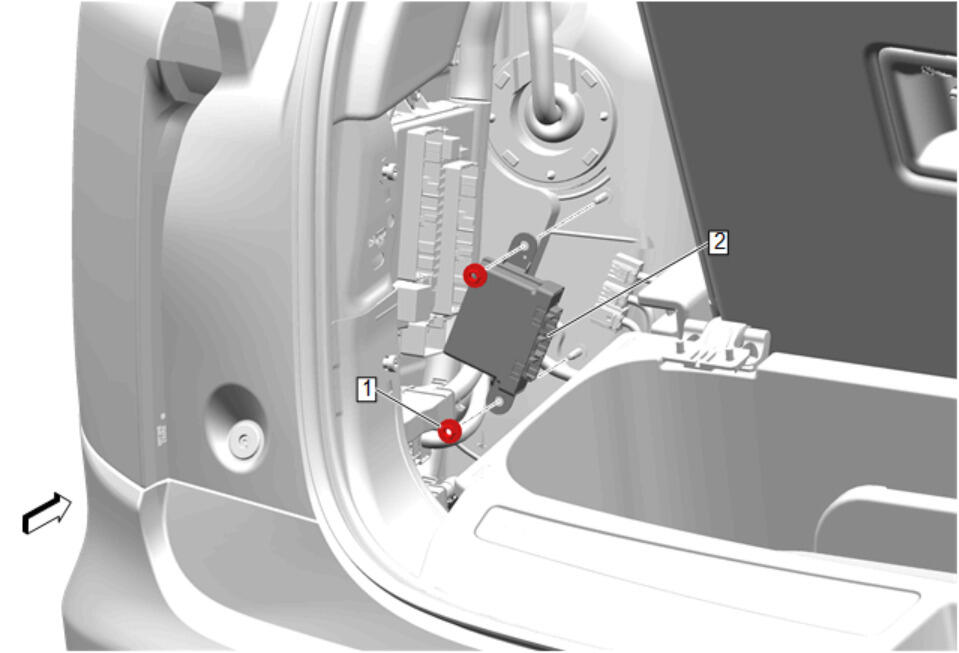

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Compartment Floor Stowage Side Rear Compartment Replacement |
|
| 1 | Parking Assist Alarm Control Module Nut [ 2x ]
CAUTION:
Procedure Reposition the wiring harness. Tighten 4.5 N.m (40 lb in) |
| 2 | Parking Assist Control Module Procedure
|
