Installation Procedure
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

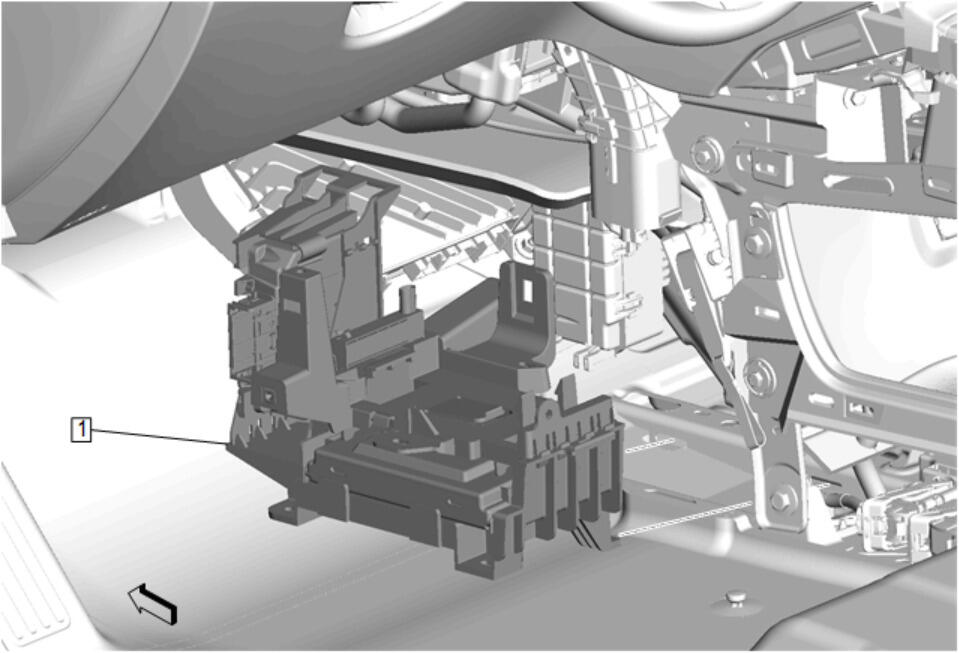

- Body Control Module Bracket (1) - InstallCAUTION:

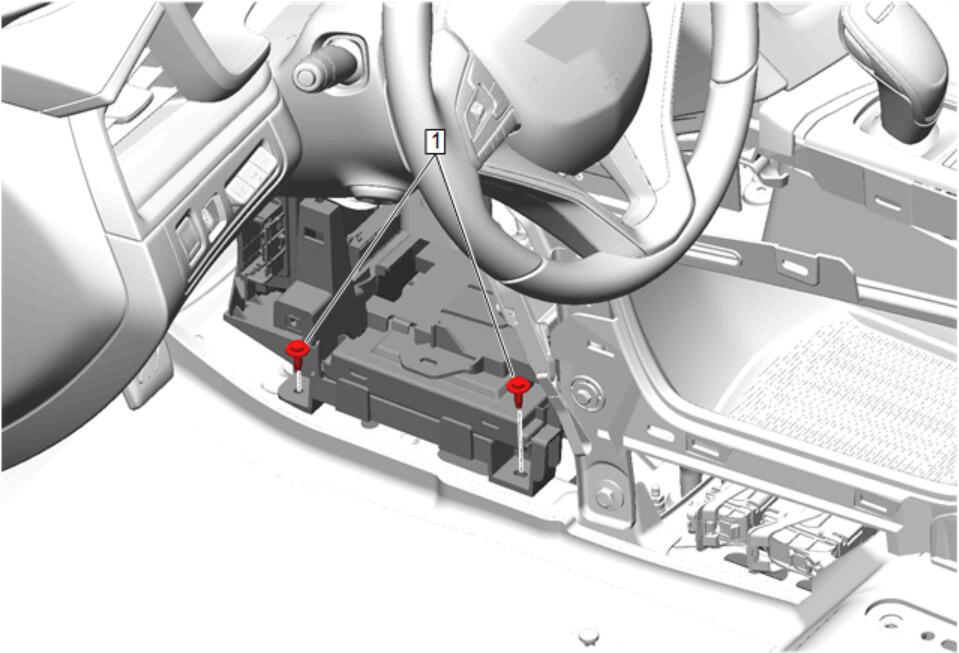

- Body Control Module Bracket Bolt (1) - Install and tighten [2x] 9N.m (80 lb in)

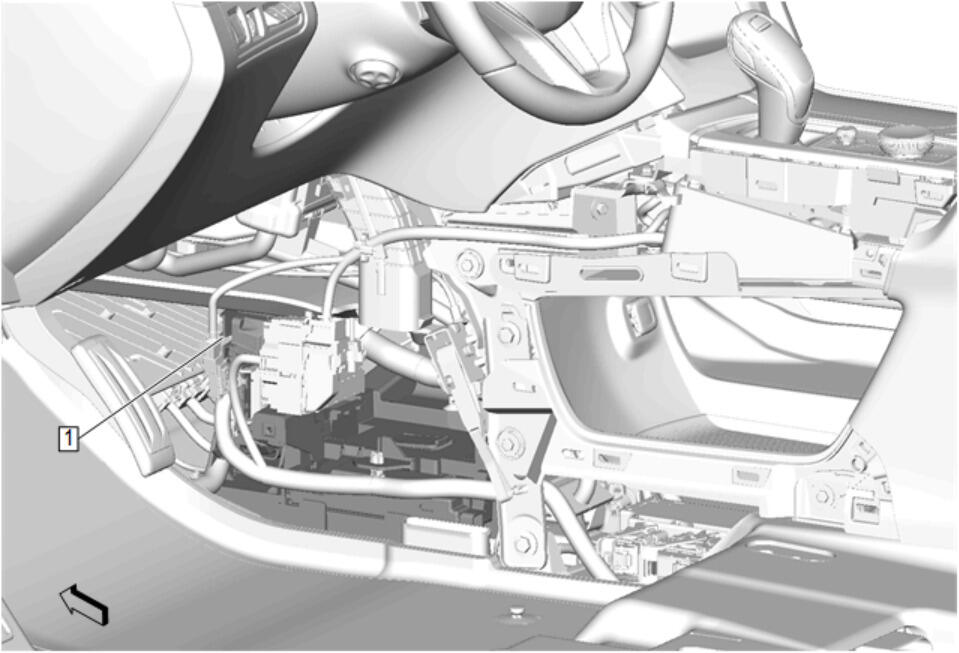

- Connect the harness to the body control module bracket (1).
- Install the floor rear air outlet duct adapter. Floor Rear Air Outlet Duct Replacement - Left Side

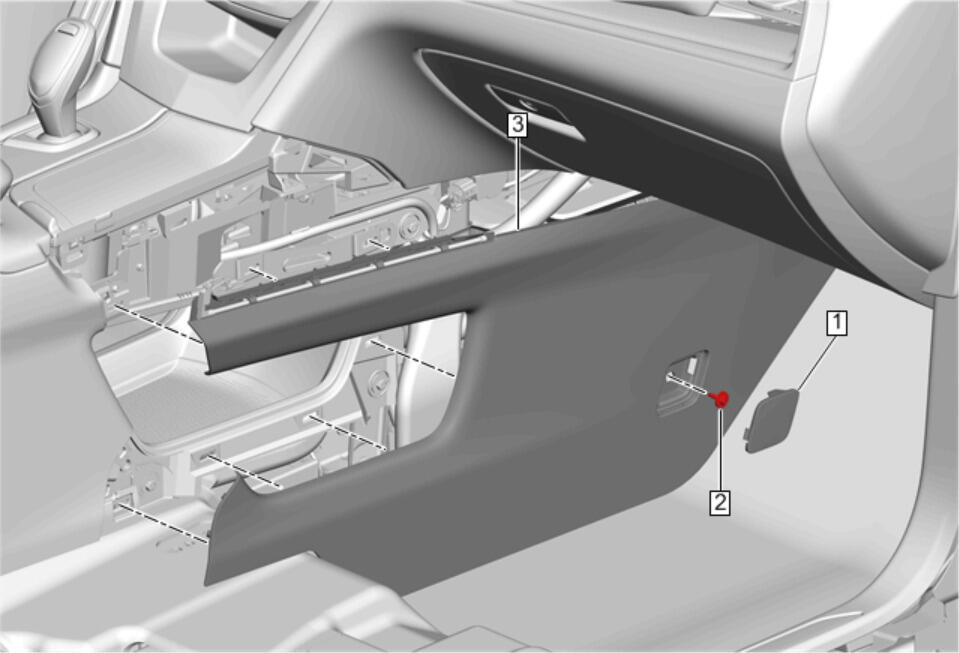

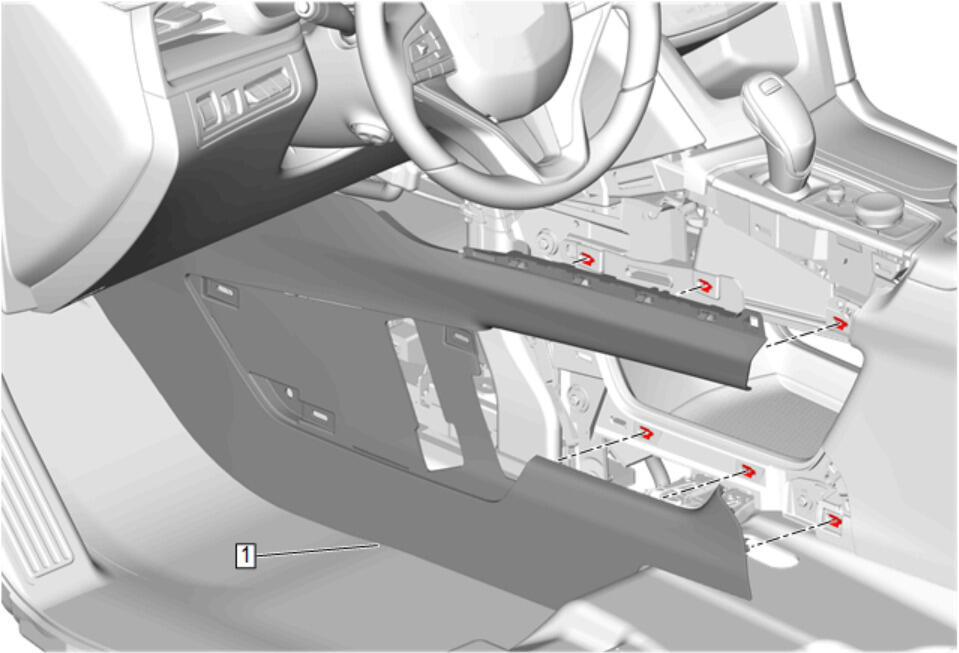

- Front Floor Console Extension Panel-Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side

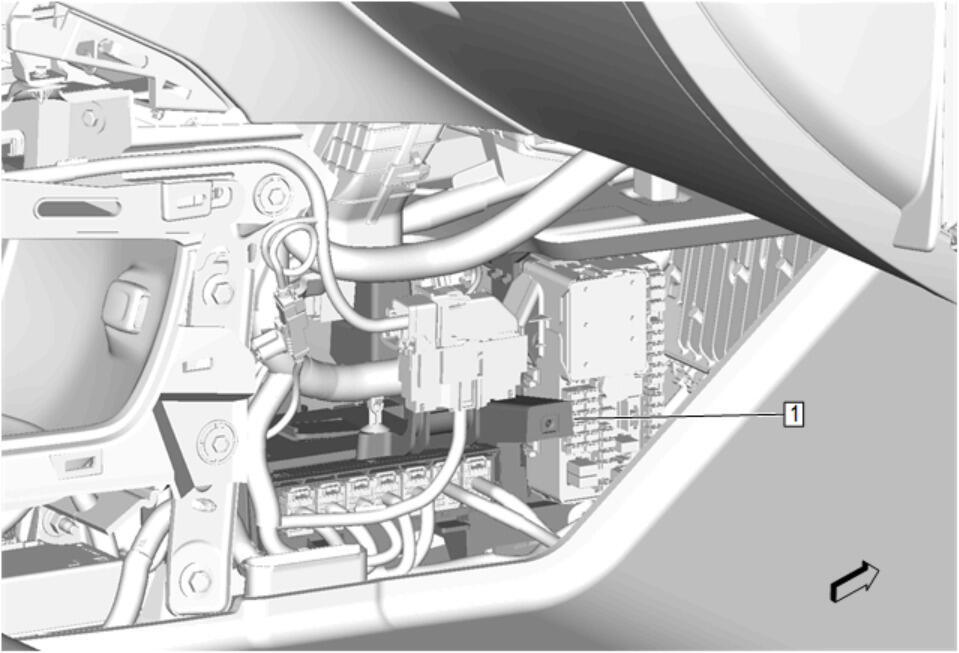

- Connect the harness to the body control module bracket (1).
- Install the floor rear air outlet duct adapter. Floor Rear Air Outlet Duct Replacement - Right Side
- Front Floor Console Extension Panel-Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side
