Windshield Multifunction Sensor Mount Bracket Cover Replacement
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal. |
|

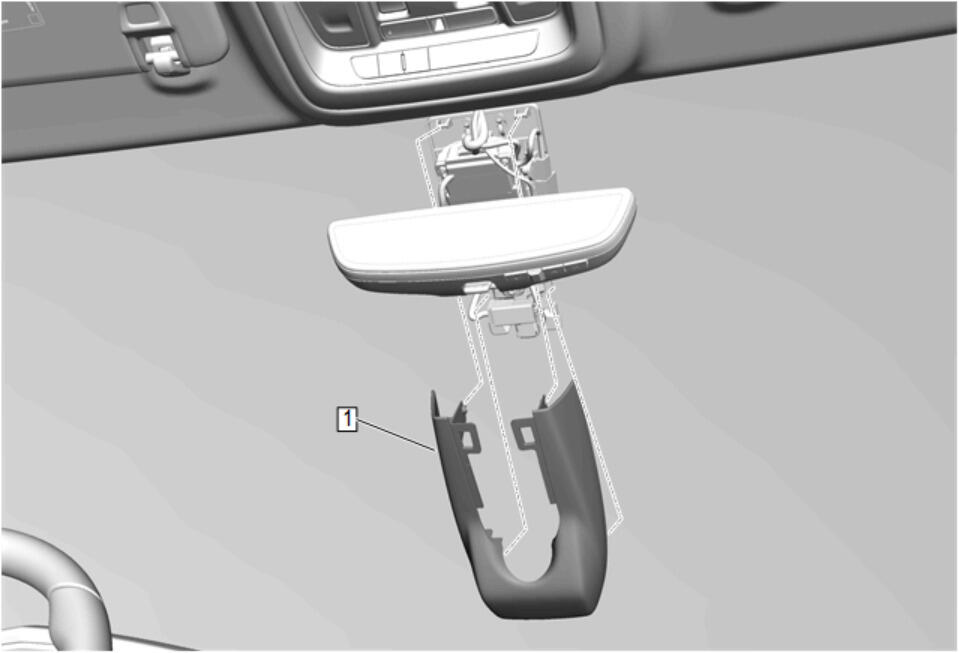

| 1 | Windshield Multifunction Sensor Mount Bracket Cover
NOTE:
The windshield multifunction sensor mount bracket cover and cover insert has to be removed as a single unit from the windshield surface to prevent damage to mirror. Procedure Pull downward to completely remove cover from windshield. |
