Installation Procedure

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

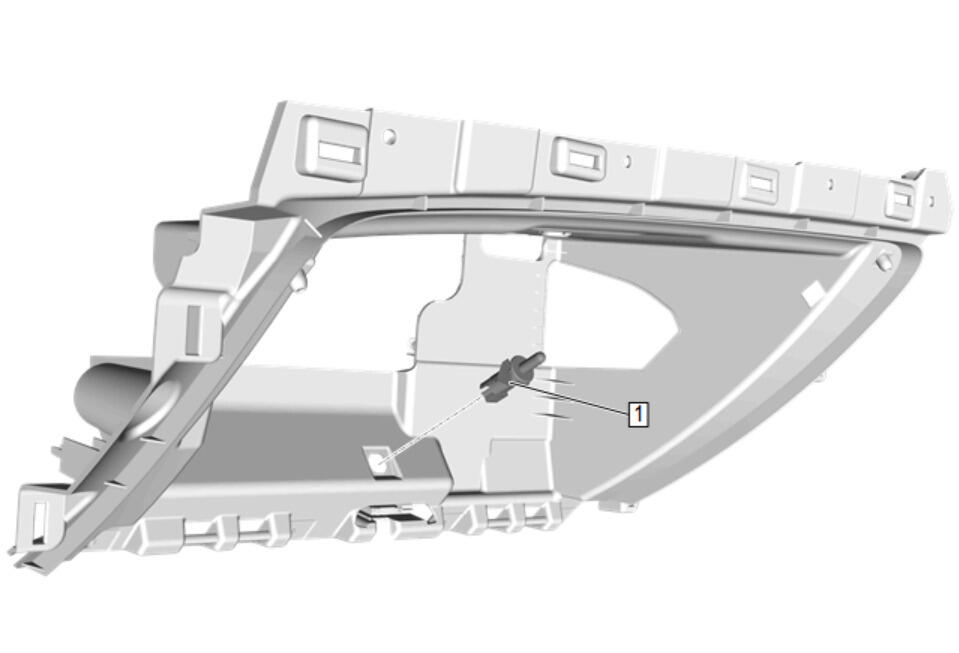

  1. GM5211535Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Lamp Switch (1) - Install

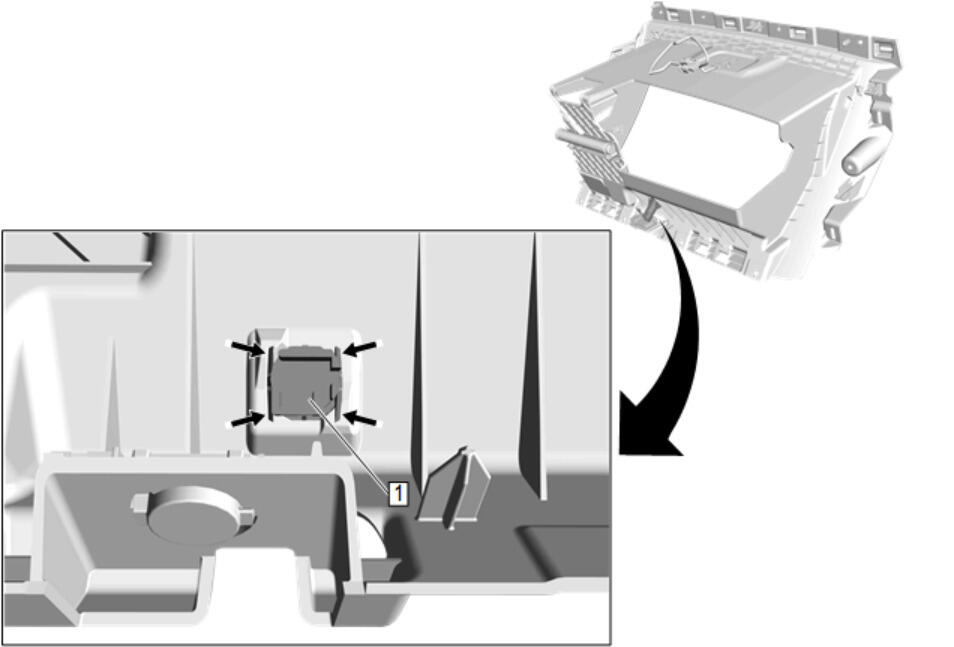

  2. GM5211532Courtesy of GENERAL MOTORS COMPANY

    Ensure the retaining tabs have properly secured.

  3. Close the instrument panel compartment door.

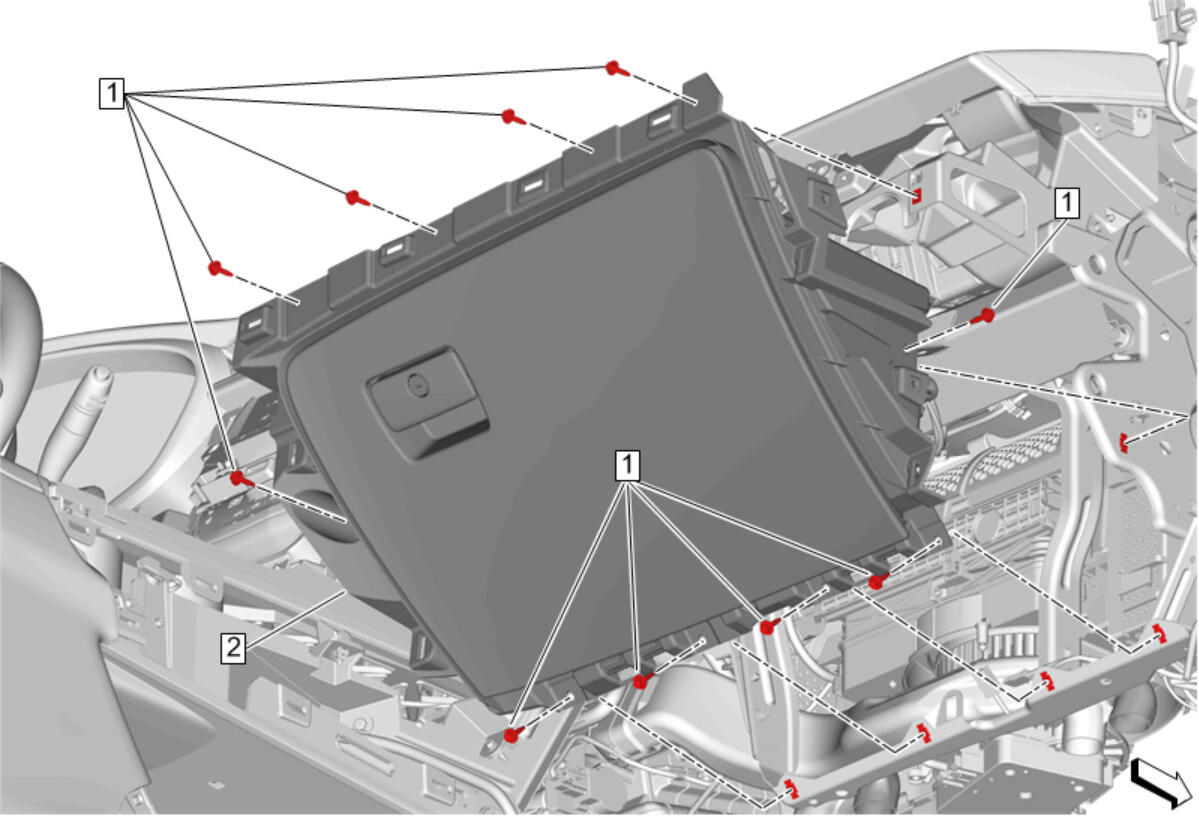

  4. GM4282999Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (2) - Install - Instrument Panel Compartment Replacement
