Installation Procedure
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connect the electrical connectors.

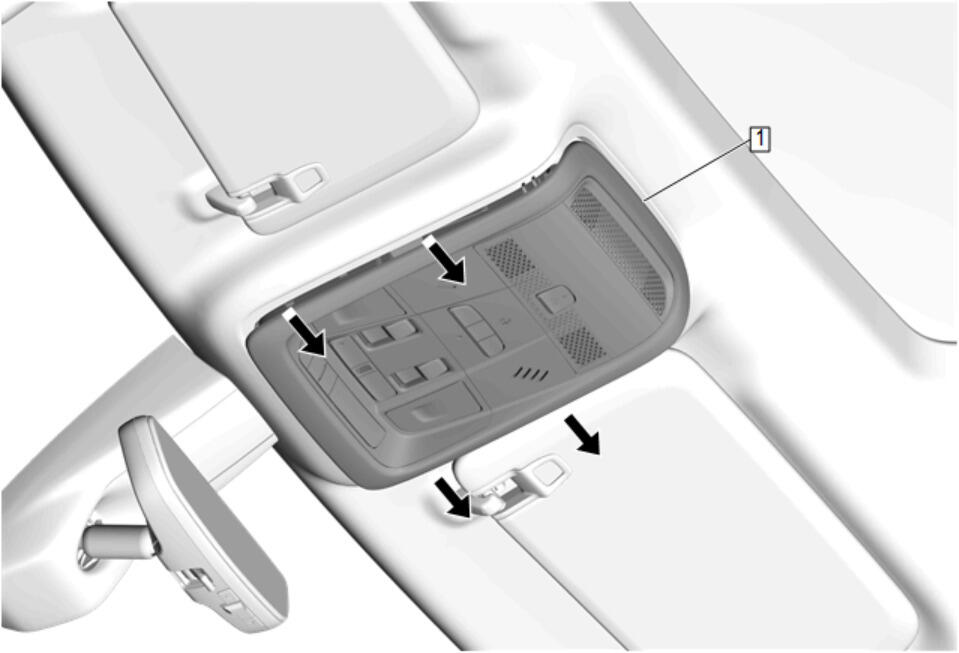

- Insert the forward roof console (1) tabs into the headliner.
 Courtesy of GENERAL MOTORS COMPANY
|

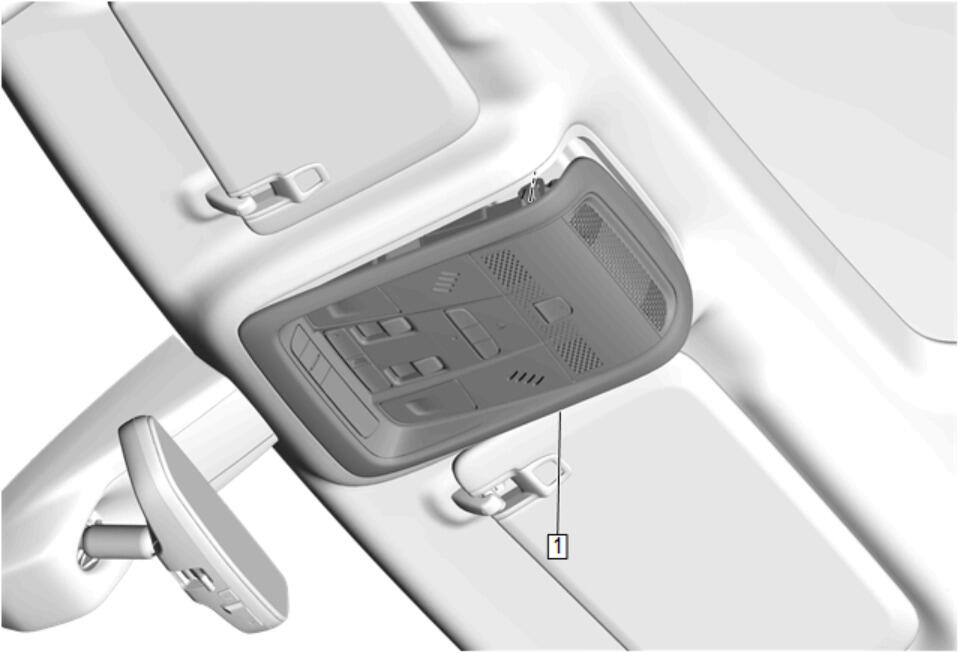

Install the rear side roof console (1) tabs into the headliner.
 Courtesy of GENERAL MOTORS COMPANY
|

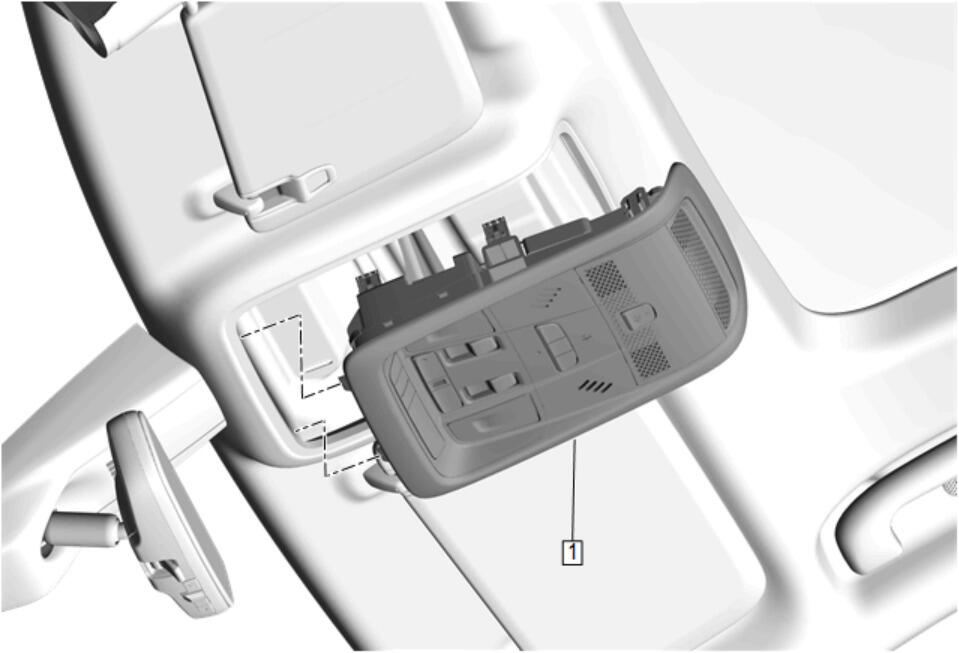

Roof Console (1) - Install
