Side View Driver Information Camera Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

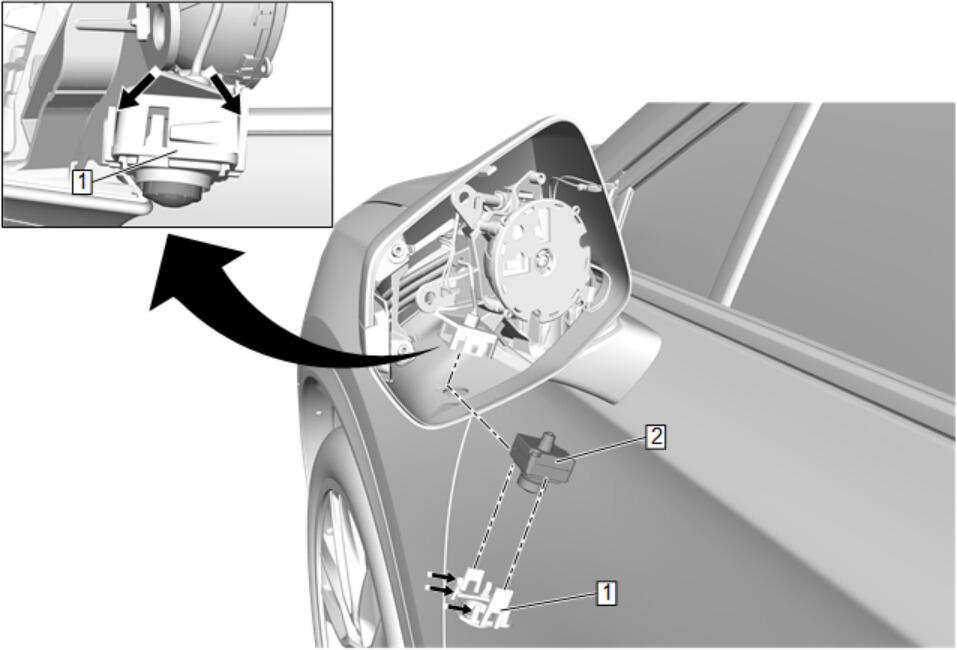

Callout	Component Name
Preliminary Procedure Outside Rearview Mirror Housing Bezel Replacement
1	Side View Driver Information Camera Bracket Procedure Release the side view driver Information camera bracket from the outside rearview Mirror housing.
2	Side View Driver Information Camera Procedure Disconnect the electrical Connector. Release the retaining tabs. Perform the camera calibration procedure. Video Processing Control Module Calibration

Callout

Component Name

Preliminary Procedure
Outside Rearview Mirror Housing Bezel Replacement

Side View Driver Information Camera Bracket
Procedure
Release the side view driver Information camera bracket from the outside rearview Mirror housing.

Side View Driver Information Camera

Procedure

Disconnect the electrical Connector.
Release the retaining tabs.
Perform the camera calibration procedure. Video Processing Control Module Calibration
