Installation Procedure

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

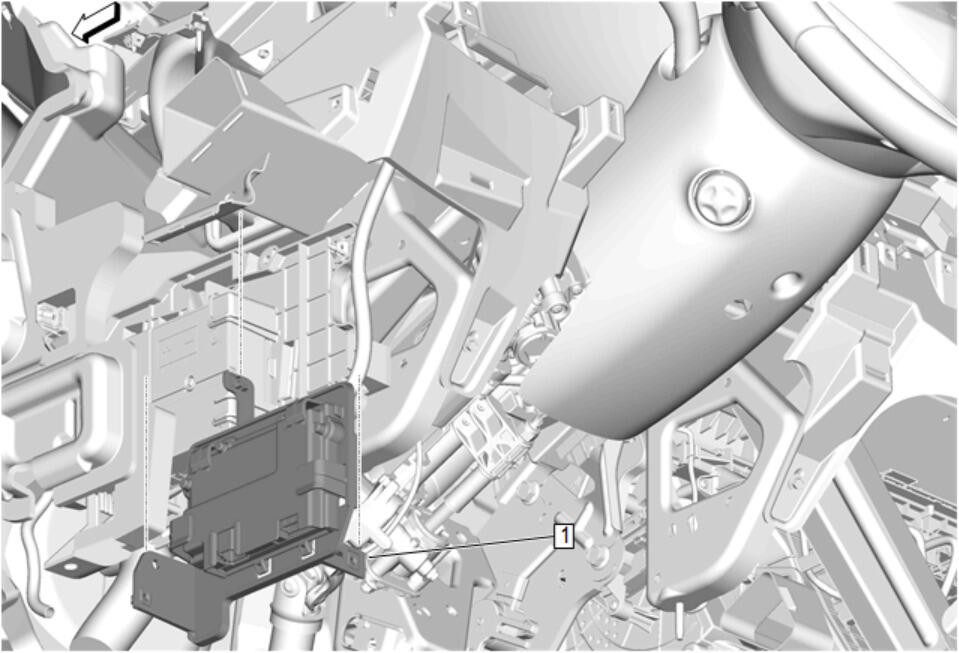

Night Vision Module Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

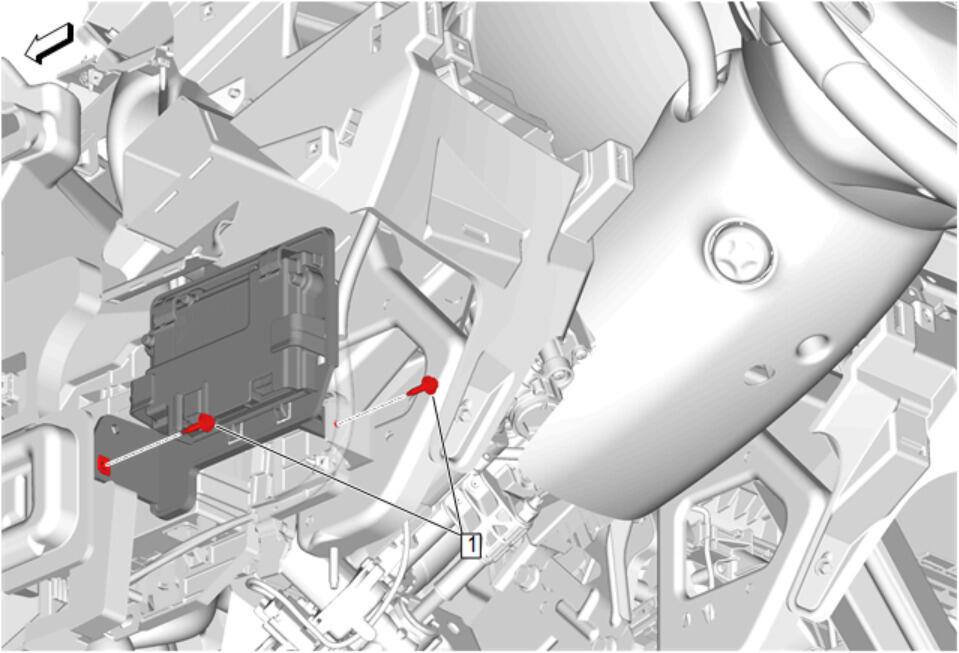

Night Vision Module Bracket Bolt (1) - Install and tighten [ 2x ] 2.5 N.m (22 lb in)
Connect and position the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

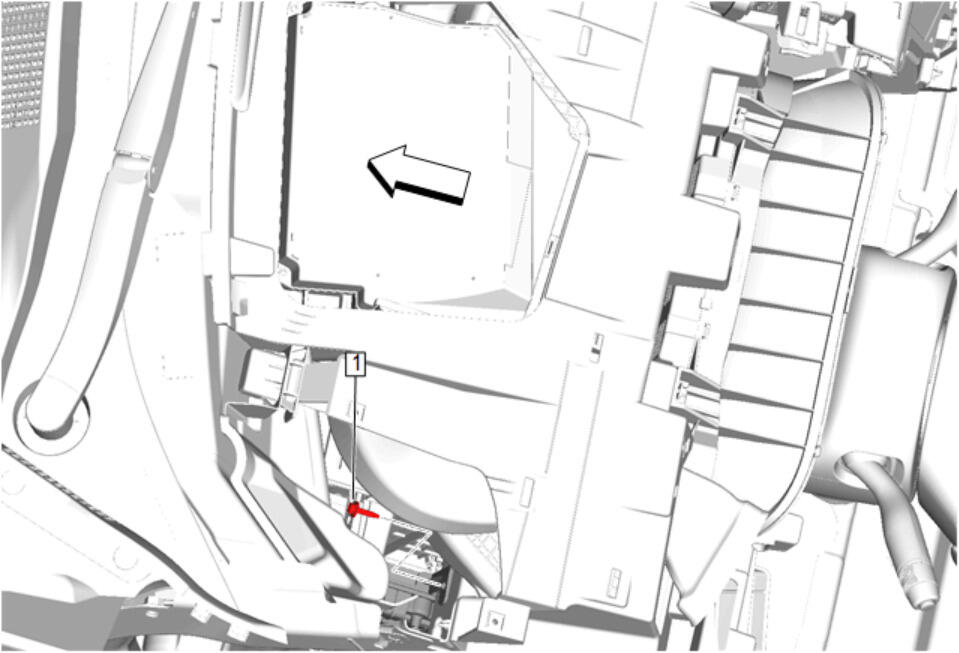

Night Vision Module Bracket Bolt (1) - Install and tighten 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Night Vision Module (1) - Install - Night Vision Control Module Replacement
