Front View Driver Information Camera Replacement
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

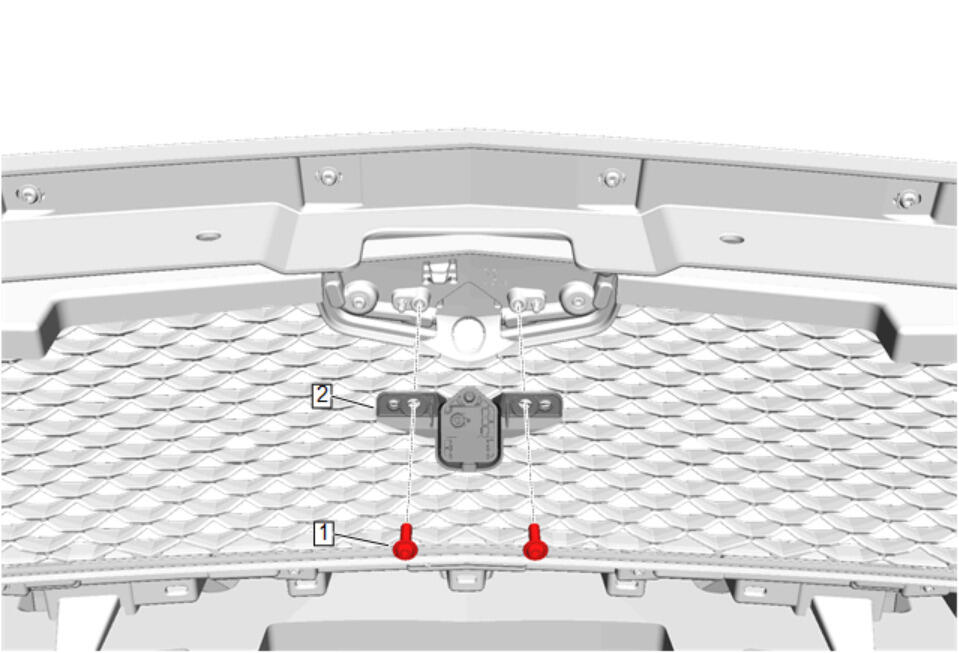

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Removal and Installation |
|
| 1 | Front View Camera Bracket Bolt [ 2x ]
CAUTION:
Refer to Fastener Caution . tighten 4.7 N.m (42 lb in) |
| 2 | Front View Driver Information Camera Procedure
|
