Front Compartment Splash Shield Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

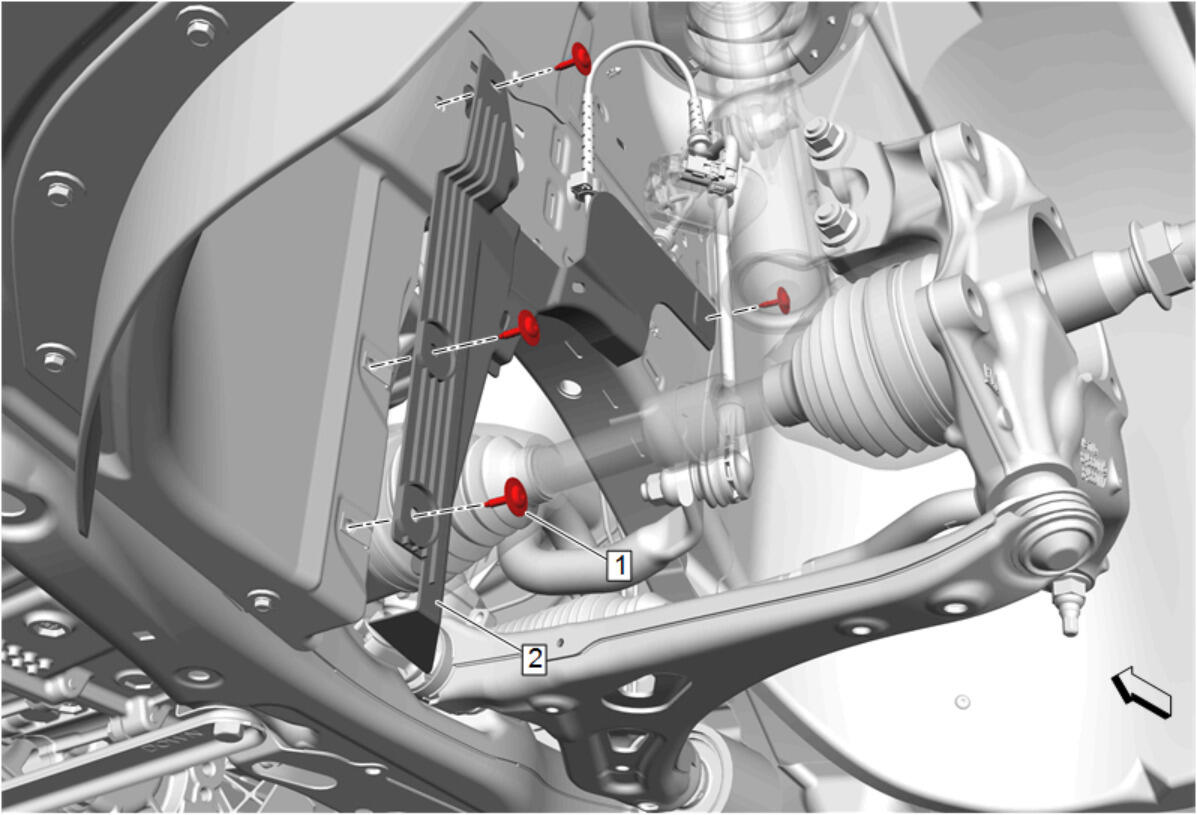

Callout	Component Name
Preliminary Procedure Front Suspension Automatic Forward Lighting Position Sensor Replacement
1	Front Compartment Splash Shield Bolt [ 4x ] CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Front Compartment Splash Shield Procedure Disconnect and reposition harness as necessary. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation

Callout

Component Name

Preliminary Procedure
Front Suspension Automatic Forward Lighting Position Sensor Replacement

Front Compartment Splash Shield Bolt [ 4x ]

CAUTION:

Refer to Fastener Caution

Tighten
2.5 N.m (22 lb in)

Front Compartment Splash Shield

Procedure

Disconnect and reposition harness as necessary.
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
