Backup Bulb Replacement
WARNING: This page is about a different car, the 2021 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

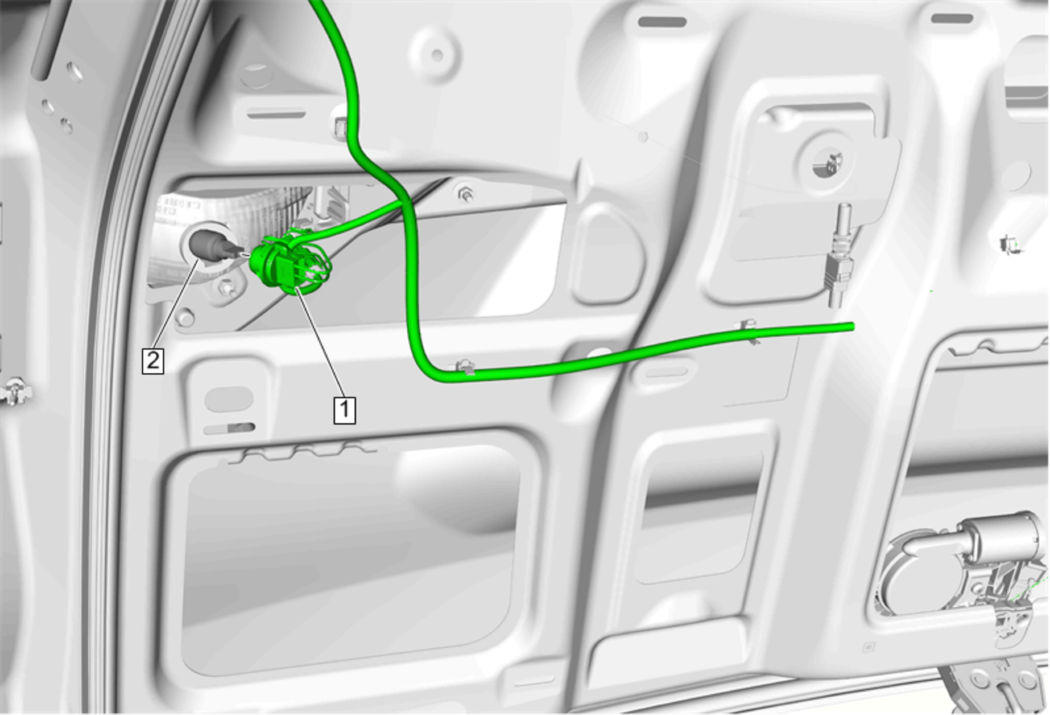

| Callout | Component Name |
|---|---|
| Preliminary Procedure Liftgate Lower Trim Finish Panel Replacement |
|
| 1 | Backup Lamp Wiring Harness Socket Procedure Rotate the bulb socket counterclockwise to remove it from the lamp housing. |
| 2 | Backup Bulb Procedure Pull the bulb from the bulb socket. |
