Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

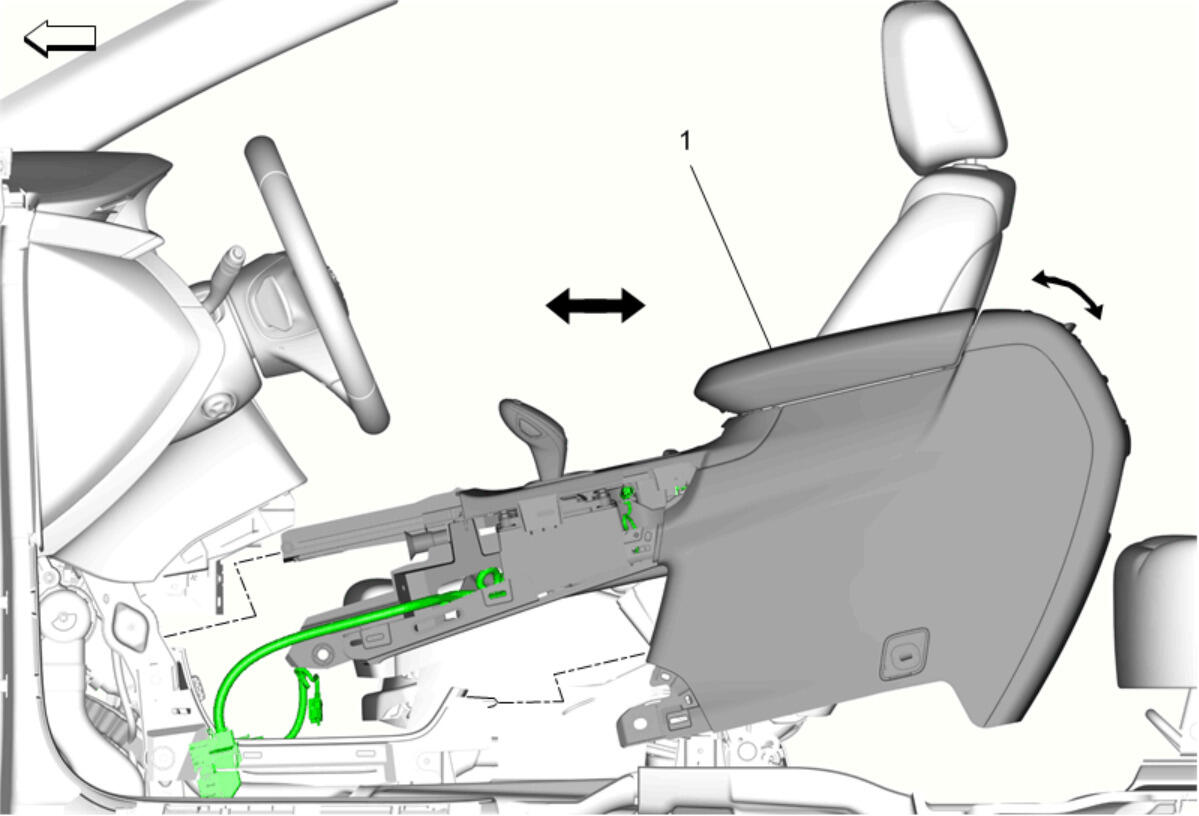

With the aid of an assistant, install the front floor console (1) into the vehicle.
- Carefully guide the floor console holder end into the instrument panel and line up the pin on the stowage tray.
- Connect the electrical connectors.
- CAUTION:
Refer to Fastener Caution .

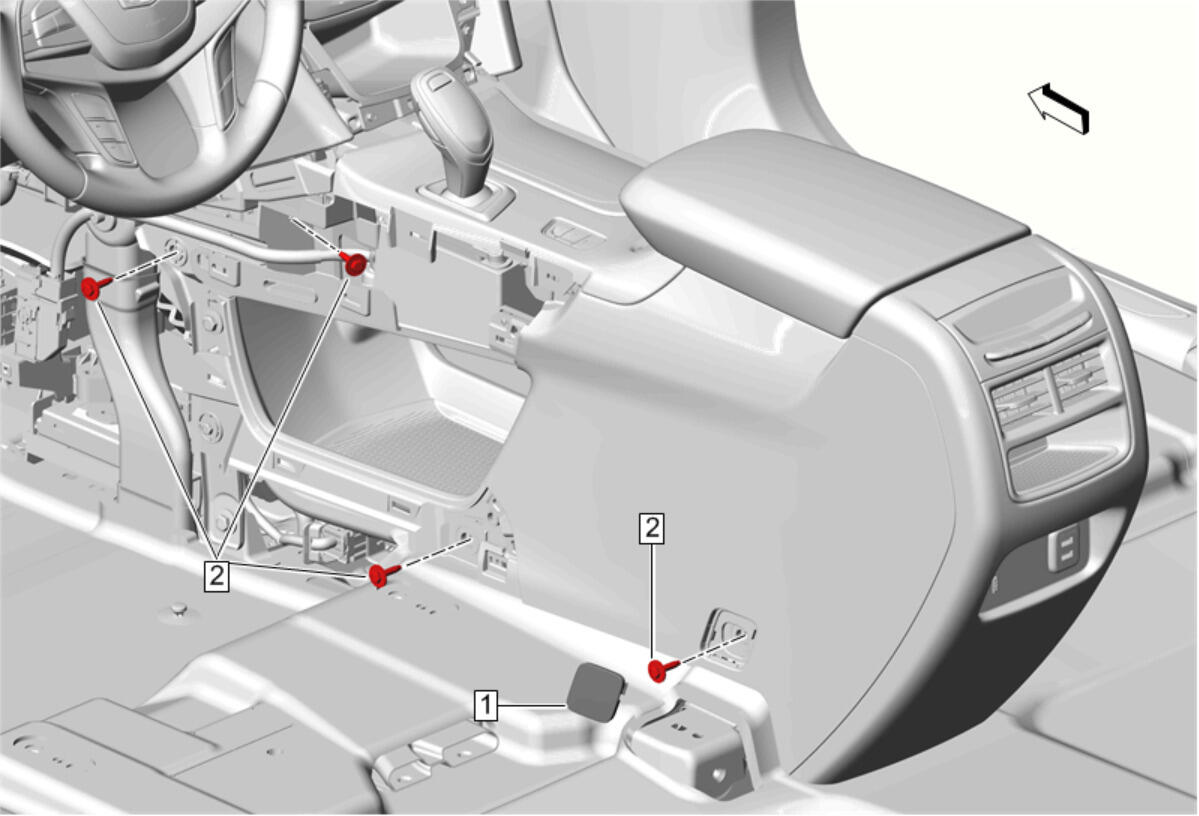

Front Floor Console Bolt (2) - Install and tighten [4x] 9 N.m (80 lb in)
- Front Floor Console Bolt Access Hole Cover (1) - Install

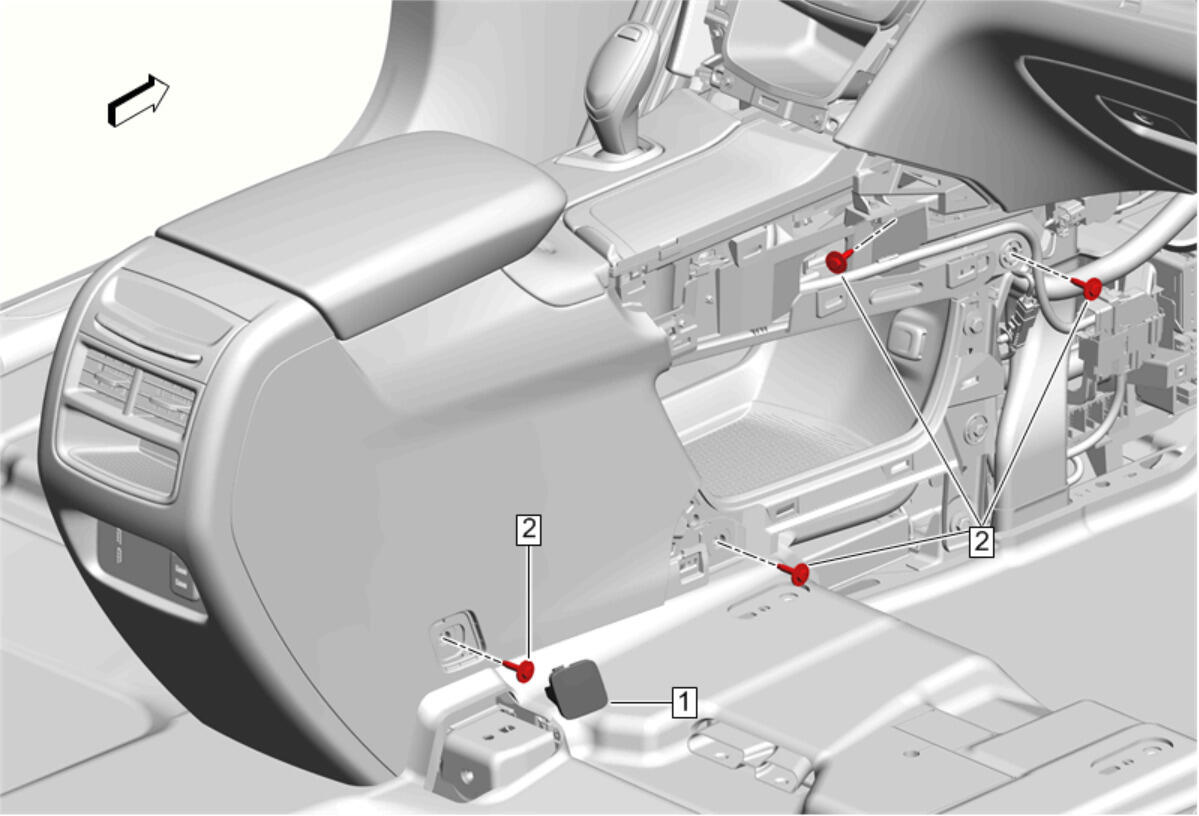

Front Floor Console Bolt (2) - Install and tighten [4x] 9 N.m (80 lb in)
- Front Floor Console Bolt Access Hole Cover (1) - Install

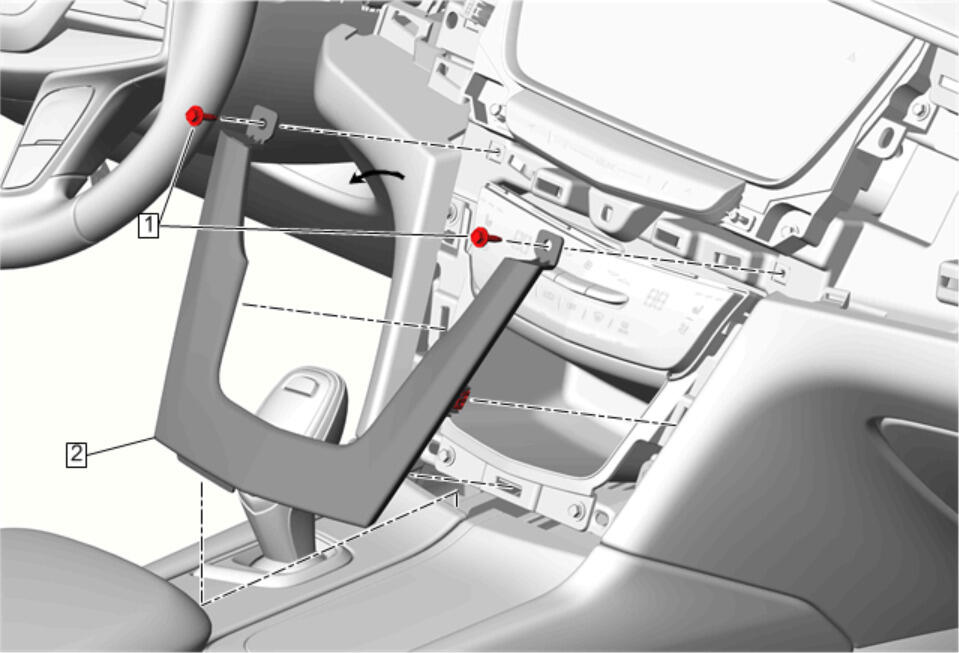

Instrument Panel Lower Center Trim Panel (2) - Install - Instrument Panel Lower Center Trim Panel Replacement
Front Floor Console Extension Panel - Right Side (3) - Install - Front Floor Console Extension Panel Replacement - Right Side
Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side
