Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

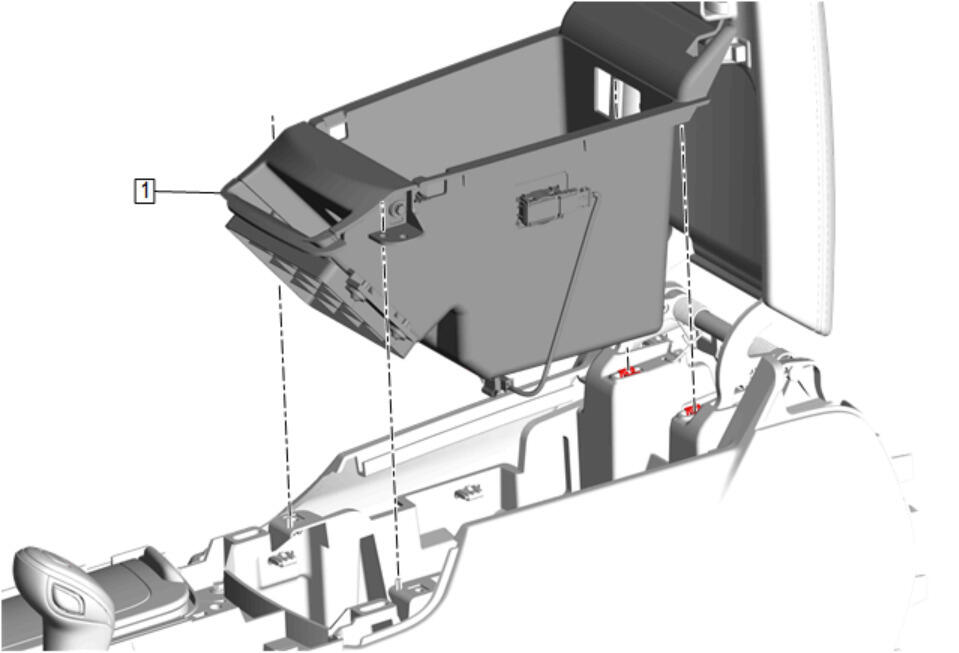

Front Floor Console Compartment (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

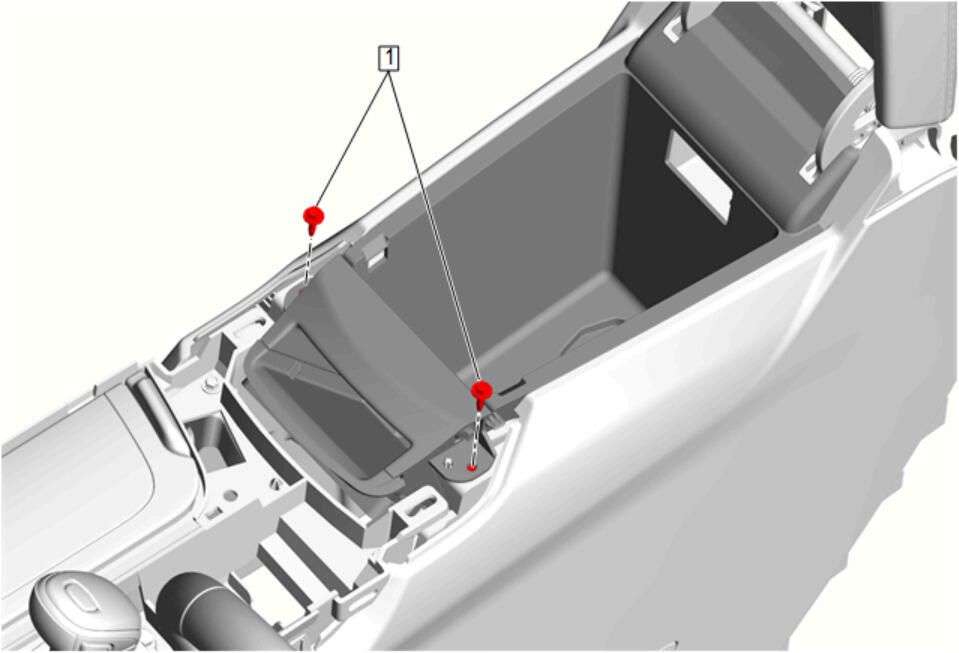

Front Floor Console Compartment Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

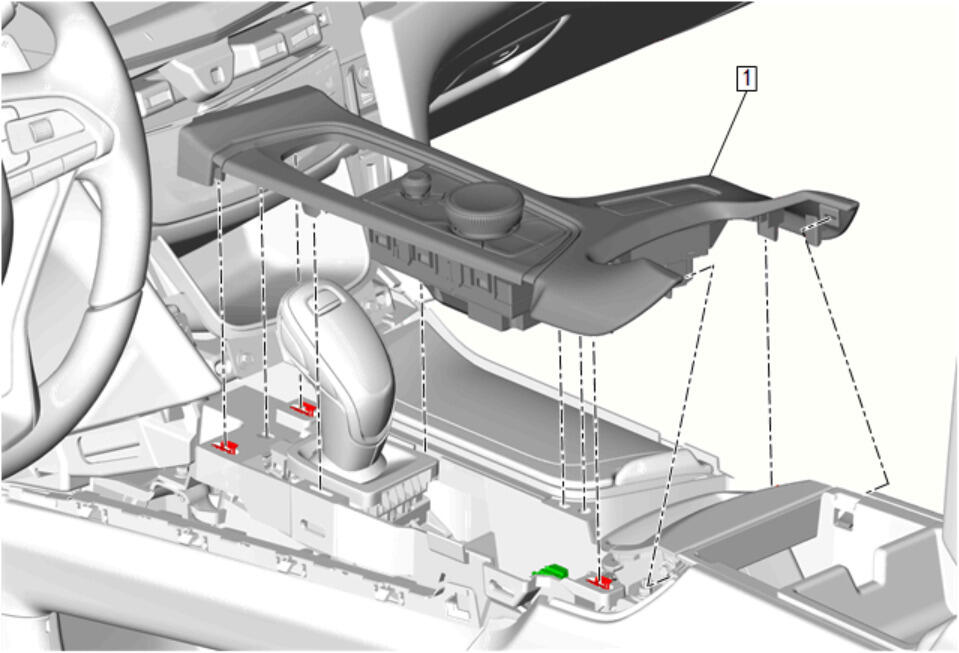

Front Floor Console Trim Plate (1) - Install - Front Floor Console Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Theft Deterrent Module (2) - Install - Theft Deterrent Module Replacement
Courtesy of GENERAL MOTORS COMPANY

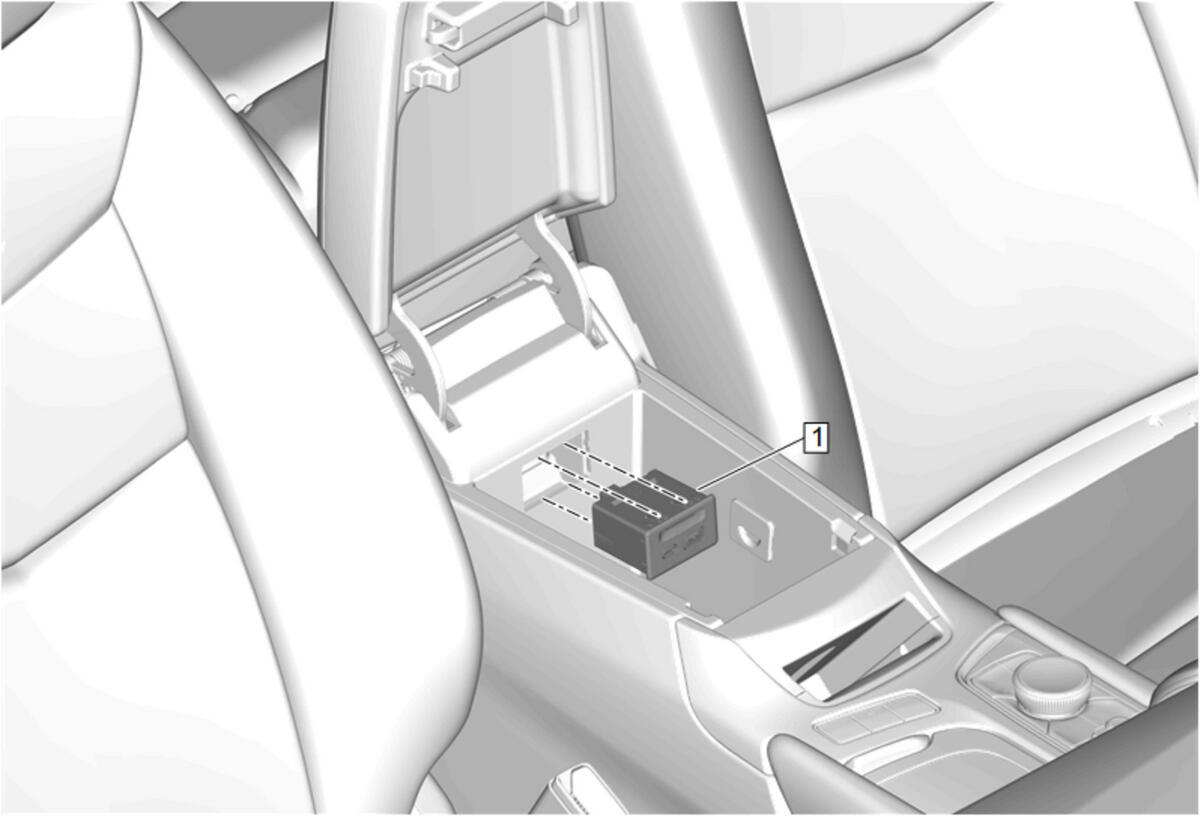

Audio Disc Player and USB Receptacle (1) - Install - Audio Disc Player and USB Receptacle Replacement
Courtesy of GENERAL MOTORS COMPANY

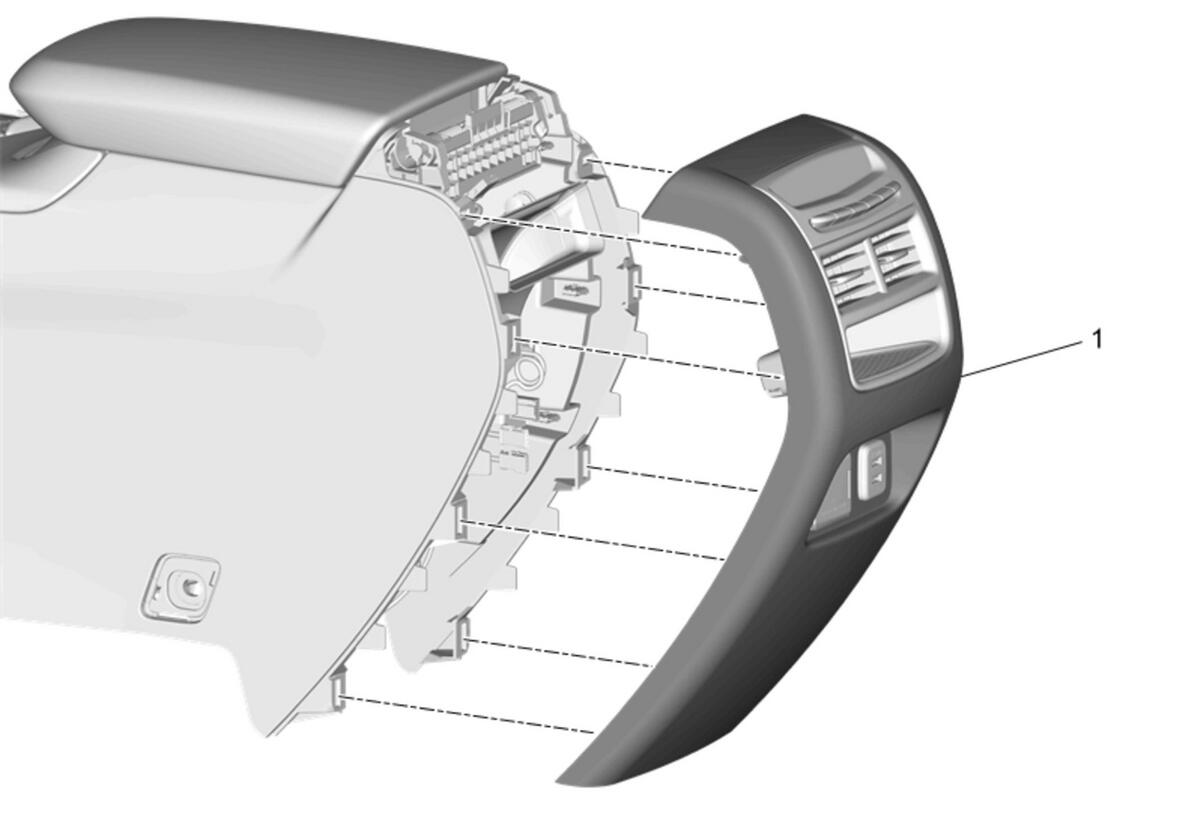

Front Floor Console Rear Trim Panel (1) - Install - Front Floor Console Rear Trim Panel Replacement
