Exhaust System Alignment

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner - Right Side (3) - Remove - Front Wheelhouse Liner Replacement

Courtesy of GENERAL MOTORS COMPANY
Exhaust Pipe Heat Shield (2) - Remove - Exhaust Pipe Heat Shield Replacement - Right Side (L5P)

Courtesy of GENERAL MOTORS COMPANY
Exhaust Front Pipe Nut (1) - Remove [2x] - Exhaust Front Bracket Replacement - Lower (L5P)

Courtesy of GENERAL MOTORS COMPANY
Loosen the lower exhaust front bracket to flywheel housing bolts (1) 1 / 4 turn each [2x].

Courtesy of GENERAL MOTORS COMPANY

NOTE:
If the stud plate assembly cannot be removed, further loosen the lower exhaust front bracket to flywheel housing bolts, remove the stud plate assembly, then hand tighten the bolts and reverse 1 / 4 turn.
Exhaust Front Pipe Stud Plate Assembly (1) - Remove

Courtesy of GENERAL MOTORS COMPANY

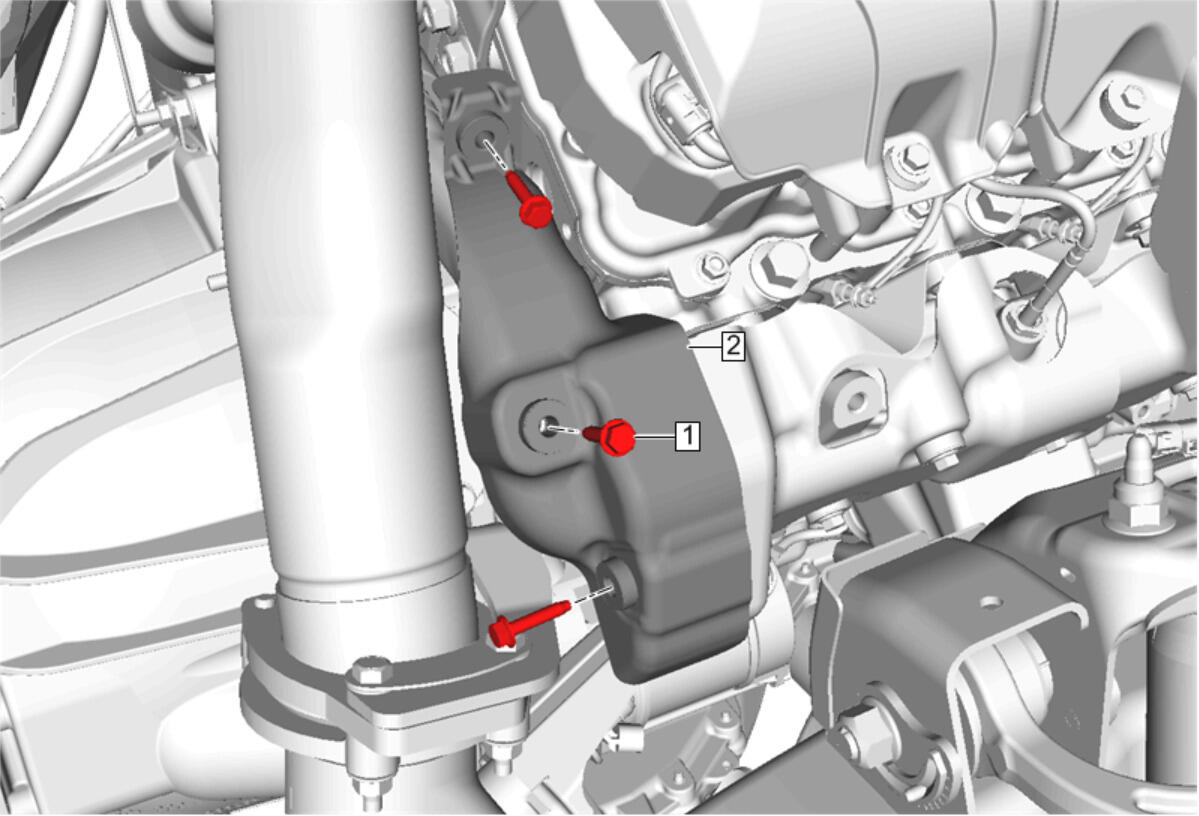

Exhaust Front Bracket Bolt - Upper (1) - Loosen [4x] - Exhaust Front Bracket Replacement - Upper (L5P)

Courtesy of GENERAL MOTORS COMPANY
Loosen the catalytic converter clamp (1) approximately 3.5 turns or just enough to allow the exhaust front pipe flange to rotate.

Courtesy of GENERAL MOTORS COMPANY
Loosen the turbocharger to catalytic converter clamp (1) approximately 3.5 turns or just enough to allow the converter flange to rotate.

Courtesy of GENERAL MOTORS COMPANY
Adjust the alignment of the exhaust front pipe (1) to catalytic converter by rotating, raising or lowering the pipe until the holes of the lower flange align with the lower exhaust front bracket (2).
Use vise grips to clamp the lower exhaust front bracket to the exhaust front pipe flange.

Courtesy of GENERAL MOTORS COMPANY
Catalytic Converter Clamp (1) - tighten - Exhaust Front Pipe Replacement

Courtesy of GENERAL MOTORS COMPANY
Catalytic Converter Clamp (1) - tighten - Oxidation Catalytic Converter Replacement

Courtesy of GENERAL MOTORS COMPANY
Exhaust Front Bracket Bolt - Lower (1) - tighten [2x] - Exhaust Front Bracket Replacement - Lower (L5P)
Remove the vise grips.

Courtesy of GENERAL MOTORS COMPANY
Install the exhaust front pipe stud plate assembly (1) through the exhaust front bracket and exhaust front pipe flange holes.

Courtesy of GENERAL MOTORS COMPANY
Exhaust Front Bracket Bolt - Upper (1) - tighten [4x] - Exhaust Front Bracket Replacement - Upper (L5P)

Courtesy of GENERAL MOTORS COMPANY
Exhaust Front Pipe Nut (1) - tighten [2x] - Exhaust Front Bracket Replacement - Lower (L5P)

Courtesy of GENERAL MOTORS COMPANY
Exhaust Pipe Heat Shield (2) - Install - Exhaust Pipe Heat Shield Replacement - Right Side (L5P)

Courtesy of GENERAL MOTORS COMPANY
Front Wheelhouse Liner - Right Side (3) - Install - Front Wheelhouse Liner Replacement
