Side View Driver Information Camera Replacement
WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

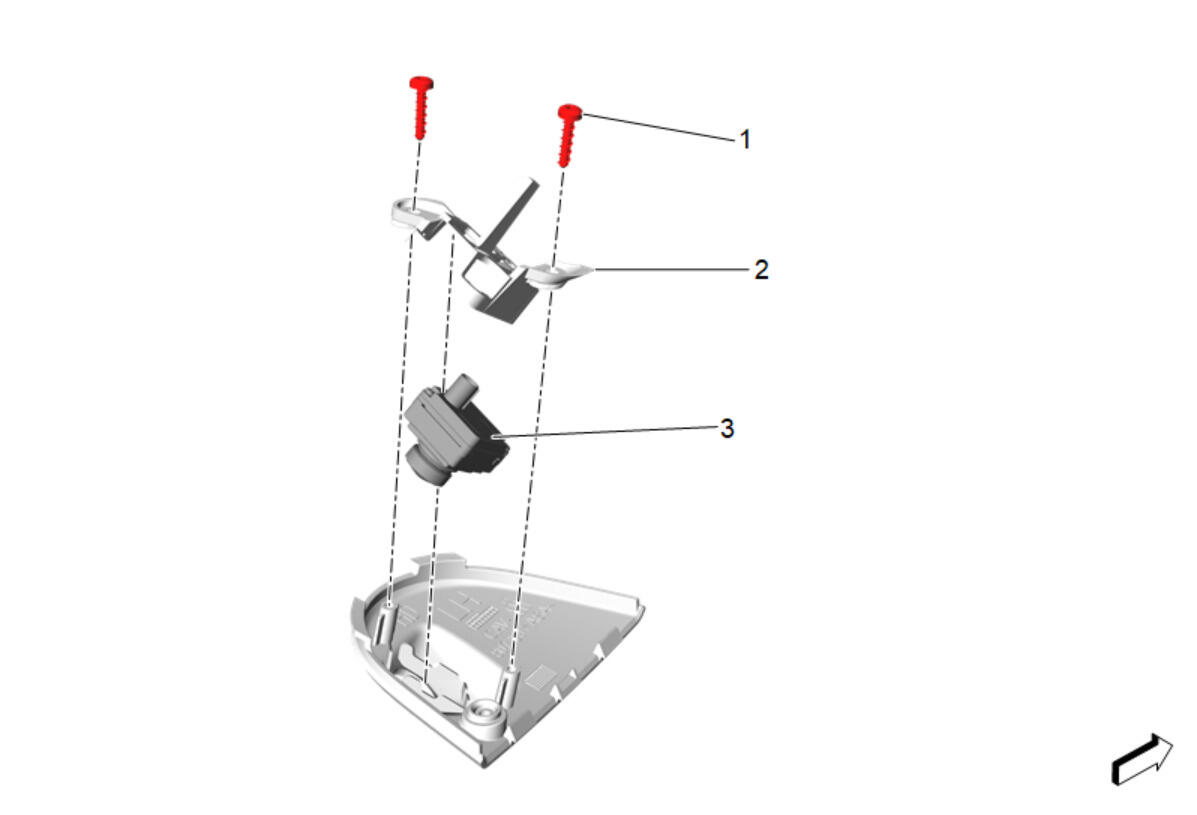

| Callout | Component Name |
|---|---|
| Preliminary Procedure Outside Rearview Mirror Bracket Cover Replacement |
|
| 1 | Side View Driver Information Camera Bracket Screw [ 2x ]
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Side View Driver Information Camera Bracket |
| 3 | Side View Driver Information Camera Procedure Note the mounting of the camera to ensure proper reinstallation. |
