Front View Driver Information Camera Replacement

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

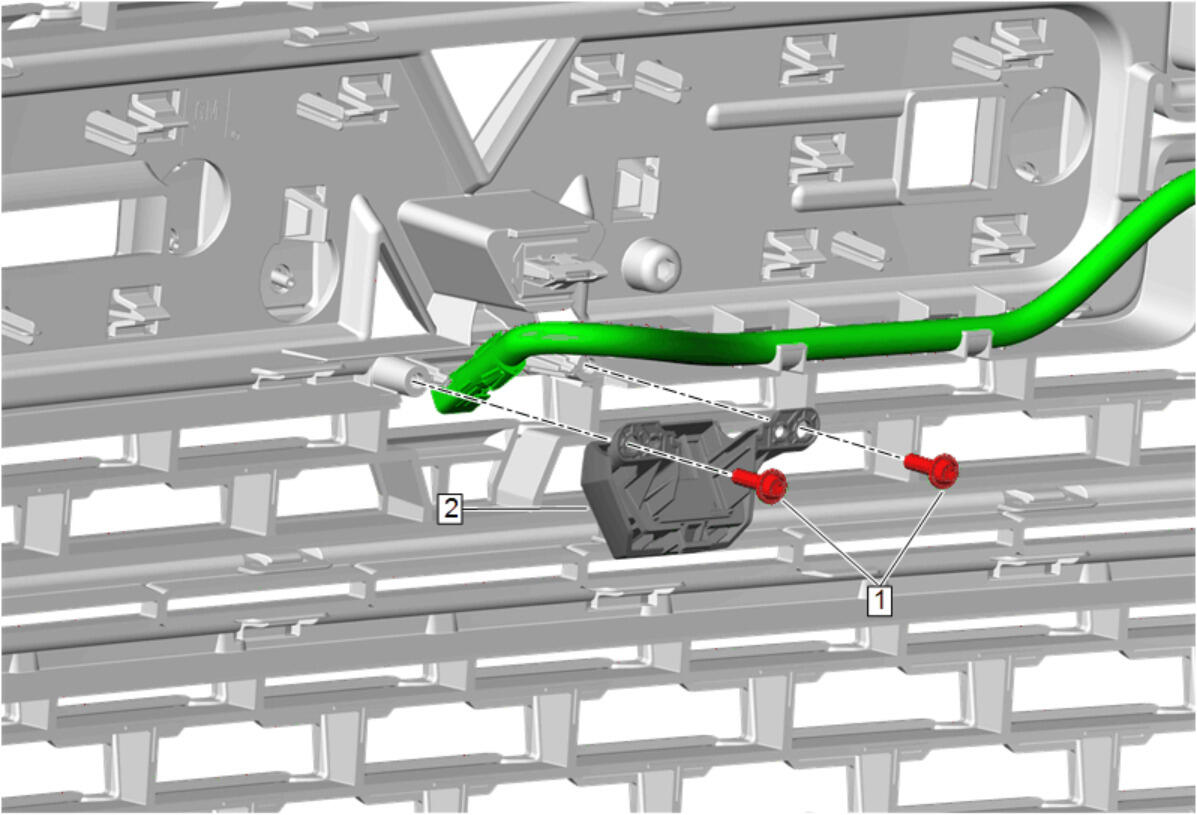

Callout	Component Name
Preliminary Procedure Front Grille Replacement
1	Front Grille Bolt [ 2x ] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Front View Driver Information Camera Procedure Disconnect the electrical connector. After installation, perform the video processing control module calibration. Video Processing Control Module Calibration

Callout

Component Name

Preliminary Procedure
Front Grille Replacement

Front Grille Bolt [ 2x ]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Front View Driver Information Camera

Procedure

Disconnect the electrical connector.
After installation, perform the video processing control module calibration. Video Processing Control Module Calibration
