Front Seat Adjuster Memory Switch Replacement

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement (Power)Front Side Door Trim Replacement (Manual)

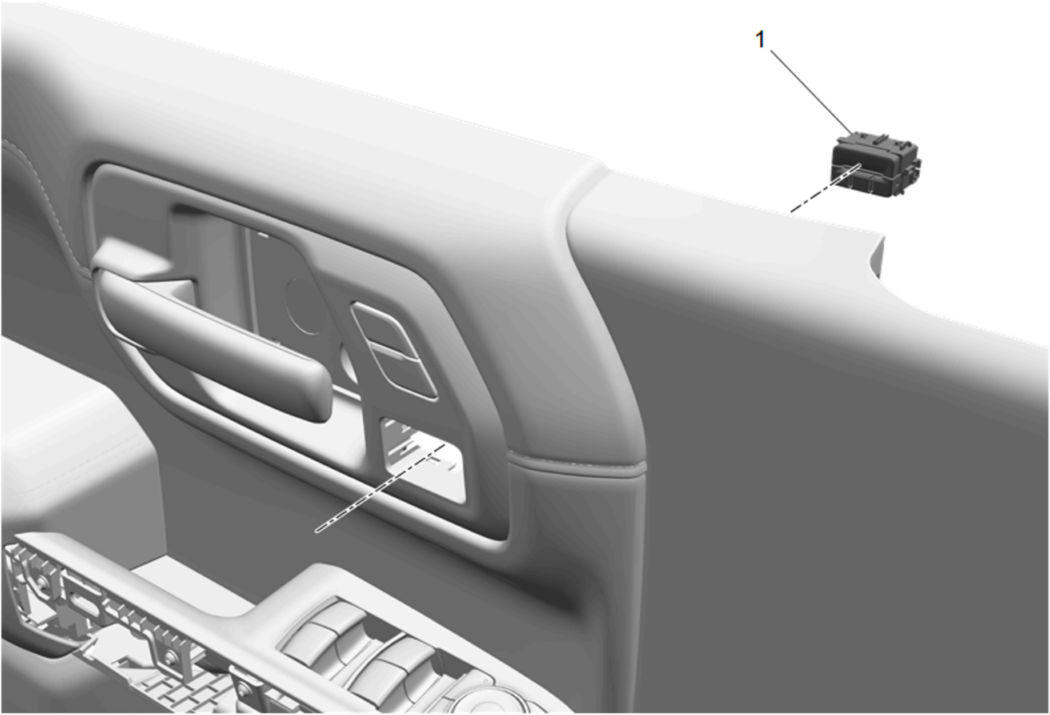

1	Front Seat Adjuster Memory Switch Procedure Use a plastic trim tool to release the switch from the door trim. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Front Side Door Trim Replacement (Power)Front Side Door Trim Replacement (Manual)

Front Seat Adjuster Memory Switch

Procedure

Use a plastic trim tool to release the switch from the door trim.
Disconnect the electrical connector.
