Front Seat Adjuster Memory Module Bracket Replacement

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

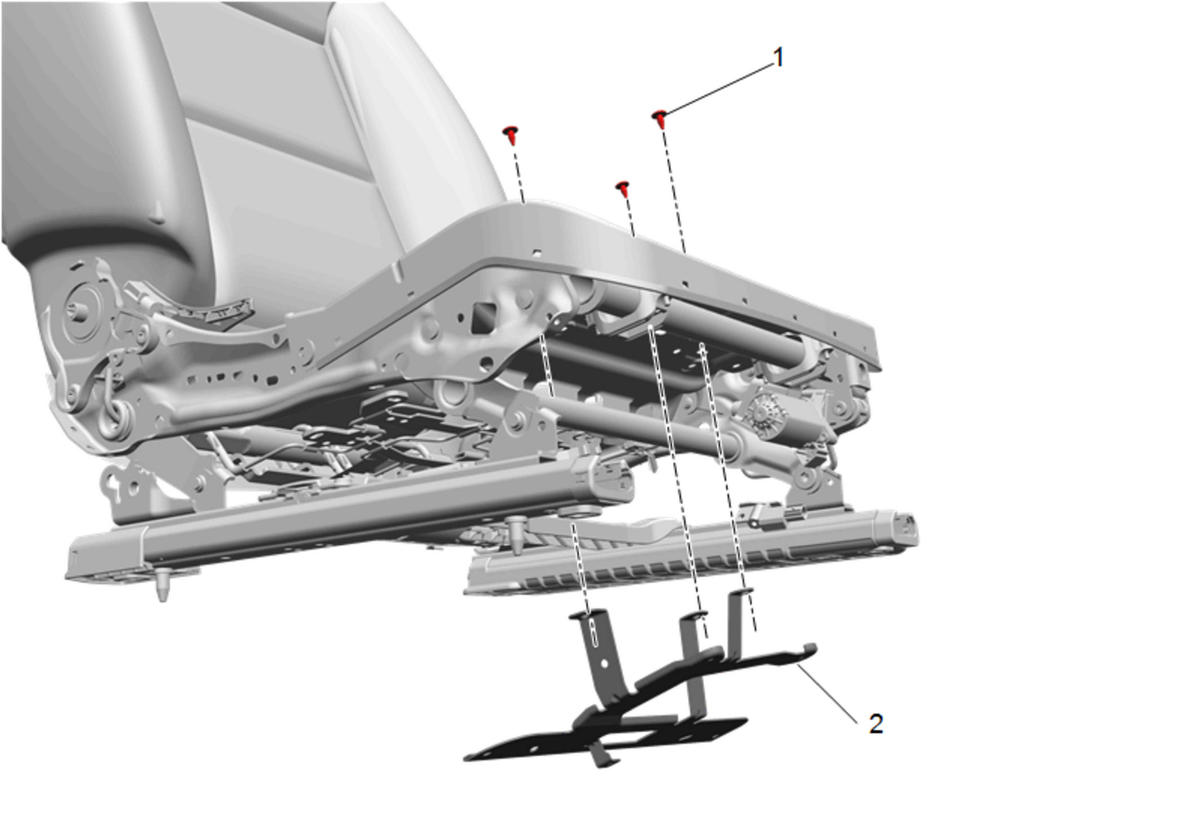

Callout	Component Name
Preliminary Procedures Front Seat Cushion Cover and Pad Replacement Driver Seat Adjuster Memory Module Replacement
1	Front Seat Adjuster Memory Module Bracket Fastener [ 3x ] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Adjuster Memory Module Bracket

Callout

Component Name

Preliminary Procedures

Front Seat Cushion Cover and Pad Replacement
Driver Seat Adjuster Memory Module Replacement

Front Seat Adjuster Memory Module Bracket Fastener [ 3x ]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Front Seat Adjuster Memory Module Bracket
