Body Control Module Bracket Replacement

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

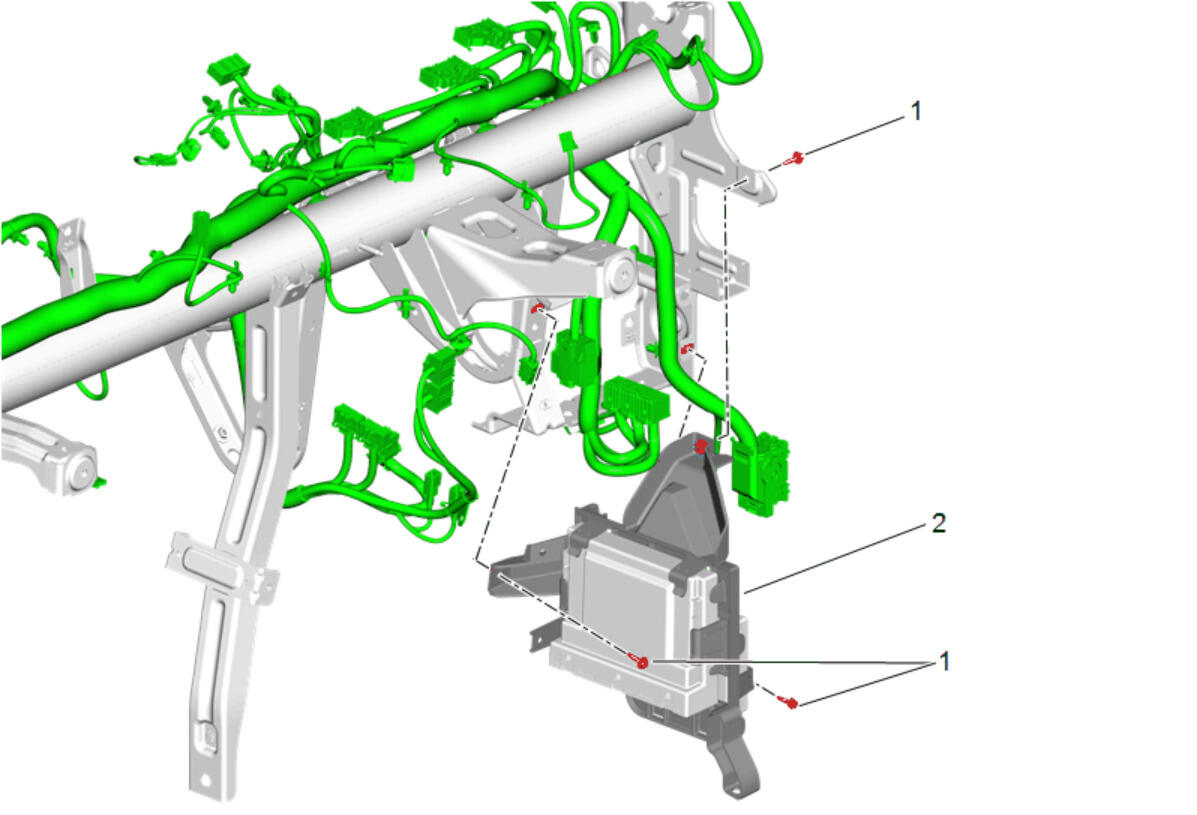

Callout	Component Name
Preliminary Procedure Instrument Panel Tie Bar Replacement
1	Body Control Module Bracket Bolt [ 3x ] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb/in)
2	Body Control Module Bracket Procedure Disconnect the electrical connectors. Reposition the wiring harness. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Instrument Panel Tie Bar Replacement

Body Control Module Bracket Bolt [ 3x ]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb/in)

Body Control Module Bracket

Procedure

Disconnect the electrical connectors.
Reposition the wiring harness.
Transfer components as necessary.
