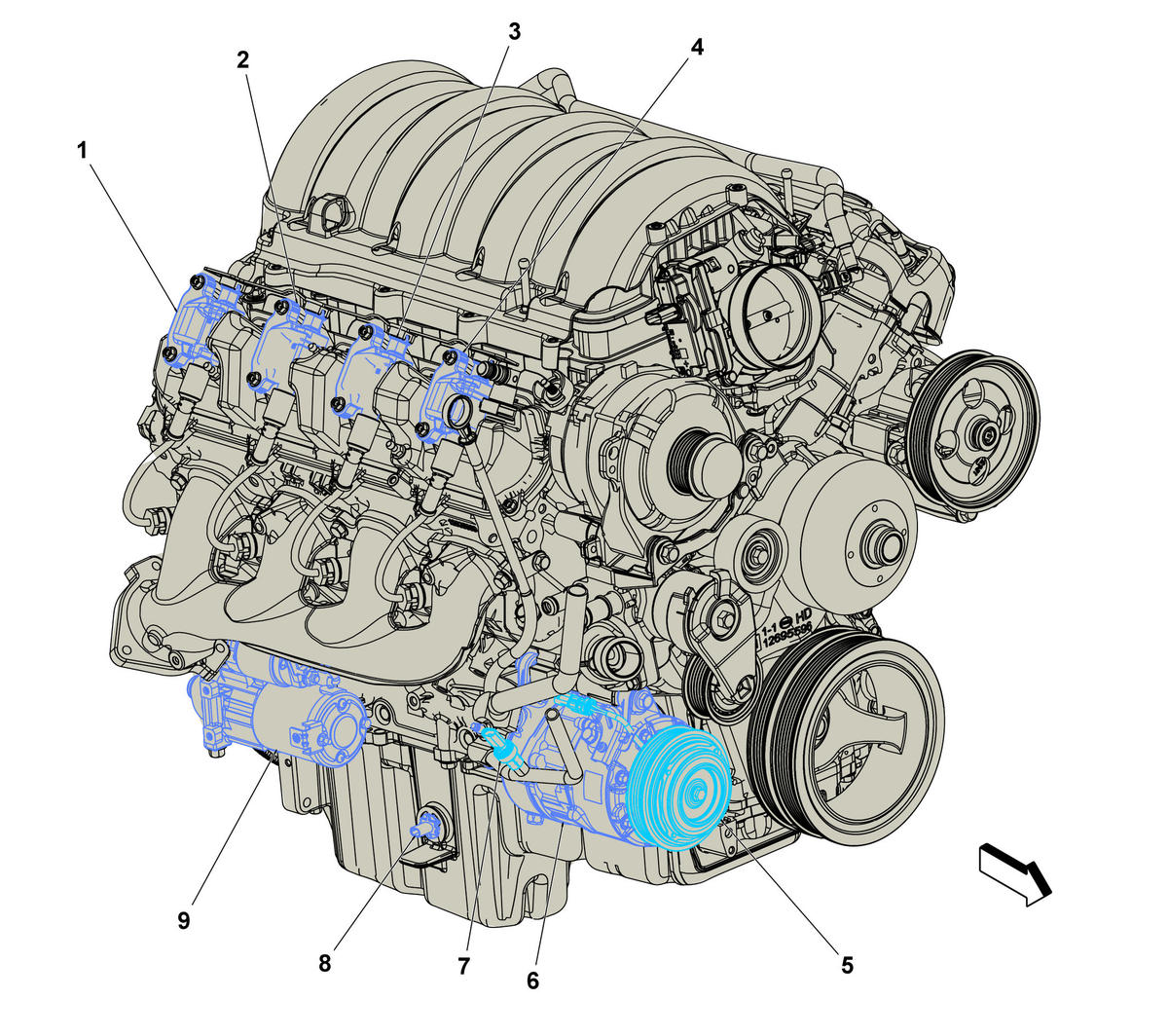

Engine Components - Right Front (L8T)
WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. T8H Ignition Coil 8 (L8T) T8H Ignition Coil 8 (L8T) |
| 2. T8F Ignition Coil 6 (L8T) T8F Ignition Coil 6 (L8T) |
| 3. T8D Ignition Coil 4 (L8T) T8D Ignition Coil 4 (L8T) |
| 4. T8B Ignition Coil 2 (L8T) T8B Ignition Coil 2 (L8T) |
| 5. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch () |
| 6. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 7. B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor |
| 8. B35 Engine Oil Level Switch B35 Engine Oil Level Switch (L5P)B35 Engine Oil Level Switch (L8T) |
| 9. M64 Starter Motor M64 Starter Motor X1 ()M64 Starter Motor X2 () |
