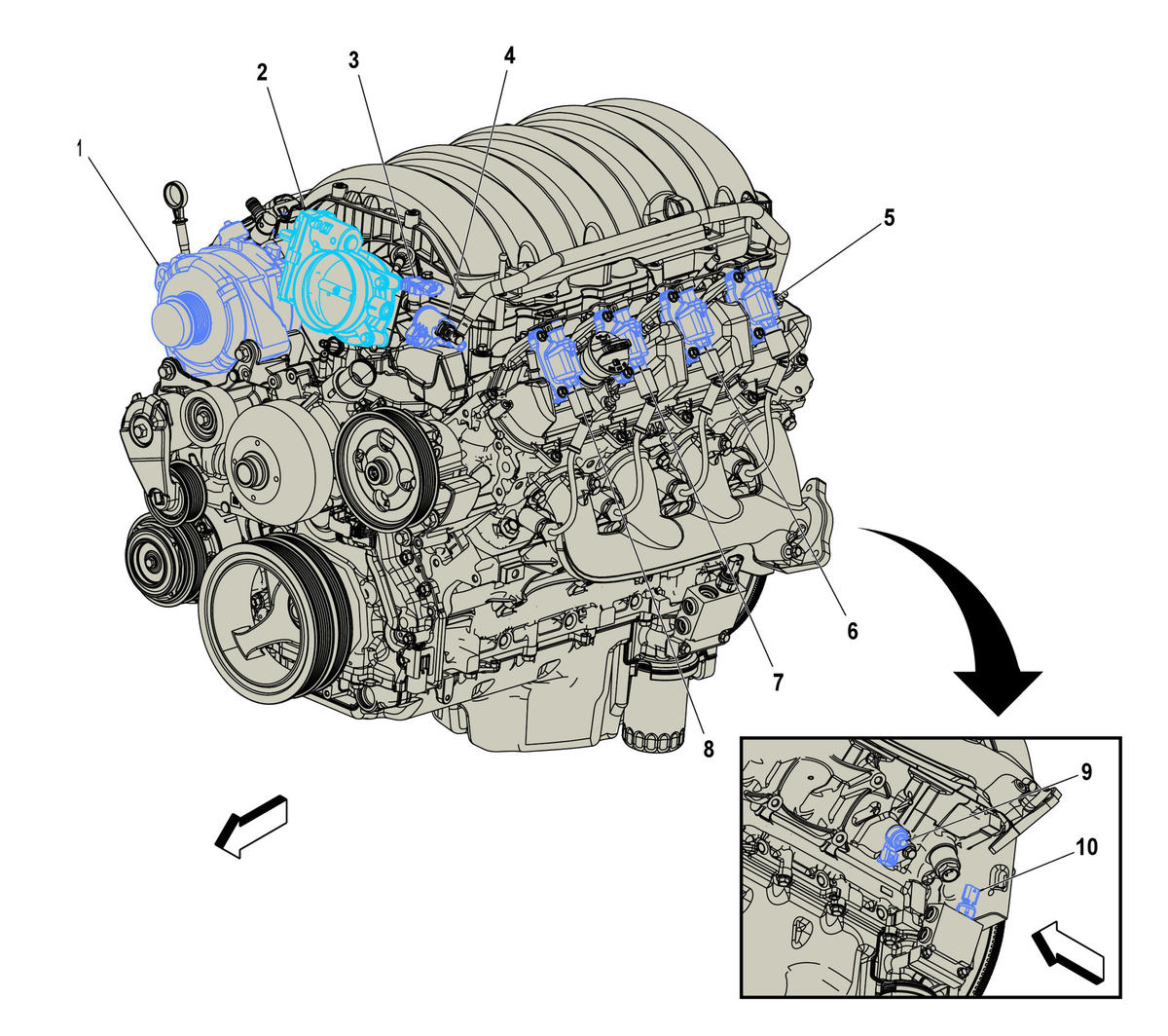

Engine Components - Left Front (L8T)
WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. G13 Generator G13 Generator X1G13 Generator X2 (VYU) |
| 2. Q38 Throttle Body (L8T) Q38 Throttle Body (L5P) |
| 3. B74 Manifold Absolute Pressure Sensor (L8T) B74 Manifold Absolute Pressure Sensor (L8T) |
| 4. Q12 Evaporative Emission Purge Solenoid Valve (L8T) Q12 Evaporative Emission Purge Solenoid Valve (L8T) |
| 5. T8G Ignition Coil 7 (L8T) T8G Ignition Coil 7 (L8T) |
| 6. T8E Ignition Coil 5 (L8T) T8E Ignition Coil 5 (L8T) |
| 7. T8C Ignition Coil 3 (L8T) T8C Ignition Coil 3 (L8T) |
| 8. T8A Ignition Coil 1 (L8T) T8A Ignition Coil 1 (L8T) |
| 9. B68A Knock Sensor 1 (L8T) B68A Knock Sensor 1 (L8T) |
| 10. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (L5P)B37B Engine Oil Pressure Sensor (L8T) |
