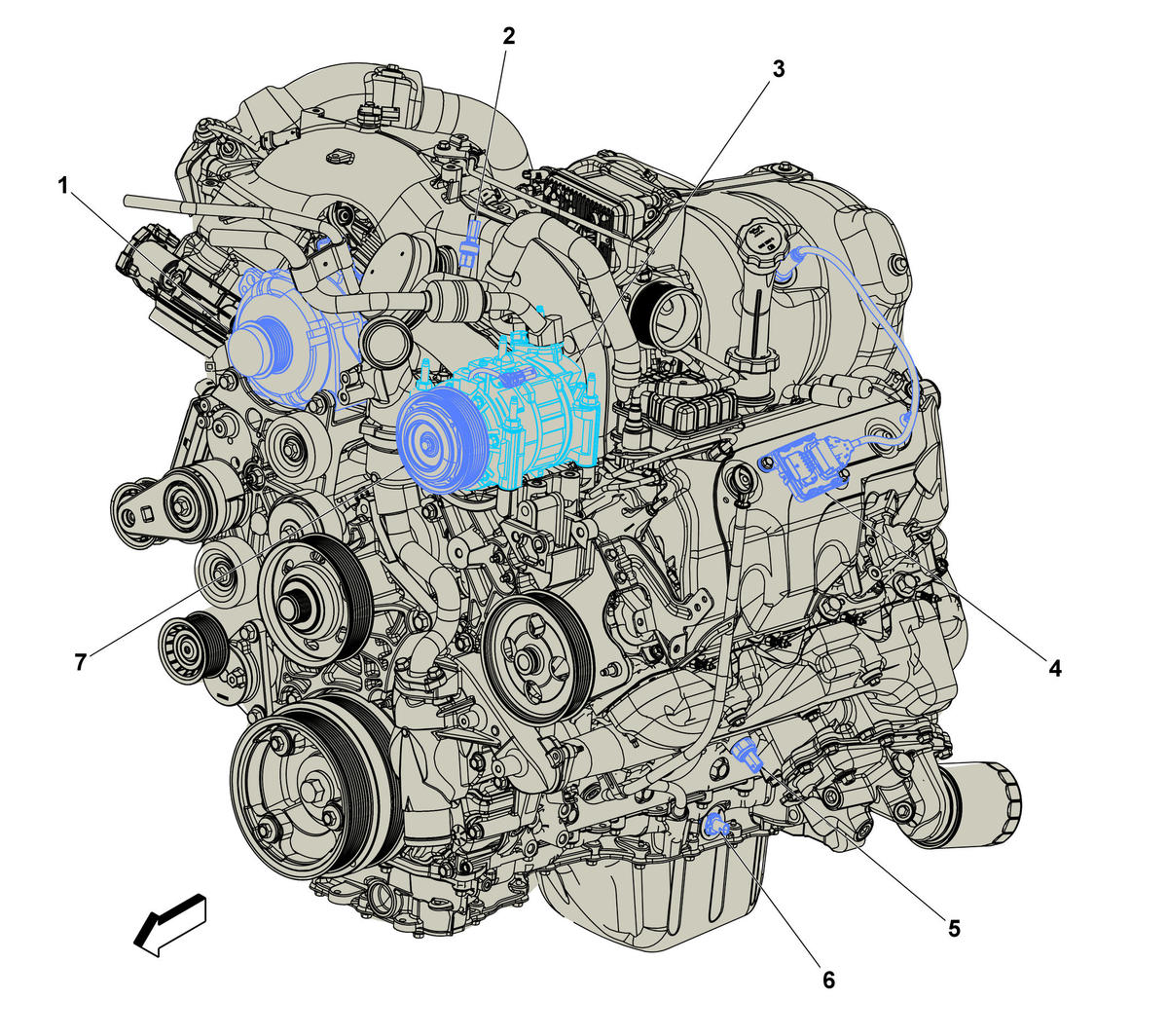

Engine Components - Left Front (L5P)
WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. G13 Generator G13 Generator X1G13 Generator X2 (VYU) |
| 2. B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor |
| 3. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch () |
| 4. B195A Nitrogen Oxides Sensor 1 (L5P) B195A Nitrogen Oxides Sensor 1 (L5P) |
| 5. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (L5P)B37B Engine Oil Pressure Sensor (L8T) |
| 6. B35 Engine Oil Level Switch B35 Engine Oil Level Switch (L5P)B35 Engine Oil Level Switch (L8T) |
| 7. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
