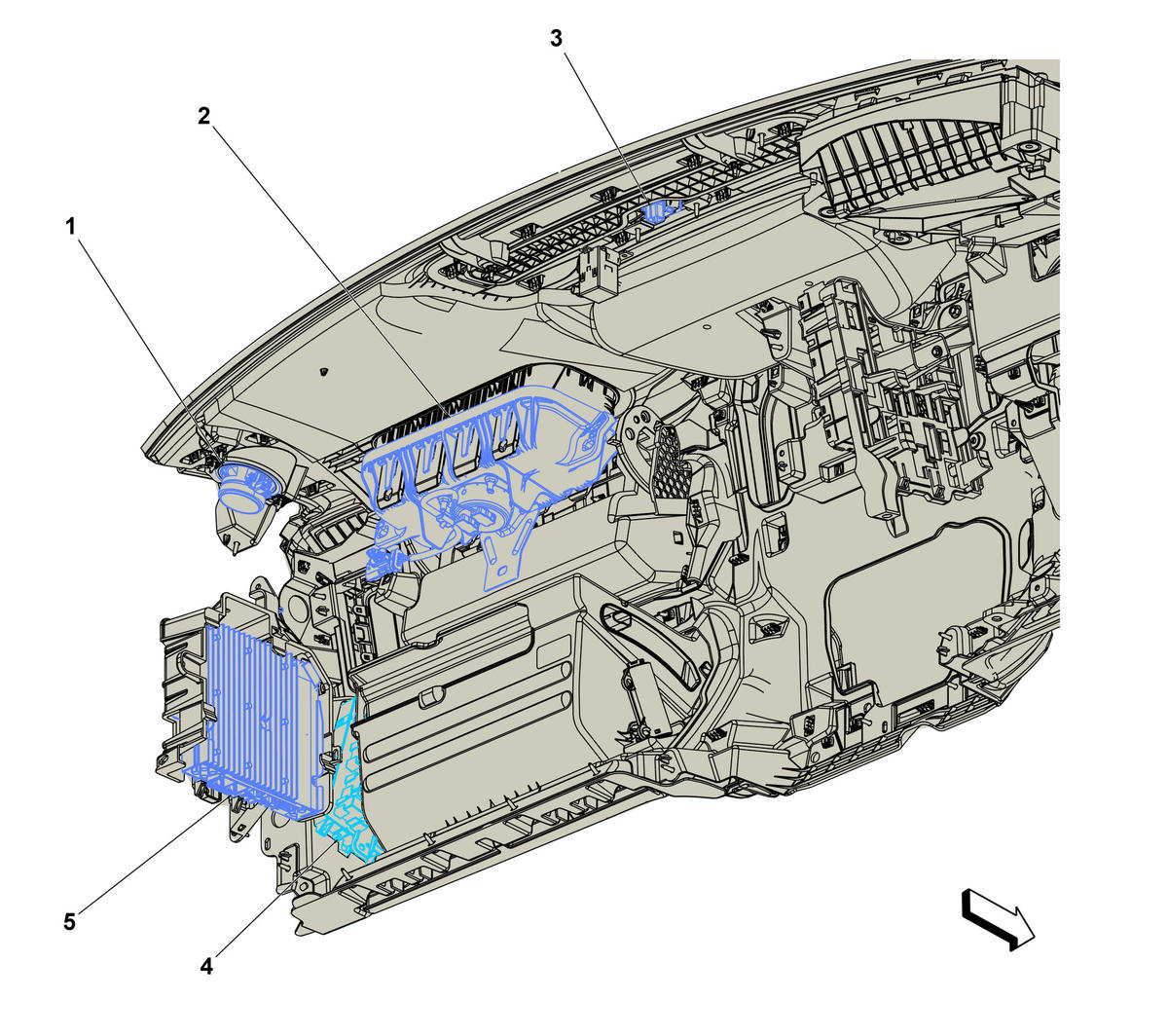

Instrument Panel - Right Rear Components

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel (UQA)P19W Speaker - Right Instrument Panel (UQF/U95)
2. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 F101 Passenger Instrument Panel Air Bag X2
3. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor ()
4. X51R Fuse Block - Instrument Panel Right X51R Fuse Block - Instrument Panel Right X1 ()X51R Fuse Block - Instrument Panel Right X2 ()X51R Fuse Block - Instrument Panel Right X3 ()
5. A11 Radio A11 Radio X1 (IOR)A11 Radio X1 (IOS/IOT)A11 Radio X10 (IOS/IOT)A11 Radio X12 (IOS/IOT)A11 Radio X2 (IOR)A11 Radio X2 (IOS/IOT)A11 Radio X3 (IOR)A11 Radio X3 (IOS/IOT)A11 Radio X4 (IOR)A11 Radio X4 (IOS/IOT)A11 Radio X5 (IOR)A11 Radio X5 (IOS/IOT)A11 Radio X6 (IOR)A11 Radio X6 (IOS/IOT)A11 Radio X7 (IOS/IOT)A11 Radio X8 (IOR)A11 Radio X8 (IOS/IOT)A11 Radio X8 (U2K)A11 Radio X9 (IOS/IOT)A11 Radio X9 (U2K)
