Instrument Panel - Left Rear Components
WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

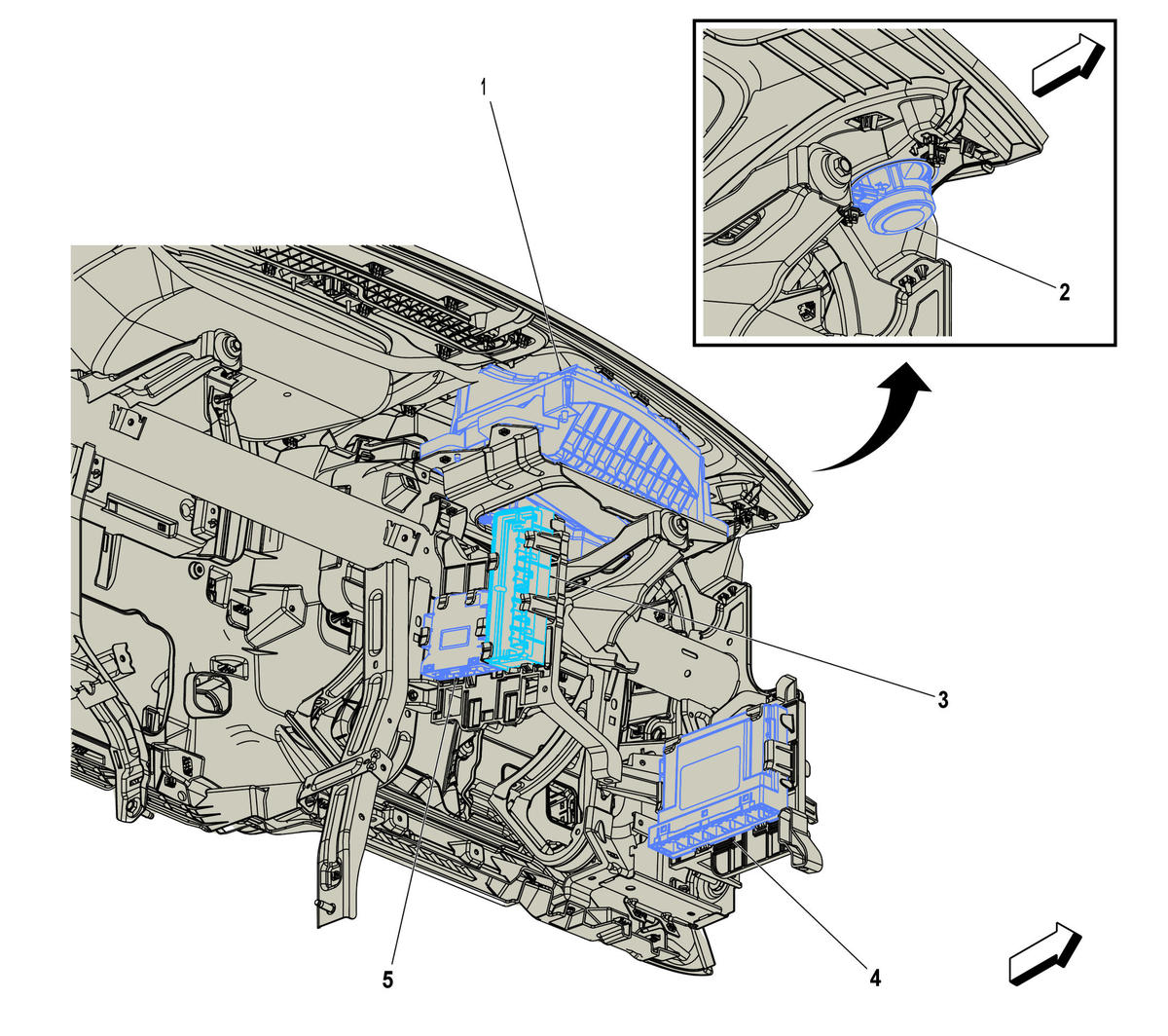

| Items |
|---|
| 1. P29 Head-Up Display (UV6) P29 Head-Up Display X1 (UV6)P29 Head-Up Display X2 (UV6) |
| 2. P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel (UQA)P19J Speaker - Left Instrument Panel (UQF/U95) |
| 3. K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2K33 HVAC Control Module X3K33 HVAC Control Module X4 |
| 4. K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2 ()K9 Body Control Module X3 ()K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7 () |
| 5. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1K56 Serial Data Gateway Module X2 |
