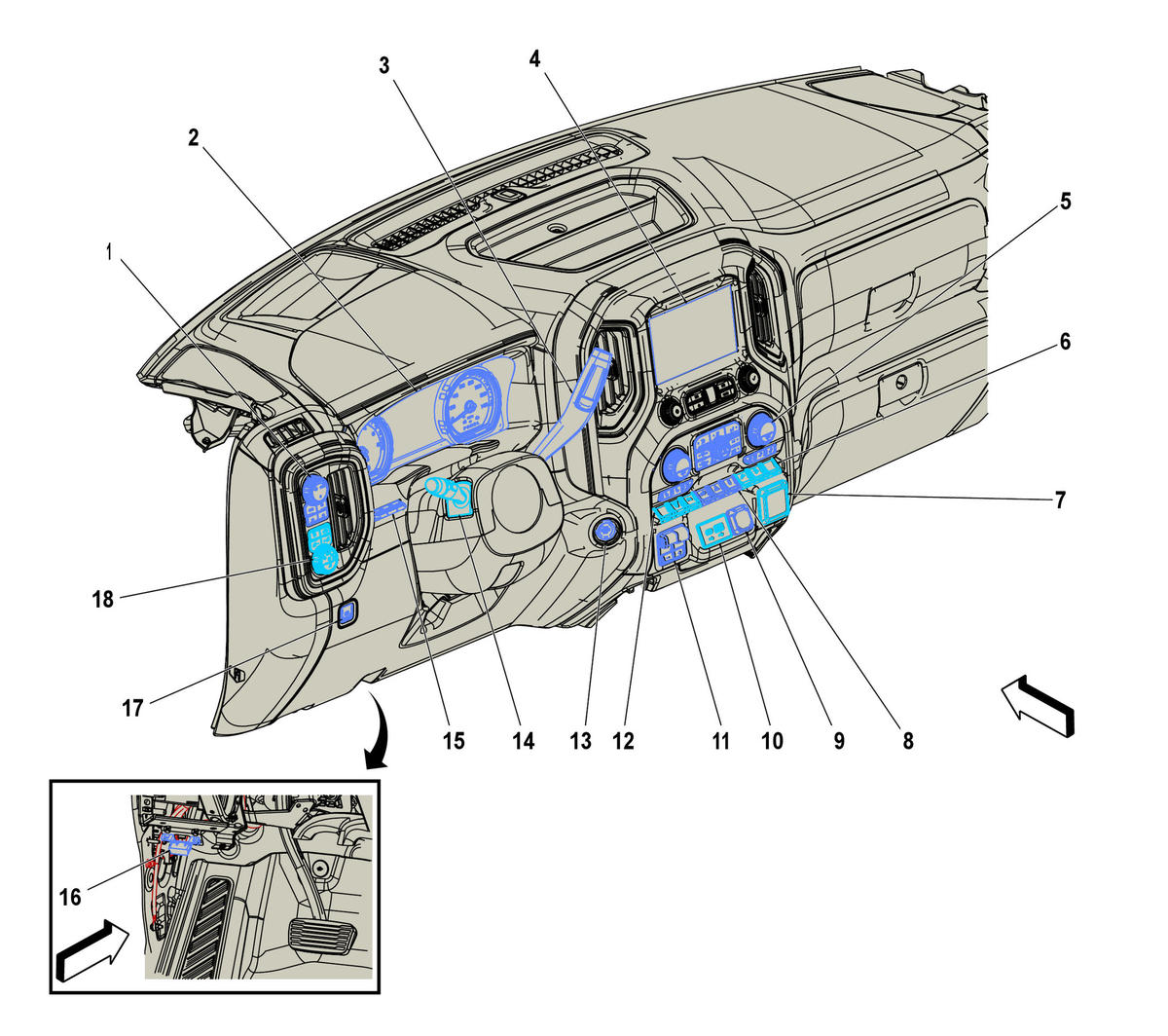

Instrument Panel - Left Front Components

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. S126 Drive Mode Select Switch (URC) S126 Drive Mode Select Switch (URC)
2. P16 Instrument Cluster P16 Instrument Cluster X1 P16 Instrument Cluster X2 (UV6)
3. S3 Transmission Shift Lever S3 Transmission Shift Lever
4. P17 Info Display Module P17 Info Display Module X1 (IOR)P17 Info Display Module X1 (IOS/IOT)P17 Info Display Module X2 (IOS/IOT)
5. A26 HVAC Controls A26 HVAC Controls
6. S171R Instrument Panel Center Accessory Function Switch - Right S171R Instrument Panel Center Accessory Function Switch - Right
7. X81 Accessory Power Receptacle - 110V AC (KI4) X81 Accessory Power Receptacle - 110V AC X1 (KI4)X81 Accessory Power Receptacle - 110V AC X2 (KI4)
8. S86 Vehicle Stability Control Switch S86 Vehicle Stability Control Switch
9. X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel (D09)
10. X92 USB Receptacle X92 USB Receptacle X1 (IOS/IOT)X92 USB Receptacle X2 X92 USB Receptacle X3
11. K133 Trailer Brake Power Control Module (JL1) K133 Trailer Brake Power Control Module (JL1)
12. S171L Instrument Panel Center Accessory Function Switch - Left S171L Instrument Panel Center Accessory Function Switch - Left ()
13. S38 Ignition Mode Switch (BTM) S38 Ignition Mode Switch (BTM)
14. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
15. S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch (UV6)
16. X84 Data Link Connector X84 Data Link Connector
17. S91 Park Brake Control Switch S91 Park Brake Control Switch
18. S30 Headlamp Switch S30 Headlamp Switch
