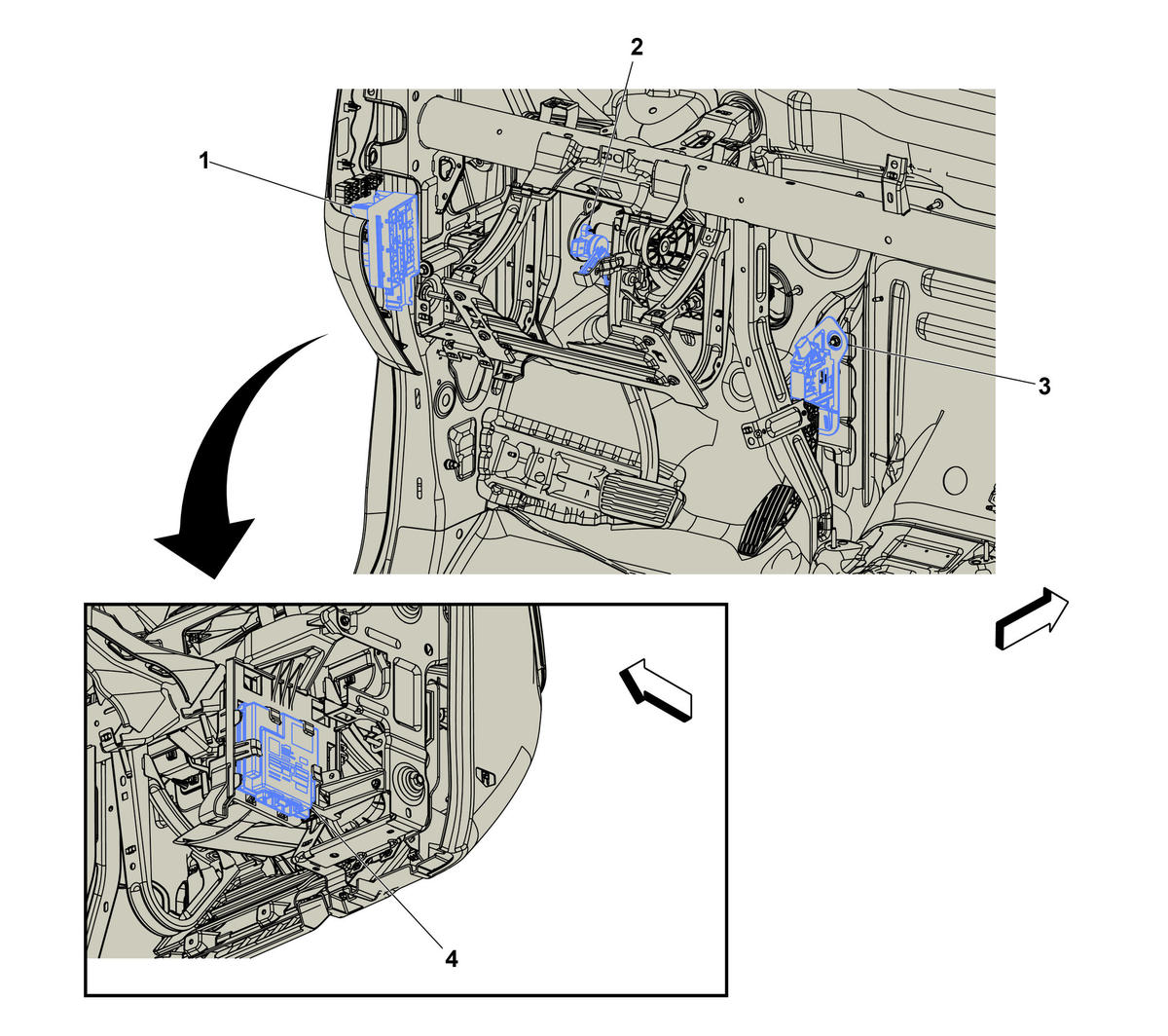

Instrument Panel - Behind Left Side Components
WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X51L Fuse Block - Instrument Panel Left X51L Fuse Block - Instrument Panel Left |
| 2. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor |
| 3. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor |
| 4. K84 Keyless Entry Control Module (BTM) K84 Keyless Entry Control Module X1 (BTM)K84 Keyless Entry Control Module X2 (BTM) |
