Engine Compartment Components - Right Front

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

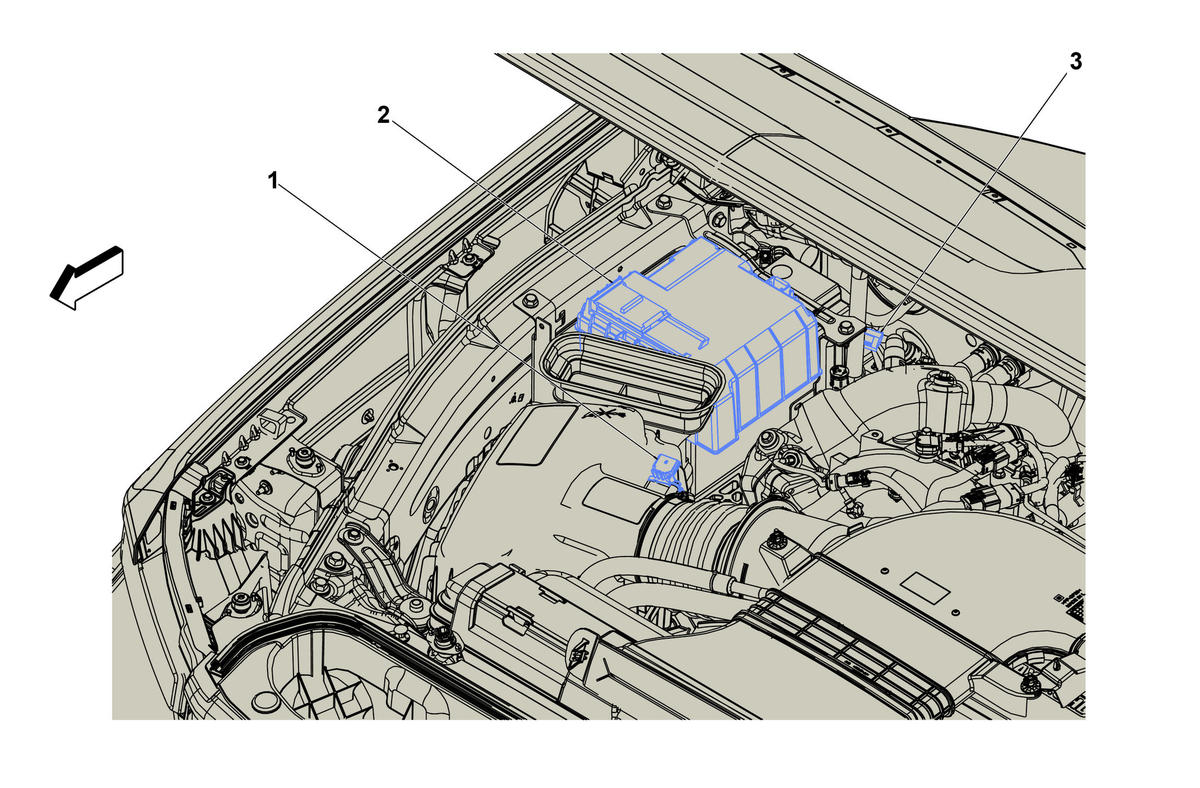

GM5286105Courtesy of GENERAL MOTORS COMPANY
Items
1. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor (L5P)B75C Multifunction Intake Air Sensor (L8T)
2. X50D Fuse Block - Battery X50D Fuse Block - Battery X1 ()X50D Fuse Block - Battery X10 (9L7)X50D Fuse Block - Battery X2X50D Fuse Block - Battery X3X50D Fuse Block - Battery X4X50D Fuse Block - Battery X5X50D Fuse Block - Battery X6X50D Fuse Block - Battery X7 (L5P)X50D Fuse Block - Battery X9
3. B18 Battery Current Sensor B18 Battery Current Sensor
