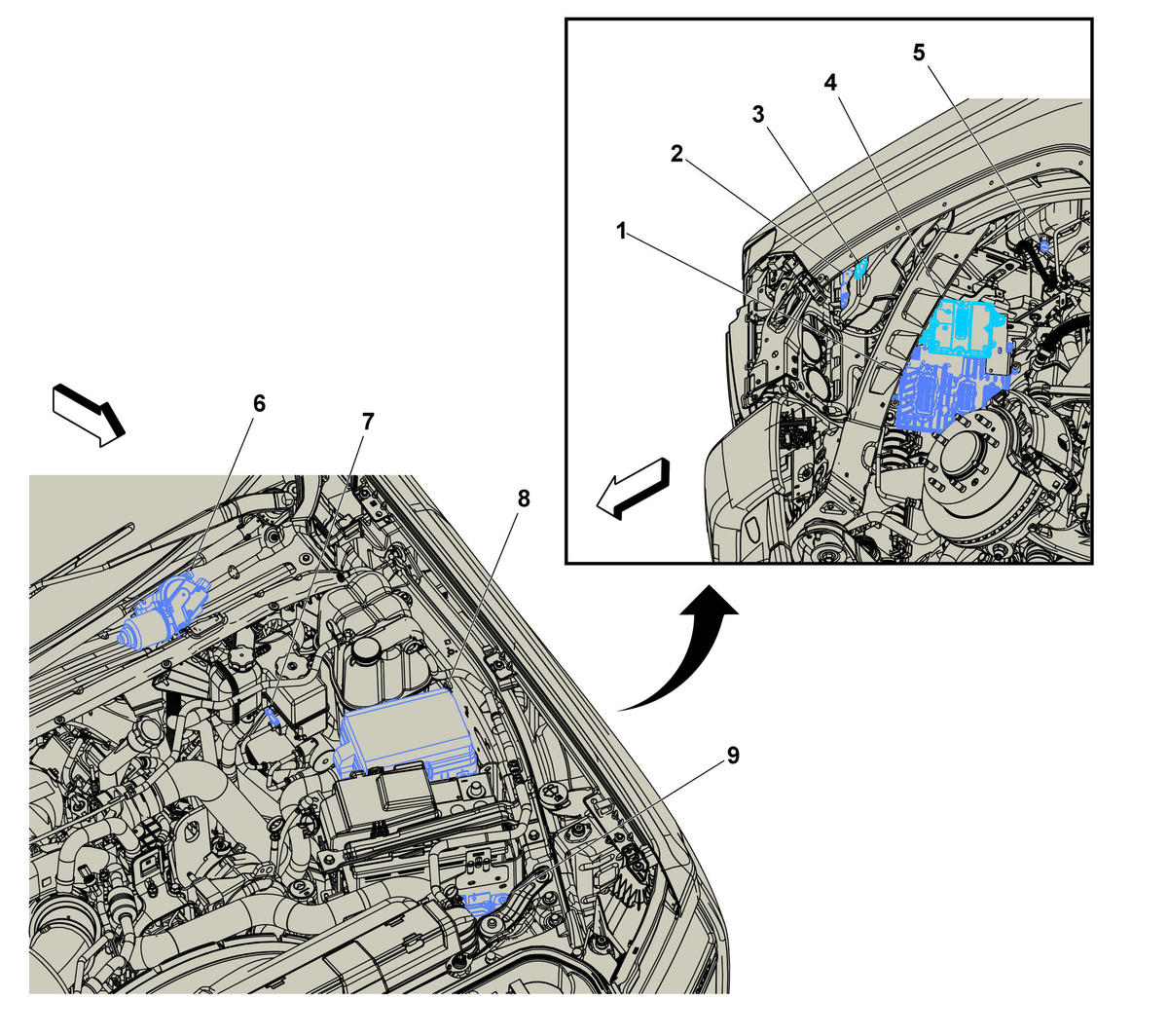

Engine Compartment Components - Left Side
WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. K20 Engine Control Module K20 Engine Control Module X1 (L5P)K20 Engine Control Module X1 (L8T)K20 Engine Control Module X2 (L5P)K20 Engine Control Module X2 (L8T)K20 Engine Control Module X3 (L5P)K20 Engine Control Module X3 (L8T) |
| 2. G24 Windshield Washer Pump G24 Windshield Washer Pump |
| 3. B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch |
| 4. K69 Transfer Case Control Module (NQF/NQH) K69 Transfer Case Control Module (NQH/NQF) |
| 5. B33 Engine Coolant Level Switch (L5P) B33 Engine Coolant Level Switch (L5P) |
| 6. M75 Windshield Wiper Motor M75 Windshield Wiper Motor |
| 7. B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch |
| 8. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2 ()X50A Fuse Block - Underhood X3 ()X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X6 (C32) |
| 9. K71 Transmission Control Module K71 Transmission Control Module (MGM/MGU) |
