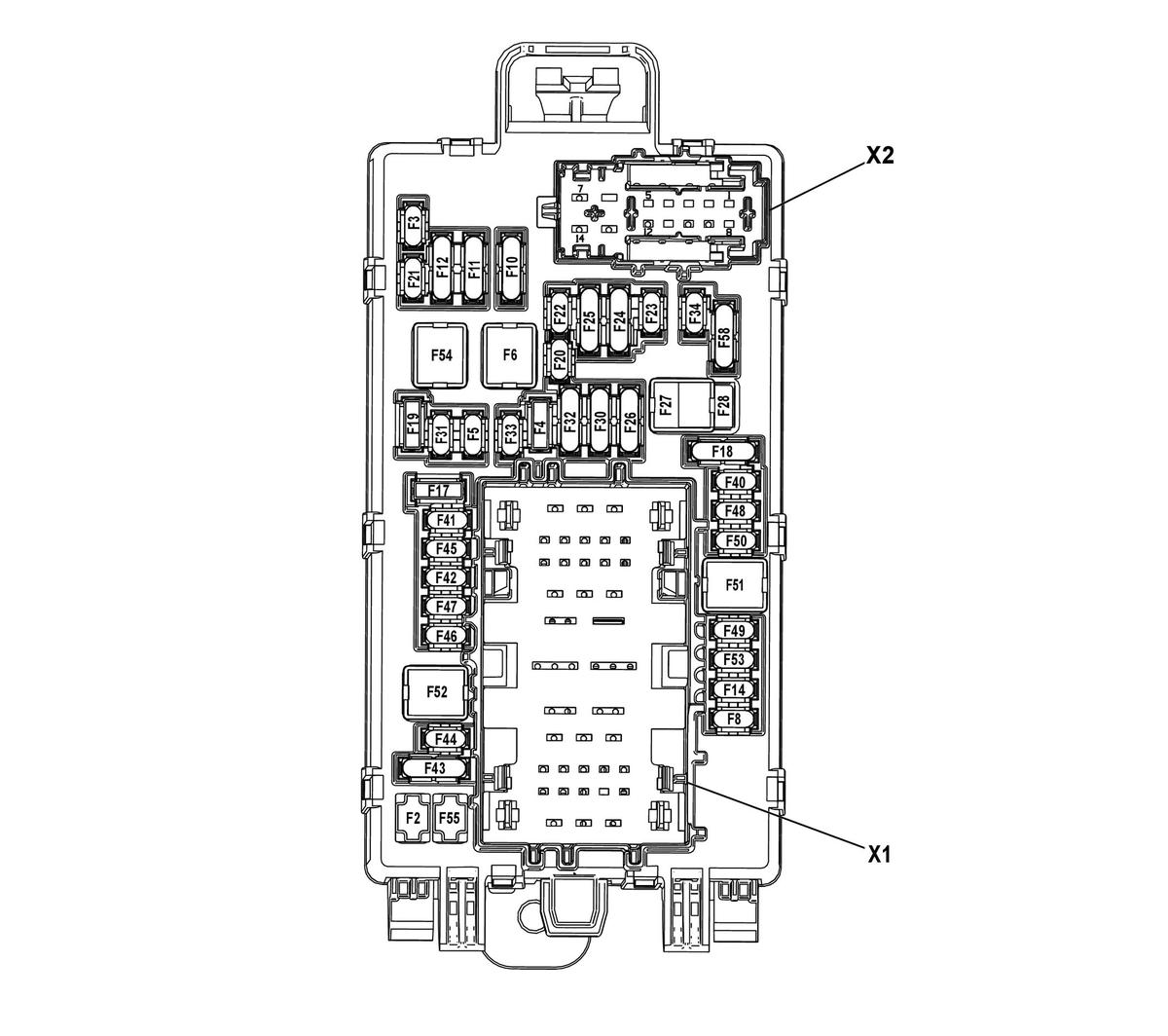

X51R Fuse Block - Instrument Panel Right Top View

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Usage Table

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
F1	RT DOOR	F1DR	30A	M74D Window Motor - Driver (AXG) S79LR Window Switch - Left Rear (AEQ)
F2	LT DOOR	F2DR	30A	M74P Window Motor - Passenger (AEF) S79P Window Switch - Passenger (AED)
F3	UGDO ISRVM	F3DR	10A	A98 Front Overhead Console Assembly E37B Dome/Reading Lamp - 2nd Row (Crew/Extended Cab)
F4	NOT USED	F4DR	2A	Not Used
F5	NOT USED	F5DR	20A	Not Used
F6	FRT BLWR	F6DR	40A	M8 Blower Motor
F8	LUMBAR	F8DR	15A	S65D Seat Lumbar Support Switch - Driver (A2X) S65P Seat Lumbar Support Switch - Passenger (A7K)
F10	BCM6/BCM7	F10DR	15A	K9 Body Control Module
F11	SEAT/CLM LOCK	F11DR	10A	F19DR (-BTM) K40 Seat Memory Control Module (A45) K60 Steering Column Lock Module (BTM)
F12	BCM3/BCM5	F12DR	15A	K9 Body Control Module
F14	MIR/WDO MDL	F14DR	10A	S146 Window/Outside Rearview Mirror Switch - Driver (AXG)
F17	STR WHL CNTRL	F17DR	2A	S70L Steering Wheel Controls Switch - Left (UK3) S70R Steering Wheel Controls Switch - Right (UK3)
F18	VPM/OBS DET	F18DR	10A	B174W Frontview Camera - Windshield (UEU/UHX) K157 Video Processing Control Module (UVI/UV2) K182 Parking Assist Control Module (UD5/UD7)
F19	DLIS	F19DR	2A	S39 Ignition Switch (-BTM)
F20	COOL SEAT	F20DR	15A	M73A Seat Blower Motor - Driver Back (KQV) M73B Seat Blower Motor - Passenger Back (KQV) M73C Seat Blower Motor - Driver Cushion (KQV) M73D Seat Blower Motor - Passenger Cushion (KQV)
F21	NOT R/C	F21DR	10A	K60 Steering Colmn Lock Module (BTM)
F22	HTD WHL	F22DR	7.5A	K32 Steering Wheel Heating Control Module (KI3)
F23	MISC RC	F23DR	10A	B87 Rearview Camera (UVC)
F24	IPC/HUD/CGM ISRVM	F24DR	10A	A10 Inside Rearview Mirror (DD8/DRZ) A98 Front Overhead Console Assembly K56 Serial Data Gateway Module P16 Instrument Cluster P43 Collision Alert Indicators (UHX/UEU)-UV6) S171R Instrument Panel Center Accessory Function Switch - Right
F25	HVAC IGN	F25DR	15A	E40 Electrical Auxiliary Heater (C32)
F26	USB/SEO RAP	F26DR	10A	T22 Mobile Device Wireless Charger Module (K4C) X92B USB Receptacle - Rear Seat (AZ3), X92C USB Receptacle Center Console Rear (D07) X260 (L5P)
F27	APO/RAP	F27DR	50A	CB1DR CB2DR
F28	APO/BATT	F28DR	50A	CB1DR CB2DR
F30	SDM/PRK SW	F30DR	10A	K85 Passenger Presence Module K36 Inflatable Restraint Sensing and Diagnostic Module S76 Trailer Brake Control Switch (JL1)
F31	BCM4	F31DR	20A	K9 Body Control Module
F32	SEO/DLC	F32DR	10A	X84 Data Link Connector
F33	BCM8	F33DR	30A	K9 Body Control Module
F34	CARGO LAMP	F34DR	15A	E2A Marker Lamp - Endgate (QT5/QT6) E6 Center High Mounted Stop Lamp S30 Headlamp Switch
F40	CGM	F40DR	10A	K56 Serial Data Gateway Module
F41	INFO1	F41DR	10A	A26 HVAC Controls P17 Info Display Module (IOS/IOT/(IOR+UIJ)) P29 Head-Up Display (UV6) S32R Seat Heating Switch - Rear (KA6) X83 Auxiliary Audio Input X92 USB Receptacle
F42	TCP	F42DR	10A	K73 Telematics Communication Interface Control Module (UE1)
F43	NOT USED	F43DR	10A	Not Used
F44	NOT USED	F44DR	10A	Not Used
F45	BCM2	F45DR	15A	K9 Body Control Module
F46	HVAC/BATT1	F46DR	10A	K33 HVAC Control Module
F47	IPC/BATT	F47DR	10A	P16 Instrument Cluster
F48	TCM	F48DR	20A	K71 Transmission Control Module (MGM/MGU) Q8 Control Solenoid Valve Assembly (MYD)
F49	BCM1	F49DR	15A	K9 Body Control Module
F50	NOT USED	F50DR	10A	Not Used
F51	BATT1	F51DR	40A	F18DR F40DR F48DR F49DR F58DR
F52	BATT2	F52DR	40A	F17DR F41DR F42DR F44DR F45DR F46DR F47DR
F53	NOT USED	F53DR	10A	Not Used
F54	SUNROOF	F54DR	40A	M69 Sunroof Motor (CF5)
F55	DR PWR SEAT	F55DR	30A	S64D Seat Adjuster Switch - Driver (A2X-A45) K40 Seat Memory Control Module (A45)
F56	DCDC TRANS1	F56DR	40A	Not Used
F57	DCDC TRANS2	F57DR	40A	Not Used
F58	INFO2	F58DR	15A	A11 Radio
