X51L Fuse Block - Instrument Panel Left Top View

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

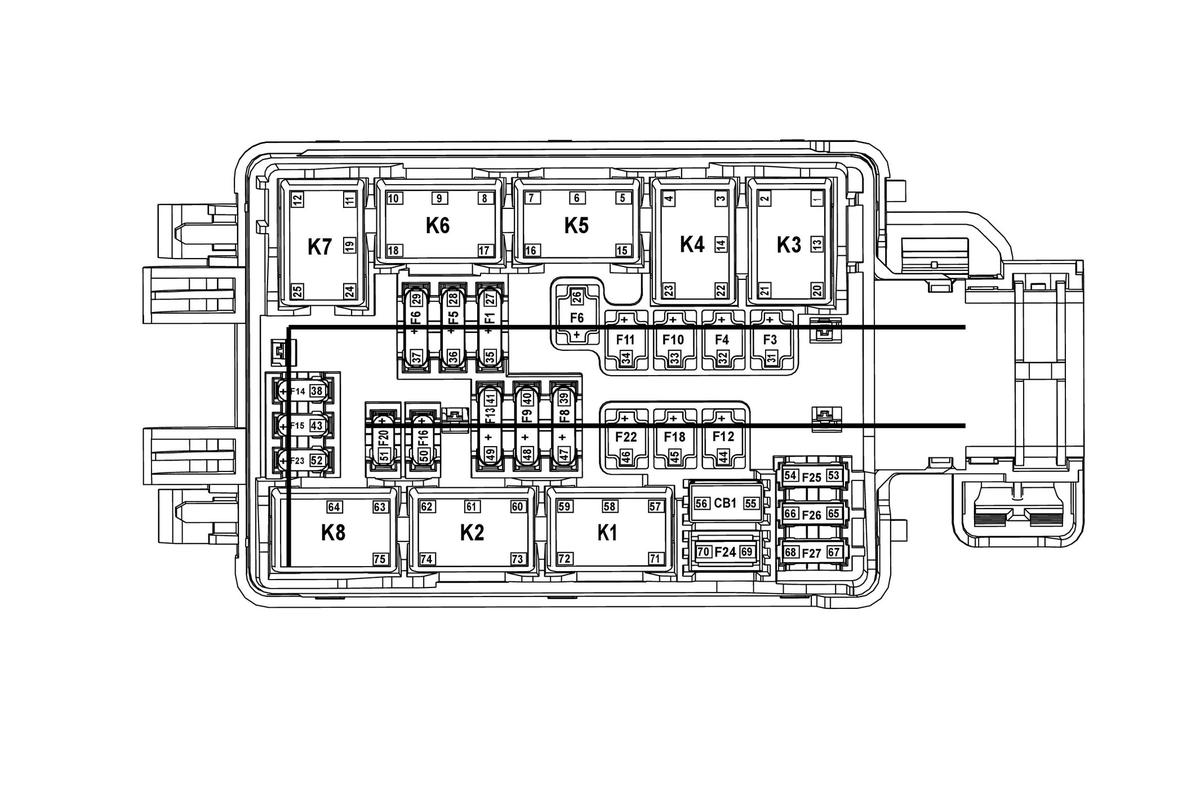

GM5252577Courtesy of GENERAL MOTORS COMPANY
Usage Table

No. Device Label Name Device Assigned Name Rating Description
Fuses
F1 Rear Heated Seats Left/Right F1DL 15A
  • K29R Seat Heating Control Module - Rear (KA6)
F3 Not Used F3DL 30A
  • Not Used
F4 Not Used F4DL 30A
  • Not Used
F5 Not Used F5DL 15A
  • Not Used
F6 Heated and Cooled Seats Left/Right F6DL 15A
  • K29F Seat Heating Control Module - Front (KA1)
F8 Not Used F8DL 10A
  • Not Used
F9 Passive Entry/Passive Start/Driver Seat Module F9DL 10A
  • K84 Keyless Entry Control Module (BTM)
F10 Not Used F10DL 30A
  • Not Used
F11 Not Used F11DL 30A
  • Not Used
F12 Passenger Power Seat F12DL 30A
  • S64P Seat Adjuster Switch - Passenger (A7K)
F13 Export Power Take Off/Special Equipment Option 1 F13DL 15A
  • K44 Power Take-Off Control Module (PTO)
  • X176 (PTO)
F14 Not Used F14DL 30A
  • Not Used
F15 Not Used F15DL 15A
  • Not Used
F16 AMP F16DL 30A
  • T3 Audio Amplifier (UQA)
F17 MFEG F17DL 15A
  • KR191L Pickup Box Endgate Latch Relay - Left (QT5)
  • KR192L Pickup Box Auxiliary Endgate Latch Relay - Left (QK2+QT5)
F18 Not Used F18DL 30A
  • Not Used
F20 Endgate F20DL 30A
  • K194 Pickup Box Endgate Control Module (QT6)
F22 Rear sliding window F22DL 30A
  • KR8A Sliding Rear Window Close Relay (A48)
  • KR8B Sliding Rear Window Open Relay (A48)
F23 Not Used F23DL 15A
  • Not Used
F24 Not Used F24DL 10A
  • Not Used
F25 Not Used F25DL 10A
  • Not Used
F26 Not Used F26DL 10A
  • Not Used
F27 Not Used F27DL 10A
  • Not Used
Circuit Breakers
CB1 Spare CB1DL 10A
  • Not Used
Relays
K1 Rear sliding window open KR8B -
  • M63 Sliding Rear Window Motor (A48)
K2 Rear sliding window close KR8A -
  • M63 Sliding Rear Window Motor (A48)
K3 MFEG Major 1 MFEG1A -
  • A99L Pickup Box Endgate Latch - Left (QK2)
  • A99R Pickup Box Endgate Latch - Right (QK2)
  • Pickup Box Endgate Latch (QK1)
K4 MFEG Minor 1 MFEG1B -
  • A99L Pickup Box Endgate Latch - Left (QK2)
  • A99R Pickup Box Endgate Latch - Right (QK2)
  • Pickup Box Endgate Latch (QK1)
K5 MFEG Minor 2 MFEG2B -
  • A100L Pickup Box Auxiliary Endgate Latch - Left (QK2)
  • A100R Pickup Box Auxiliary Endgate Latch - Right (QK2)
K6 MFEG Major 2 MFEG2A -
  • A100L Pickup Box Auxiliary Endgate Latch - Left (QK2)
  • A100R Pickup Box Auxiliary Endgate Latch - Right (QK2)
K7 Theft - -
  • Not Used
K8 Not Used - -
  • Not Used
